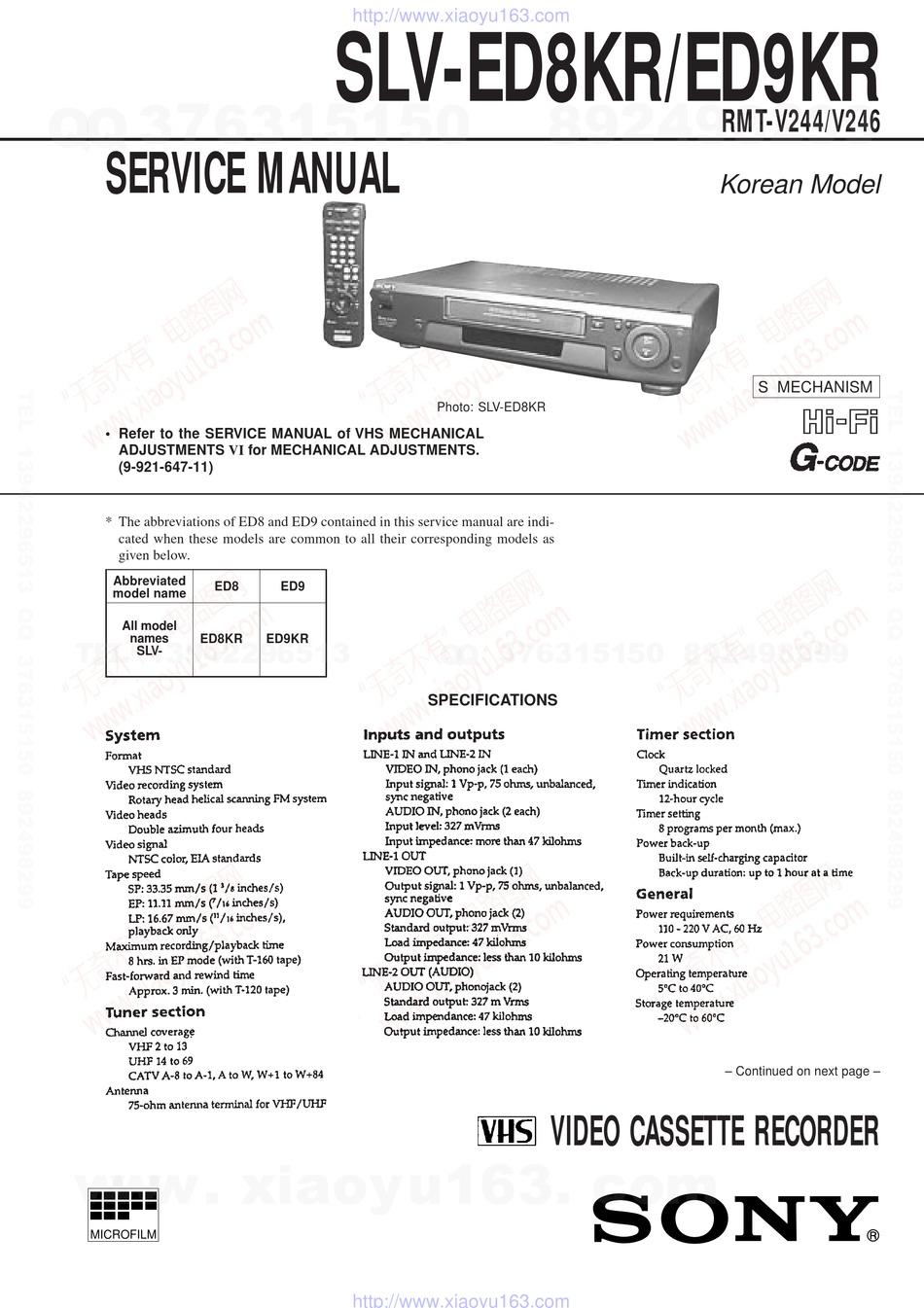

3 7 63 1515 0 RMT-V244/V246 SERVICE MANUAL Korean Model S MECHANISM Photo: SLV-ED8KR • Refer to the SERVICE MANUAL of VHS MECHANICAL ADJUSTMENTS VI for MECHANICAL ADJUSTMENTS. (9-921-647-11) * The abbreviations of ED8 and ED9 contained in this service manual are indi- cated when these models are common to all their corresponding models as given below.
Page 2
LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY.
http://www.xiaoyu163.com 3 7 63 1515 0 TABLE OF CONTENTS Section Title Page Section Title Page SERVICE NOTE ..............4 INTERFACE, IC PIN FUNCTION DESCRIPTION 5-1. System Control-Video Block Interface GENERAL (MA-325 board IC161) ..........5-1 5-2. System Control-Servo Peripheral Circuit Interface Getting Started ..............
http://www.xiaoyu163.com 3 7 63 1515 0 SERVICE NOTE 1. DISASSEMBLY • This set can be disassembled in the order shown below. Note: Pages in indicated pages in the SERVICE MANUAL. Pages in indicated pages in the VHS MECHANICAL ADJUSTMENT MANUAL VI. Upper case (Page 2-1) Front Panel...
SLV-ED8/ED9 SECTION 1 This section is extracted from SLV-ED8KR 3 7 63 1515 0 GENERAL instruction manual (3-861-812-11). L 13942296513 u163 http://www.xiaoyu163.com...
http://www.xiaoyu163.com SLV-ED8/ED9 SECTION 4 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 3 7 6 3 1 5 1 5 0 For schematic Diagram: THIS NOTE IS COMMON FOR PRINTED WIRING • Caution when replacing chip parts. BOARDS AND SCHEMATIC DIAGRAMS. New parts must be attached after removal of chip. (In addition to this, the necessary mote is printed Be careful not to heat the minus side of tantalum capacitor, in each block.)
Page 35
http://www.xiaoyu163.com SLV-ED8/ED9 MA-325 (VIDEO, AUDIO, I/O, SERVO/SYSTEM CONTROL, TUNER) PRINTED WIRING BOARD 3 7 6 3 1 5 1 5 0 – Ref. No.: MA-325 board; 2,000 series – There are few cases that the part isn't mounted in this model is printed on this diagram. LINE-1 IN/OUT RF UNIT AUDIO...
http://www.xiaoyu163.com SLV-ED8/ED9 MA-325 (SERVO CONTROL) SCHEMATIC DIAGRAM • See page 4-9 to 4-10 for printed wiring board. 3 7 6 3 1 5 1 5 0 – Ref. No.: MA-325 board; 2,000 series – 1 3 9 4 2 2 9 6 5 1 3 w w w Note: The components identified by mark ! or dotted line with mark ! are critical for safety.
Page 45
http://www.xiaoyu163.com SLV-ED8/ED9 MA-325 (TUNER) SCHEMATIC DIAGRAM • See page 4-9 to 4-10 for printed wiring board. 3 7 6 3 1 5 1 5 0 – Ref. No.: MA-325 board; 2,000 series – 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 TUNER...
Page 46
http://www.xiaoyu163.com SLV-ED8/ED9 NK-11 (KOREAN STEREO) PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM 3 7 6 3 1 5 1 5 0 – Ref. No.: NK-11 board; 1,000 series – There are few cases that the part isn't mounted in this model is printed on this diagram. NK-11 NK-11 BOARD(SIDE A)
Page 47
http://www.xiaoyu163.com SLV-ED8/ED9 DM-77 (MODE CONTROL), IO-64 (FRONT IN) PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 3 7 6 3 1 5 1 5 0 – Ref. No.: DM-77 board, IO-64 board; 1,000 series – There are few cases that the part isn't mounted in this model is printed on this diagram. BOARD PAUSE (12)
Page 48
http://www.xiaoyu163.com SLV-ED8/ED9 FR-137 (FL DRIVE, MODE CONTROL), SW-307 (POWER SWITCH) PRINTED WIRING BOARDS 3 7 6 3 1 5 1 5 0 – Ref. No.: FR-137 board, SW-307 board; 1,000 series – There are few cases that the part isn't mounted in this model is printed on this diagram. FR-137 BOARD ONE TOUCH...
Page 50
http://www.xiaoyu163.com SLV-ED8/ED9 PS-414 (POWER SUPPLY) PRINTED WIRING BOARD 3 7 6 3 1 5 1 5 0 – Ref. No.: PS-414 board; 1,000 series – There are few cases that the part isn't mounted in this model is printed on this diagram. PS-414 BOARD 1 3 9 4 2 2 9 6 5 1 3...
Page 51
http://www.xiaoyu163.com SLV-ED8/ED9 PS-414 (POWER SUPPLY) SCHEMATIC DIAGRAM 3 7 6 3 1 5 1 5 0 – Ref. No.: PS-414 board; 1,000 series – 1 3 9 4 2 2 9 6 5 1 3 Note: The components identified by mark ! or dotted line with mark ! are critical for safety.
Page 52
http://www.xiaoyu163.com SLV-ED8/ED9 SR-718 (SWITCHING REGULATOR) PRINTED WIRING BOARD 3 7 6 3 1 5 1 5 0 – Ref. No.: SR-718 board; 4,000 series – There are few cases that the part isn't mounted in this model is printed on this diagram. SR-718 BOARD 1 3 9 4 2 2 9 6 5 1 3 CN101...
http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 5-4. SYSTEM CONTROL – SYSTEM CONTROL PERIPHERAL CIRCUIT INTERFACE (MA-325 BOARD IC161) Signal Pin No. I/O Level MA-325 ASURA RESET Normally “H”, “L” when service interruption is detected or restored IC161$º...
http://www.xiaoyu163.com 5-6. SERVO/SYSTEM CONTROL MICROPROCESSOR PIN FUNCTION (MA-325 BOARD IC161) 3 7 6 3 1 5 1 5 0 Pin No. Pin Name Function Pin No. Pin Name Function RF SWP RF switching pulse output – Not used AF REC P “L”...
http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 5-7. TIMER/TUNER CONTROL MICROPROCESSOR PIN FUNCTION (FR-137 BOARD IC301) Pin No. Pin Name Function Pin No. Pin Name Function – Not used (UNSW 5V) SEG8 Segment terminal 8 POWER FAIL Power failure detect signal input SEG9 Segment terminal 9...
Page 59
http://www.xiaoyu163.com 5-8. KOREAN STEREO PROCESSOR PIN FUNCTION (NK-11 BOARD IC1) 3 7 6 3 1 5 1 5 0 Pin. No. Pin Name Function OUTL Analog output left OUTR Analog output right VDDA1 – Analog power supply; DAC circuitry VSSA1 –...
http://www.xiaoyu163.com SLV-ED8/ED9 SECTION 6 3 7 63 1515 0 ERROR CODES Table 6-2. Mechanism position list This set displays an error code, and a mode code in case of error on the display tube, if the operation stopped by error. Code Position VTR status...
5) Input data on Page 0 as following table. Video output VIDEO LINE OUT (75 Ω) Page Adress Fig. 7-3-1 SLV-ED8KR Data SLV-ED9KR 6) Turn off the Power. 7) Disconnect the adjustment remote and LANC jig from the connector. 8) Disconnect the connector from FR-137 board.
http://www.xiaoyu163.com 3 7 63 1515 0 3-1-3. Set-up of Adjustment 3-1-6. Adjusting Sequence In this adjustment, NTSC pattern generator is connected with LINE Make the electrical adjustment in the following sequence. input signal terminal. When check to tuner, connected AERIAL terminal.
http://www.xiaoyu163.com 3 7 63 1515 0 3-3. SERVO SYSTEM ADJUSTMENT 3-4. AUDIO SYSTEM ADJUSTMENTS • Adjust both Lch and Rch. 3-3-1. RF Switching Position Adjustment (MA-325 Board) [Connection] Purpose: Adjust the interval between A ch and B ch of tape playback out- Audio Audiolevel meter or generator...
http://www.xiaoyu163.com 3 7 63 1515 0 3. Overall Level Characteristic and Distortion Factor Check RF SWP Purpose: Check the record level, play level, and distortion factor against the reference input. Mode REC and PB (SP mode) Signal 400 Hz, –7.5 dBs Measurement point Audio output terminal Measurement equipment...
http://www.xiaoyu163.com 3 7 6 3 1 5 1 5 0 3-4-2. Normal Audio System Adjustment 4. Overall Level Characteristic and Distortion Factor 3-6. PARTS ARRANGEMENT DIAGRAM FOR ADJUSTMENTS • Make adjustment in the SP mode, unless otherwise specified. Check Use a normal VHS cassette for an adjustment tape. Purpose: MA-325 BOARD (Side A) •...
http://www.xiaoyu163.com 3 7 63 1515 0 8-1-3. CHASSIS ASSEMBLY supplied supplied L 13942296513 supplied supplied The components identified by mark ! or dotted line with mark ! are criti- cal for safety. Replace only with part number speci- fied. Ref. No. Part No.
http://www.xiaoyu163.com DM-77 FR-137 3 7 63 1515 0 8-2. ELECTRICAL PARTS LIST NOTE: The components identified by • Due to standardization, replacements in the • Items marked “*” are not stocked since they mark ! or dotted line with mark parts list may be different from the parts speci- are seldom required for routine service.
Page 73
http://www.xiaoyu163.com FR-137 3 7 63 1515 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C341 1-164-004-11 CERAMIC CHIP 0.1uF R305 1-216-049-00 METAL CHIP 1/10W < CONNECTOR > R306 1-216-089-00 METAL CHIP 1/10W R307 1-216-049-00 METAL CHIP 1/10W CN302 1-691-036-21 HOUSING, CONNECTOR 4P (ED9)
