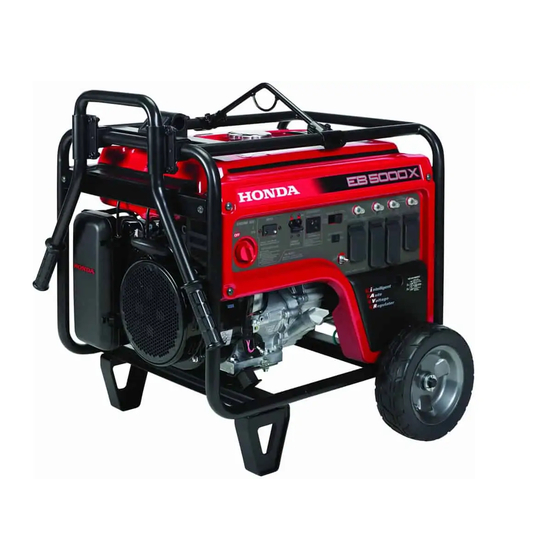

Owner's Manual
GENERATOR
EB4000X • EB5000X • EB6500X
Click to Save As
See page 84 for
Initial Use Instructions
© 2015 Honda Motor Co., Ltd.—All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB4000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Honda EB4000 Series

Summary of Contents for Honda EB4000 Series

  • Page 1 Owner’s Manual GENERATOR EB4000X • EB5000X • EB6500X Click to Save As See page 84 for Initial Use Instructions © 2015 Honda Motor Co., Ltd.—All Rights Reserved...
  • Page 2 The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to discontinue or change specifications or design at any time without notice and without incurring any obligation whatsoever.
  • Page 3 When your generator needs scheduled maintenance, keep in mind that your Honda servicing dealer is specially trained in servicing Honda generators and is supported by the parts and service divisions of American Honda. Your Honda servicing dealer is dedicated to your satisfaction and will be pleased to answer your questions and concerns.
  • Page 4 A FEW WORDS ABOUT SAFETY Your safety and the safety of others are very important. And using this generator safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual.

  • Page 5: Table Of Contents

    CONTENTS GENERATOR SAFETY ................6 IMPORTANT SAFETY INFORMATION ..........6 Operator Responsibility..............6 Carbon Monoxide Hazards..............6 Electric Shock Hazards ..............7 Fire and Burn Hazards ...............7 Refuel With Care ................8 SAFETY LABEL LOCATIONS..............9 CONTROLS & FEATURES...............10 COMPONENT & CONTROL LOCATIONS...........10 CONTROLS...................12 Engine Switch ..................12 Starter Grip..................12 Fuel Valve Lever................13 Voltage Selector Switch ..............13...
  • Page 6 CONTENTS OPERATION .....................25 SAFE OPERATING PRECAUTIONS.............25 STARTING THE ENGINE ..............26 STOPPING THE ENGINE ..............29 GFCI OPERATION CHECK ..............30 GFCI System (120V-30A, 120V/240V-30A, 120V/240V-37.5A Receptacles)..31 GFCI System (120V-20A Duplex Receptacle) ......33 AC OPERATION..................35 AC Applications................37 AC Receptacle Selection..............38 Power Producing Circuits..............38 Voltage Selector Switch ..............39 AUTO THROTTLE SYSTEM..............41 STANDBY POWER ................42...
  • Page 7 Carburetor Modification for High Altitude Operation....69 Emission Control System Information...........70 Air Index ...................72 Specifications ...................73 Wiring Diagram................74 CONSUMER INFORMATION ..............76 Dealer Locator Information .............76 Honda Publications................76 Customer Service Information............77 ASSEMBLY ....................78 SAFETY....................78 The Importance of Proper Assembly ..........78 Important Safety Precautions ............79 ASSEMBLY...................80 Unpacking..................80...

  • Page 8: Generator Safety

    GENERATOR SAFETY IMPORTANT SAFETY INFORMATION Honda generators are designed for use with electrical equipment that has suitable power requirements. Other uses can result in injury to the operator or damage to the generator and other property. Most injuries or property damage can be prevented if you follow all instructions in this manual and on the generator.

  • Page 9: Electric Shock Hazards

    GENERATOR SAFETY Electric Shock Hazards • The generator produces enough electric power to cause a serious shock or electrocution if misused. • Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution.

  • Page 10: Refuel With Care

    GENERATOR SAFETY Refuel With Care Gasoline is extremely flammable, and gasoline vapor can explode. Do not refuel during operation. Allow the engine to cool if it has been in operation. Refuel only outdoors in a well-ventilated area and on a level surface. Never smoke near gasoline, and keep other flames and sparks away.

  • Page 11: Safety Label Locations

    GENERATOR SAFETY SAFETY LABEL LOCATIONS These labels warn you of potential hazards that can cause serious injury. Read them carefully. If a label comes off or becomes hard to read, contact your Honda generator dealer for a replacement.

  • Page 12: Controls & Features

    CONTROLS & FEATURES COMPONENT & CONTROL LOCATIONS Use the illustrations on these pages to locate and identify the most frequently used controls. AC CIRCUIT PROTECTORS VOLTAGE SELECTOR SWITCH RECEPTACLES GFCI TEST BUTTON GFCI RESET BUTTON ENGINE SWITCH <EB4000X> GFCI RECEPTACLES GROUND TERMINAL AUTO THROTTLE SWITCH...
  • Page 13 CONTROLS & FEATURES FUEL TANK CAP CONTROL PANEL AIR CLEANER FUEL VALVE LEVER SEDIMENT CUP STARTER GRIP OIL FILLER CAP/DIPSTICK OIL DRAIN PLUG LIFTING HANGER HANDLE FUEL GAUGE SPARK PLUG STAND WHEEL MUFFLER MANUAL CHOKE LEVER...

  • Page 14: Controls

    CONTROLS & FEATURES CONTROLS Engine Switch The engine switch controls the ignition system. OFF – Stops the engine. ON – Running position, and for starting. ENGINE SWITCH Starter Grip Pulling the starter grip operates the recoil starter to crank the engine.

  • Page 15: Fuel Valve Lever

    CONTROLS & FEATURES Fuel Valve Lever The fuel valve lever is located between the fuel tank and carburetor. The fuel valve must be in the ON position for the engine to run. After stopping the engine, turn the fuel valve to the OFF position. FUEL VALVE LEVER Voltage Selector Switch The voltage selector switch switches generator output to produce...

  • Page 16: Auto Throttle System

    CONTROLS & FEATURES ® Auto Throttle System ® The Auto Throttle system automatically reduces engine speed when all loads are turned off or disconnected. When appliances are turned on or reconnected, the engine returns to the rated speed. Switch Position Recommended to minimize fuel consumption and further reduce noise levels when no load is applied to the generator.

  • Page 17: Ac Circuit Protectors

    CONTROLS & FEATURES AC Circuit Protectors The AC circuit protectors will automatically switch OFF if there is a short circuit or a significant overload of the generator at each receptacle. If an AC circuit protector switches OFF automatically, check that the appliance is working properly and does not exceed the rated load capacity of the circuit before resetting the AC circuit protector ON.

  • Page 18: Ac Circuit Breaker

    CONTROLS & FEATURES AC Circuit Breaker The AC circuit breaker will automatically switch OFF in the following cases. • If there is a short circuit or a significant overload at the receptacles. • If there is a ground-fault current from either receptacles A or B. The AC circuit breaker may be used to switch the generator power ON or OFF .

  • Page 19: Ground Fault Circuit Interrupter (Gfci)

    CONTROLS & FEATURES Ground Fault Circuit Interrupter (GFCI) This generator has two types of Ground Fault Circuit Interrupter (GFCI) systems, GFCI system and GFCI system GFCI System 120V-30A, 120V/240V-20A (EB4000X), 120V/240V-30A (EB5000X, EB6500X) RECEPTACLES If there is a ground-fault current from either A or B receptacle, it will shut off the power to receptacles A and B.
  • Page 20 CONTROLS & FEATURES All receptacles on the generator are protected by a Ground Fault Circuit Interrupter (GFCI) for protection against the shock hazard of ground-fault current. An example of ground-fault current is the current that would flow through a person who is using an appliance with faulty insulation and, at the same time, is in contact with an electrical ground such as a plumbing fixture, wet floor, or earth.

  • Page 21: Folding Handle

    CONTROLS & FEATURES Folding Handle The foldable handle is intended for ease of transportation and should be folded when the generator is stationary. Do not rest objects on the extended handle. To Extend The Handle Lift handle upward. Lock lever will lock and secure the handle into place.

  • Page 22: Features

    If the engine stops, make sure the oil level is correct. Wait a few minutes, and then try to restart the engine. If the engine still won’t start, take the generator to your authorized servicing Honda power equipment dealer.

  • Page 23: Auto Choke And Throttle Control System

    CONTROLS & FEATURES Auto Choke and Throttle Control System The ECM of this engine controls the choke valve and throttle automatically. When starting and warming up the engine, you do not need to operate the choke lever unless the engine is hard to start using the normal starting procedure.

  • Page 24: Fuel Gauge

    CONTROLS & FEATURES Fuel Gauge The fuel gauge is a mechanical device that measures the fuel level in the tank. The red indicator in the window will reference the level in relation to full or empty. To provide increased operating time, start with a full tank before beginning operation.

  • Page 25: Before Operation

    BEFORE OPERATION ARE YOU READY TO GET STARTED? Your safety is your responsibility. A little time spent in preparation will significantly reduce your risk of injury. Knowledge Read and understand this manual. Know what the controls do and how to operate them. Familiarize yourself with the generator and its operation before you begin using it.

  • Page 26: Check The Engine

    BEFORE OPERATION To prevent a possible fire, keep the generator at least 3 feet (1 meter) away from building walls and other equipment during operation. Do not place flammable objects close to the engine. Before beginning your pre-operation checks, be sure the generator is on a level surface and the engine switch is in the OFF position.

  • Page 27: Operation

    OPERATION SAFE OPERATING PRECAUTIONS Before operating the generator for the first time, review chapters GENERATOR SAFETY BEFORE OPERATION (see page 6) and (see page 23). For your safety, do not operate the generator in an enclosed area such as a garage. Your generator’s exhaust contains poisonous carbon monoxide gas that can collect rapidly in an enclosed area and cause illness or death.

  • Page 28: Starting The Engine

    OPERATION STARTING THE ENGINE To prevent a possible fire, keep the generator at least 3 feet (1 meter) away from building walls and other equipment during operation. Do not place flammable objects close to the engine. Operating this generator less than 3 feet (1 meter) from a building or other obstruction can cause overheating and damage the generator.
  • Page 29 OPERATION 4. Make sure the Auto Throttle AUTO THROTTLE SWITCH switch is in the OFF position, or more time will be required for warm up. 5. Turn the engine switch to the ON position. ENGINE SWITCH 6. Pull the starter grip lightly until you feel resistance;...
  • Page 30 OPERATION 7. If you wish to use the Auto AUTO THROTTLE SWITCH Throttle system, turn the Auto Throttle switch to the ON position after the engine has warmed up for 2 or 3 minutes.

  • Page 31: Stopping The Engine

    OPERATION STOPPING THE ENGINE To stop the engine in an emergency, simply turn the engine switch to the OFF position. Under normal conditions, use the following procedure. 1. Turn off or disconnect all appliances that are connected to the generator. 2.

  • Page 32: Gfci Operation Check

    Always perform the GFCI system inspection before using the generator. If the GFCI system fails the test, the generator must be repaired by an authorized Honda servicing dealer before use. GFCI SYSTEM 120V-30A, 120V/240V-20A (EB4000X), 120V/240V-30A (EB5000X,EB6500X) RECEPTACLES...

  • Page 33: Gfci System

    • The RESET button should extend, and the AC circuit breaker should switch to the OFF position. • If the GFCI and AC circuit breaker do not function as described, take the generator to an authorized Honda generator dealer for repair. GFCI TEST BUTTON GFCI RESET BUTTON...
  • Page 34 ON position. The AC circuit breaker will not remain in the ON position if the RESET button is extended. • If the GFCI and AC circuit breaker do not function as described, take the generator to an authorized Honda generator dealer for repair. AC CIRCUIT BREAKER GFCI RESET BUTTON •...

  • Page 35: Gfci System (120V-20A Duplex Receptacle)

    4. Turn OFF the auto throttle switch (see page 27). 5. Press the TEST button: • The RESET button should extend. • If the GFCI does not function as described, contact an authorized Honda generator dealer. GFCI SYSTEM (120V-20A DUPLEX RECEPTACLES) AC CIRCUIT BREAKER...
  • Page 36 • The RESET button should be flush with the base. • If the RESET button is not flush with the TEST button, contact an authorized Honda generator dealer. 7. Check the GFCI LED to see if it is correctly functioning.

  • Page 37: Ac Operation

    OPERATION AC OPERATION If an appliance begins to operate abnormally, becomes sluggish, or stops suddenly, turn it off immediately. Disconnect the appliance, and determine whether the problem is in the appliance or the rated load capacity of the generator has been exceeded. Substantial overloading may damage the generator.
  • Page 38 OPERATION 3. Switch ON the AC circuit breaker. 4. Plug in the appliance. Most motorized appliances require more than their rated wattage for startup. AC CIRCUIT PROTECTORS AC CIRCUIT BREAKER PLUG *: Except EB4000X 5. Turn on the appliance. Do not exceed the current limit specified for any of the receptacles. If an overloaded circuit causes the AC circuit breaker or AC circuit protector to switch OFF , reduce the electrical load on the circuit, wait a few minutes and then reset the AC circuit breaker or AC circuit...

  • Page 39: Ac Applications

    OPERATION AC Applications Before connecting an appliance or power cord to the generator: • Make sure that it is in good working order. A faulty appliance or power cord can create a potential for electrical shock. • If an appliance begins to operate abnormally, becomes sluggish, or stops suddenly, turn it off immediately.

  • Page 40: Ac Receptacle Selection

    OPERATION AC Receptacle Selection The control panel, shown below, has a voltage selector switch and four receptacles. Receptacle 4, the 240-volt receptacle, has two powered terminals, 4A and 4B. TERMINAL TERMINAL TERMINAL TERMINAL VOLTAGE SELECTOR SWITCH RECEPTACLE <EB4000X> RECEPTACLE RECEPTACLE GFCI RECEPTACLES (120 V 20 A DUPLEX RECEPTACLE) RECEPTACLE...

  • Page 41: Voltage Selector Switch

    OPERATION Voltage Selector Switch Disconnect or turn OFF all appliances or tools connected to the generator before changing the voltage selector switch position. The generator may be damaged if the switch position is changed with loads connected and operating. The power available to each receptacle depends on the position of the voltage selector switch.
  • Page 42 OPERATION 120V/240V Position When the voltage selector switch is in the 120V/240V position, you must balance the load. Divide the load between the two sets of receptacles shown below. Balancing is necessary because each set of receptacles is powered by only one power producing circuit that can produce a maximum of amps(*).

  • Page 43: Auto Throttle System

    OPERATION ® AUTO THROTTLE SYSTEM With the switch in the ON position, engine speed is automatically reduced when ALL loads are turned OFF or disconnected. When appliances are turned ON or reconnected, the engine returns to rated speed. In the OFF position, the Auto Throttle system does not operate. The Auto Throttle system will not respond to electrical loads of less than 1 ampere or intermittent loads such as a staple gun.

  • Page 44: Standby Power

    OPERATION STANDBY POWER Connections to a Building’s Electrical System Connections for standby power to a building’s electrical system must be made by a qualified electrician. The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes.

  • Page 45: Special Requirements

    OPERATION Special Requirements There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction. •...

  • Page 46: Servicing Your Generator

    Remember that an authorized Honda servicing dealer knows your generator best and is fully equipped to maintain and repair it. To ensure the best quality and reliability, use only new, Honda Genuine parts or their equivalents for repair and replacement.

  • Page 47: Maintenance Safety

    SERVICING YOUR GENERATOR MAINTENANCE SAFETY Some of the most important safety precautions follow. However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task. Improper maintenance can cause an unsafe condition.

  • Page 48: Maintenance Schedule

    (1) Service more frequently when used in dusty areas. (2) These items should be serviced by your servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the Honda shop manual for service procedures. See “Honda Publications” on page 76 for ordering information.

  • Page 49: Refueling

    SERVICING YOUR GENERATOR REFUELING With the engine stopped, check the fuel gauge. Refill the fuel tank if the fuel level is low. Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. • Stop the engine and keep heat, sparks, and flame away when refueling.

  • Page 50: Fuel Recommendations

    SERVICING YOUR GENERATOR UPPER LEVEL MARK (RED) FUEL LEVEL GAUGE FUEL TANK CAP FUEL FILTER FULL EMPTY UPPER LEVEL MARK (RED) After refueling, reinstall the fuel tank cap securely. FUEL RECOMMENDATIONS This engine is certified to operate on regular unleaded gasoline with a pump octane rating of 86 or higher.

  • Page 51: Engine Oil Level Check

    SERVICING YOUR GENERATOR ENGINE OIL LEVEL CHECK Check the engine oil level with the engine stopped and in a level position. 1. Remove the oil filler cap/dipstick and wipe it clean. 2. Insert and remove the dipstick without screwing it into the filler neck.

  • Page 52: Engine Oil Change

    SERVICING YOUR GENERATOR ENGINE OIL CHANGE Drain the oil while the engine is warm to assure rapid and complete draining. 1. Place a suitable container below the engine to catch the used oil, and then remove the oil filler cap/dipstick, 12×15 mm drain plug, and sealing washer.

  • Page 53: Engine Oil Recommendations

    AMBIENT TEMPERATURE The SAE oil viscosity and service category are in the API label on the oil container. Honda recommends that you use API service category SJ or later (or equivalent) oil.

  • Page 54: Air Cleaner Service

    SERVICING YOUR GENERATOR AIR CLEANER SERVICE 1. Unsnap the air cleaner cover clips and open the air cleaner cover. 2. Free the hooks from the setting pins on the air cleaner case and remove the air cleaner cover to the right side of the frame pipe, taking care not to damage the air cleaner cover.
  • Page 55 SERVICING YOUR GENERATOR 5. Reinstall the air cleaner element in the air cleaner case. 6. Set the hooks of the air cleaner cover to the setting pins securely, and then push the air cleaner cover to lock the clips. Be sure that the cover is set securely. There must be no clearance between the air cleaner cover and air cleaner case.

  • Page 56: Air Cleaner Element Cleaning

    SERVICING YOUR GENERATOR AIR CLEANER ELEMENT CLEANING A dirty air cleaner element will restrict air flow to the carburetor, reducing engine performance. If you operate the generator in very dusty areas, clean the air cleaner element more frequently than specified in the Maintenance Schedule. 1.

  • Page 57: Spark Plug Service

    SERVICING YOUR GENERATOR SPARK PLUG SERVICE In order to service the spark plug, you will need a spark plug wrench (commercially available). Recommended spark plugs: BPR5ES (NGK) W16EPR-U (DENSO) To ensure proper engine operation, the spark plug must be properly gapped and free of deposits.
  • Page 58 SERVICING YOUR GENERATOR 3. Visually inspect the spark plug. Replace it if the electrodes are worn or if the insulator is cracked, chipped, or fouled. 4. Measure the spark plug electrode gap with a wire-type feeler gauge. Correct the gap, if necessary, by carefully bending the side electrode. The gap should be: 0.028–0.031 in (0.7–0.8 mm) SIDE ELECTRODE...

  • Page 59: Spark Arrester Service

    SERVICING YOUR GENERATOR SPARK ARRESTER SERVICE The spark arrester must be serviced every 100 hours to keep it functioning as designed. If the engine has been running, the muffler will be very hot. Allow the muffler to cool before servicing the spark arrester. Clean the spark arrester as follows: 1.

  • Page 60: Sediment Cup Cleaning

    SERVICING YOUR GENERATOR SEDIMENT CUP CLEANING The sediment cup prevents dirt or water that may be in the fuel tank from entering the carburetor. If the engine has not been run for a long time, the sediment cup should be cleaned. 1.

  • Page 61: Storage

    STORAGE STORAGE PREPARATION Proper storage preparation is essential for keeping your generator trouble-free and looking good. The following steps will help to keep rust and corrosion from impairing your generator’s function and appearance, and will make the engine easier to start when you use the generator again.
  • Page 62 After removal from storage, drain the stored gasoline into a suitable container, and fill with fresh gasoline before starting. * Use gasoline stabilizers that are formulated to extend storage life. Follow the manufacturer’s instructions for use. Contact your authorized Honda generator dealer for stabilizer recommendations.
  • Page 63 STORAGE Draining the Fuel Tank and Carburetor Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. • Stop the engine and keep heat, sparks, and flame away when refueling. • Handle fuel only outdoors. •...

  • Page 64: Engine Oil

    STORAGE 4. After all the gasoline has drained into the container, tighten the carburetor drain screw securely. 5. Place a suitable gasoline container below the sediment cup, and use a funnel to avoid spilling gasoline. 6. Remove the sediment cup (see page 58), and then turn the fuel valve lever to the ON position and drain the fuel from the fuel tank.

  • Page 65: Storage Precautions

    STORAGE STORAGE PRECAUTIONS If your generator will be stored with gasoline in the fuel tank and carburetor, it is important to reduce the hazard of gasoline vapor ignition. Select a well ventilated storage area away from any appliance that operates with a flame, such as a furnace, water heater, or clothes dryer.

  • Page 66: Transporting

    TRANSPORTING Do not lay the generator on its side when moving, storing, or operating it. Oil or fuel may leak and damage the engine or your property. If the generator has been running, allow the engine to cool for at least 15 minutes before loading the generator on the transport vehicle.

  • Page 67: Taking Care Of Unexpected Problems

    (see page 56). Spark plug wet with fuel Dry and reinstall spark plug. (flooded engine). Fuel filter restricted, carburetor Take the generator to an malfunction, ignition malfunction, authorized Honda servicing dealer, valves stuck, etc. or refer to the shop manual.

  • Page 68: Engine Lacks Power

    (see page 61). refueled with bad gasoline. Refuel with fresh gasoline (see page 47). Fuel filter restricted, carburetor Take the generator to an malfunction, ignition malfunction, authorized Honda servicing dealer, valves stuck, etc. or refer to the shop manual.

  • Page 69: No Power At The Ac Receptacles

    Internal circuit overheated. Stop the engine. Reduce the electrical load. Wait a few minutes for the internal circuit to cool down. Restart the engine. Faulty generator. Take the generator to an authorized Honda servicing dealer, or refer to the shop manual.

  • Page 70: Technical Information

    TECHNICAL INFORMATION Serial Number Location ENGINE SERIAL NUMBER FRAME SERIAL NUMBER Record the frame serial number and date purchased in the spaces below. You will need this information when ordering parts and when making technical or warranty inquiries. Engine serial number: Frame serial number: Date purchased:...

  • Page 71: Carburetor Modification For High Altitude Operation

    High altitude performance can be improved by specific modifications to the carburetor. If you always operate your generator at altitudes above 5,000 feet (1,500 meters), have your authorized Honda servicing dealer perform this carburetor modification. This engine, when operated at high altitude with the carburetor modifications for high altitude use, will meet each emission standard throughout its useful life.

  • Page 72: Emission Control System Information

    The following instructions and procedures must be followed in order to keep the Honda engine emissions within the emission standards. Tampering and Altering Tampering is a violation of Federal and California law.
  • Page 73 • Afterburning (backfiring). • Black exhaust smoke or high fuel consumption. Replacement Parts The emission control systems on your new Honda engine were designed, built, and certified to conform with applicable emission regulations. We recommend the use of Honda Genuine parts whenever you have maintenance done.

  • Page 74: Air Index

    TECHNICAL INFORMATION Air Index (Models sold in California) An Air Index Information label is applied to engines certified to an emission durability time period in accordance with the requirements of the California Air Resources Board. The bar graph is intended to provide you, our customer, the ability to compare the emissions performance of available engines.

  • Page 75: Specifications

    0.028–0.031 in (0.7–0.8 mm) Refer to page 56 Valve clearance (cold) IN: 0.15±0.02 mm See your authorized EX: 0.20±0.02 mm Honda dealer. Other specifications No other adjustments needed. Specifications may vary according to the types, and are subject to change without notice.

  • Page 76: Wiring Diagram

    TECHNICAL INFORMATION Wiring Diagram Abbreviations Wire color code Symbol Part name BLACK YELLOW AC O AC Outlet BLUE AC CB AC Circuit Breaker GREEN AC CP AC Circuit Protector AuSw Auto Throttle Switch WHITE Control Box Block BROWN Current Transformer LIGHT GREEN D-AVR Digital-Automatic...
  • Page 77 TECHNICAL INFORMATION EB4000X: *1 · EB5000X, EB6500X: *2...

  • Page 78: Consumer Information

    CONSUMER INFORMATION Dealer Locator Information To find an authorized Honda Servicing Dealer anywhere in the United States: Visit our website: http://powerequipment.honda.com/dealer-locator Honda Publications Shop Manual This manual covers complete maintenance and overhaul procedures. It is intended to be used by a skilled technician.

  • Page 79: Customer Service Information

    CONSUMER INFORMATION Customer Service Information Honda Power Equipment dealership personnel are trained professionals. They should be able to answer any question you may have. If you encounter a problem that your dealer does not solve to your satisfaction, please discuss it with the dealership’s management.

  • Page 80: Assembly

    ASSEMBLY SAFETY The Importance of Proper Assembly Proper assembly is essential to operator safety and the reliability of the machine. Any error or oversight made by the person assembling and servicing a unit can easily result in faulty operation, damage to the machine, or injury to the operator.

  • Page 81: Important Safety Precautions

    ASSEMBLY Important Safety Precautions • Make sure you have a clear understanding of all basic shop safety practices and that you are wearing appropriate clothing and safety equipment. When performing this assembly, be especially careful of the following: □ Read the instructions before you begin, and be sure you have the tools and skills required to perform the tasks safely.

  • Page 82: Assembly

    ASSEMBLY ASSEMBLY Unpacking 1. Remove the generator and loose parts box from the carton. 2. Compare the loose parts with the inventory list below. Tools Required: 12 mm wrench (2), pliers Loose Parts (Wheel kit, handle and hanger) Check all loose parts against the following list. Contact your dealer if any of the loose parts shown below are not included with your generator.

  • Page 83: Wheel Kit Installation

    ASSEMBLY Wheel Kit Installation 1. Install the two wheels on the axle shaft using the washers and split pins. 2. Install the axle assembly on the generator using four 8×16 mm flange bolts and 8 mm flange nuts. 3. Install the two stands on the under frame using four 8×16 mm flange bolts.

  • Page 84: Handle Installation

    ASSEMBLY Handle Installation 1. Install the handle folder assembly on the generator upper frame using the 8×18 mm flange bolts. 2. Install the handle assembly on the generator upper frame pipe using the 8×16 mm flange bolts, handle bush A, handle bush B, and handle lower bracket.

  • Page 85: Hanger Kit Installation

    ASSEMBLY Hanger Kit Installation 1. Position the hanger at the generator’s balance point as shown below. 2. Fit the end tabs of the hanger through the bracket slots, and bolt the brackets to the hanger and tighten securely. TORQUE: 17–22 lbf·ft (24–29 N·m, 2.4–3.0 kgf·m) HANGER 8×16 mm FLANGE BOLT (4) HANGER BRACKET (2)

  • Page 86: Initial Use Instructions

    INITIAL USE INSTRUCTIONS ENGINE OIL The generator is shipped WITHOUT OIL in the engine. 1. Place the generator on a level surface. 2. Remove the oil filler cap/dipstick. 3. Add enough oil to bring the oil level to the upper limit mark on the oil dipstick.

  • Page 87: Fuel

    INITIAL USE INSTRUCTIONS FUEL Add fuel to the generator in a well-ventilated area. Never refuel the engine inside a building where gasoline fumes may reach flames or sparks. Keep gasoline away from appliance pilot lights, barbecues, electric appliances, power tools, etc. Spilled fuel is not only a fire hazard, it causes environmental damage.

  • Page 88: Before Operation

    Please Register Your Generator If your dealer did not collect registration information from you, please take a few minutes and register your purchase with Honda. This allows us to contact you with any important updates regarding your generator. Please note registration is not required to obtain warranty service.

  • Page 89: Index

    INDEX Abnormal Voltage Detection Function..........20 AC Applications ...................37 AC Circuit Breaker................16 AC Circuit Protectors ................15 AC OPERATION..................35 AC Receptacle Selection ..............38 AIR CLEANER ELEMENT CLEANING ..........54 AIR CLEANER SERVICE ...............52 Air Index ....................72 ARE YOU READY TO GET STARTED?..........23 ASSEMBLY..................78, 80 Auto Choke and Throttle Control System..........21 AUTO THROTTLE SYSTEM............14, 41 Automatic Engine Stop Function ............20...
  • Page 90 GFCI OPERATION CHECK ..............30 Ground Fault Circuit Interrupter (GFCI) ..........17 Ground Terminal .................22 Handle Installation................82 Hanger Kit Installation.................83 Honda Publications................76 iAVR (Intelligent Auto Voltage Regulator) .........21 IMPORTANT SAFETY INFORMATION ..........6 Important Safety Precautions .............79 INITIAL USE INSTRUCTIONS .............84 IS YOUR GENERATOR READY TO GO?..........23...
  • Page 91 INDEX Knowledge ...................23 Loose Parts...................80 MAINTENANCE SAFETY..............45 MAINTENANCE SCHEDULE ...............46 NO POWER AT THE AC RECEPTACLES..........67 Oil Alert Function.................20 Oil Alert System...................20 OPERATION..................25 Operator Responsibility ................6 Overspeed Detection Function ............20 Power Producing Circuits..............38 QUICK REFERENCE INFORMATION......Inside back cover Refuel With Care ..................8 REFUELING ..................47 REGISTRATION..................86 REMOVAL FROM STORAGE...............63...
  • Page 92 INDEX SAFE OPERATING PRECAUTIONS.............25 SAFETY....................78 SAFETY LABEL LOCATIONS..............9 Safety Precautions................45 SEDIMENT CUP CLEANING..............58 Serial Number Location ..............68 SERVICING YOUR GENERATOR ............44 SPARK ARRESTER SERVICE...............57 SPARK PLUG SERVICE................55 Special Requirements .................43 Specifications..................73 STANDBY POWER ................42 Starter Grip...................12 STARTING THE ENGINE ..............26 STOPPING THE ENGINE ..............29 STORAGE .....................59 STORAGE PRECAUTIONS ..............63...
  • Page 93 MEMO...
  • Page 94 MEMO...

  • Page 95: Quick Reference Information

    QUICK REFERENCE INFORMATION Fuel Type Unleaded gasoline with an ethanol content of no more than 10% and a pump octane rating of 86 or higher Engine Oil Type SAE 10W-30, API SJ or later (or equivalent), for general use (see page 47) Spark Plug Type BPR5ES (NGK)...
  • Page 96 AHM.35.2015.01 31Z23810 Printed on PRINTED IN U.S.A. 00X31-Z23-8100 Recycled Paper...

This manual is also suitable for:

Eb5000 seriesEb6500 seriesEb4000xEb5000xEb6500x

Table of Contents
