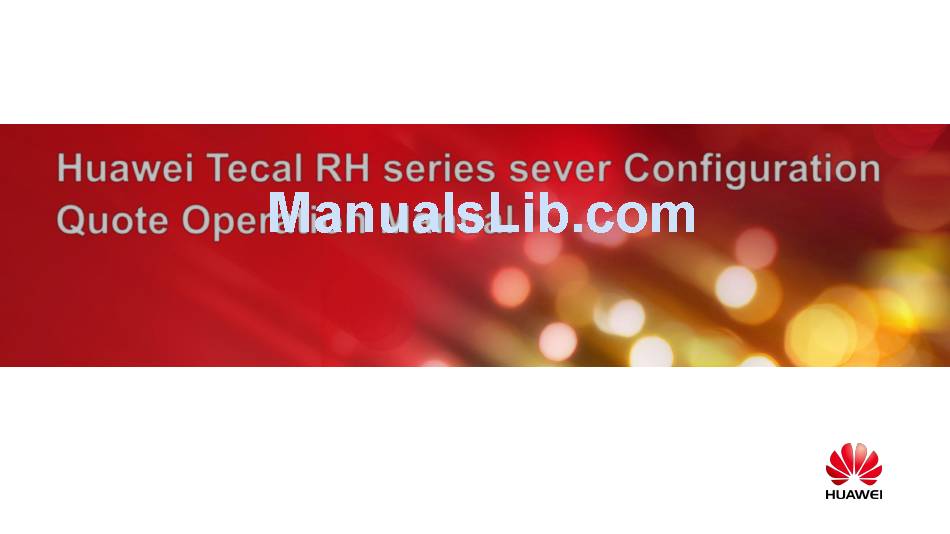

- Page 1 Huawei Enterprise A Better Way Huawei Tecal RH series sever Configuration Quote Operation Manual www.huawei.com HUAWEI TECHNOLOGIES CO., LTD.
- Page 2 Huawei Enterprise A Better Way Content Portfolio of RH server Configuration Principle RH server Configuration Guide Page 2 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
- Page 3 RH2288 V2 RH2288 V2 RH2285 V2 RH2285 V2 (8 HDDS) (12 HDDS) (8 HDDS) (12 HDDS) 4-socket server RH2488 V2 RH2485 V2 Multi-socket server RH5885 V2 RH5885 V2 (8U 8-socket) (4U 4-socket) Page 3 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
- Page 4 Huawei Enterprise A Better Way Content Portfolio of RH server Configuration Principle RH server Configuration Guide Page 4 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
- Page 5 AC:1+1 redundancy ; AC:1+1 redundancy ; Power 750 W golden PSUs 460 W/800W PSUs; AC:1+1 redundancy ; 800W/1200W PSUs; Supply DC:1+1 redundancy; DC:1+1 redundancy; 800W/1200W PSUs; –48V/–60V input –48V,800W PSUs 800 W PSUs Page 5 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
- Page 6 110 V/220 V AC, platinum standard, redundancy, hot- 110 V/220 V AC, platinum standard, redundancy, hot- swappable swappable Fans 6 hot-swappable counter-rotating fans, N+1 redundancy 6 hot-swappable counter-rotating fans, N+1 redundancy Management iMana BMC, USM iMana BMC, USM software Page 6 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
- Page 7 Huawei Enterprise A Better Way Content Portfolio of RH Server Configuration Principle RH Server Configuration Guide Page 7 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
-
Page 8: Configuration Guide
Huawei Enterprise A Better Way Configuration Guide Select the type of Chassis Single Rack Server Base and Power Supply Configuration Insert Card Riser card and PCIe card Accessory Page 8 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential... - Page 9 AC:1+1 redundancy ,460 W/800W PSUs;750 W golden PSUs DC:1+1 redundancy,800 W PSUs If you choose the RH2285/RH2288/RH2485, you need select the type of Power Supply; If you choose the RH5485,you need select the type of CPU only. Page 9 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
- Page 10 Here is the list of the quantity of Memory Product Quantity of Memory RH2285V2 12 DIMMs(Dual-CPU ) RH2288V2 24 DIMMs(Dual-CPU) RH2485V2 24 DIMMs(Dual-CPU);48 DIMMs(Four CPU) RH2488V2 8 DIMMs(Single-CPU);32 DIMMs(Four CPU) RH5485 64 DIMMs Page 10 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
- Page 11 12 HDDS ,can configure external DVD Driver. 8HDD Chassis: SR120(LSISAS2308) or SR220(LSI 2208) or SR620(LSI 2208), at least one should be selected; 12HDD Chassis: SR120(LSISAS2308) or SR320(LSI 2208) or SR420(LSI 2208), at least one should be selected; Page 11 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
- Page 12 If you choose PCIE Dual ports 10GE NIC, without optical transceiver, need configure SFP+ cable(1m,3m,10m) or SFP+ transceiver Product Embedded Network RH2285V2 2*GE RH2288V2 4*GE RH2485V2 4*GE ,2*10GE RH2488V2 2*GE RH5485 2*GE Page 12 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
- Page 13 , to configure the Accessory. If the chassis is 8 HDDS ,can configure internal DVD Driver; if the chassis is 12 HDDS or 12*3.5+2*2.5 inch ,can configure external DVD Driver. Page 13 HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential...
