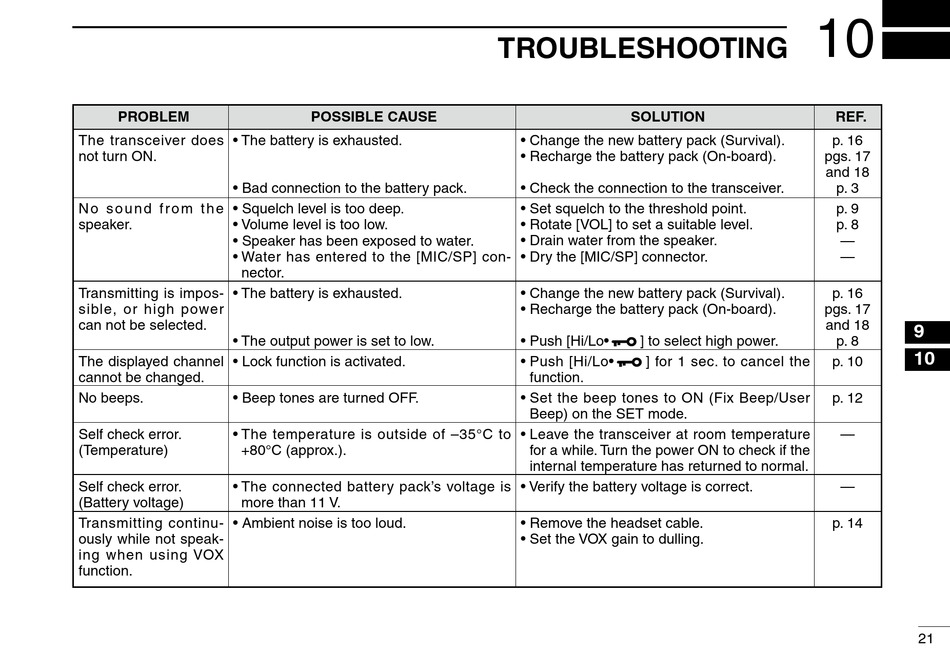

Troubleshooting - Icom IC-GM1600E Instruction Manual

PROBLEM
The transceiver does • The battery is exhausted.
not turn ON.
• Bad connection to the battery pack.
N o s o u n d f r o m t h e • Squelch level is too deep.
speaker. • Volume level is too low.
• Speaker has been exposed to water.
• Water has entered to the [MIC/SP] con-
nector.
Transmitting is impos- • The battery is exhausted.
sible, or high power
can not be selected.
• The output power is set to low.
The displayed channel • Lock function is activated.
cannot be changed.
No beeps. • Beep tones are turned OFF.
Self check error. • The temperature is outside of –35°C to
(Temperature) +80°C (approx.).
Self check error. • The connected battery pack's voltage is
(Battery voltage) more than 11 V.
Transmitting continu- • Ambient noise is too loud.
ously while not speak-
ing when using VOX
function.
POSSIBLE CAUSE

TROUBLESHOOTING

SOLUTION
• Change the new battery pack (Survival).
• Recharge the battery pack (On-board).
• Check the connection to the transceiver.
• Set squelch to the threshold point.
• Rotate [VOL] to set a suitable level.
• Drain water from the speaker.
• Dry the [MIC/SP] connector.
• Change the new battery pack (Survival).
• Recharge the battery pack (On-board).
• Push [Hi/Lo• ] to select high power.
• Push [Hi/Lo• ] for 1 sec. to cancel the
function.
• Set the beep tones to ON (Fix Beep/User
Beep) on the SET mode.
• Leave the transceiver at room temperature
for a while. Turn the power ON to check if the
internal temperature has returned to normal.
• Verify the battery voltage is correct.
• Remove the headset cable.
• Set the VOX gain to dulling.
10
REF�
p. 16
pgs. 17
and 18
p. 3
p. 9
p. 8
—
—
p. 16
pgs. 17
and 18
9
p. 8
10
p. 10
p. 12
—
—
p. 14
21
