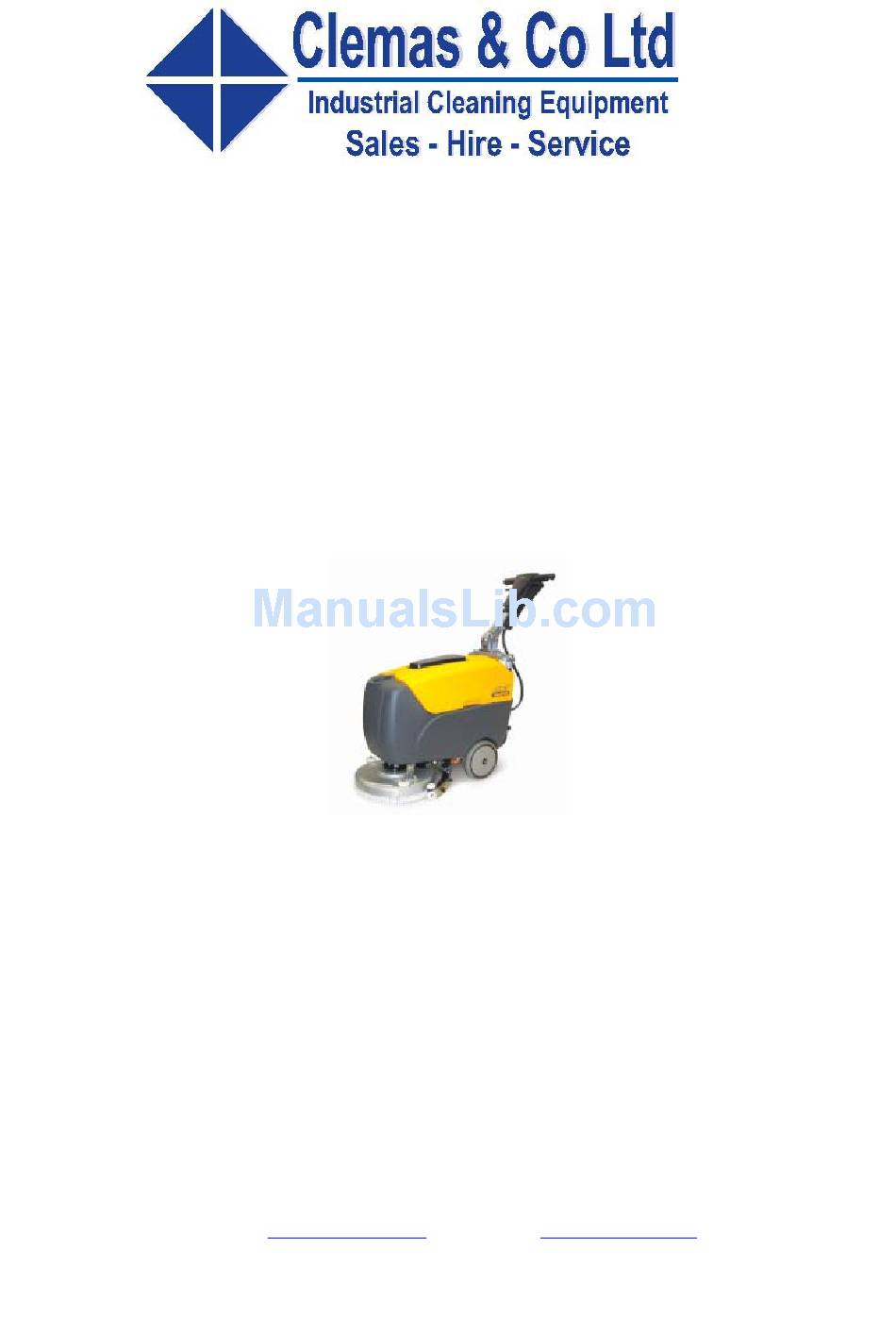

- Page 1 GHIBLI 38E SCRUBBER DRYER OPERATOR MANUAL Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury, Gloucestershire, GL20 8NB. Tel: 01684 850777 Fax: 01684 850707 Email: info@clemas.co.uk Web: www.clemas.co.uk...
-
Page 2: Table Of Contents
Contents Technical data .....................EN-3 1.1 Introduction ....................EN-4 1.1.a Purpose of the manual ...............EN-4 1.1.b Consulting the manual................EN-4 1.1.c Key to symbols used in the manual............EN-4 1.1.d Conventional terminology ..............EN-4 1.2 General warnings ..................EN-4 1.2.a Personnel qualifications ..............EN-4 1.2.b Operator position ................EN-5 1.2.c Protective clothing ................EN-5 1.2.d General warnings before use .............EN-5 1.2.e General warnings while using the machine ........EN-5... -
Page 3: Technical Data
Technical data BC version E version Type of use..........Operator on ground ....Operator on ground Characteristics Operation ............Batteries ........Cable Type of batteries ........N° 2 - 12V - 25Ah - (C5)......- Type of electric cable..........- ........ 230 V - 50/60 Hz Power supply ......... -
Page 4: Introduction
1.1 INTRODUCTION N.B.: The manual is an integral part of the machine Additional information for correct machine itself; it must therefore be stored carefully in a operation or of a general nature. safe place which is accessible to all users (oper- ators and personnel in charge of maintenance) for the entire machine life until demolition. -
Page 5: Operator Position
1.2.b - Operator position 1.2.f - General warnings about the batteries While using the machine, the operator is po- sition at the rear of the machine with his/her Use appropriate personal protection hands on the handle. equipment to avoid contact with the skin (see standards in force in the country in 1.2.c - Protective clothing which the machine is used). -
Page 6: Prolonged Machine Standstill
1.2.i - Prolonged machine standstill 1.4.a - Zone with risk of explosion It is strictly forbidden to use the machine in Place the machine under cover, shel- environments where there is a risk of explo- tered from atmospheric agents in a place sion with the presence of flammable and where the temperature is between 5°C explosive gases, vapours, liquids and pow-... -
Page 7: Unpacking
2.1 UNPACKING (Fig. 1) Once the packaging has been removed as shown in the instructions on the packaging it- self, check that the machine and all the com- ponents supplied are intact. If any evident damage is found, contact the area agent and the carrier within 3 days of receipt Remove the pack (1) containing the ac-... -
Page 8: Connecting The Batteries (For Bc Version Only
3.1.b - Connecting the batteries (for BC version only) (Fig. 4 Remove the recovery water tank (4) and connect the battery connectors (5 and Replace the recovery water tank (4). 3.1.c - Electrical connection (for E version only) Connect the machine power cable to a mains socket with a minimum capacity of 10A. -
Page 9: Assembling The Brush
3.1.d - Assembling the brush (Fig. 5) Position the brush (1) on the ground. Lift the front of the machine up by lever- ing the handle (2) and remove the poly- styrene support (3). Position the flange (4) above the brush (1). -
Page 10: Charging The Battery (For Bc Version Only
4.1 CHARGING THE BATTERY (Fig. 6) (for BC version only) DANGER: Charge the batteries in well-ventilated ar- eas which comply with standards in force in the country of use. For safety-related information, follow what is described in chapter 1 of this manual. WARNING: For information and warnings about the battery and the battery charger, follow... -
Page 11: Getting To Know The Machine
5.1 GETTING TO KNOW THE MACHINE (Fig. 7) Fig. 7 1) Guide handle. 11) Wheels. 2) Control console. 12) Brush rotation flange. 3) Squeegee activation lever. 13) Brush. 4) Lever for starting brush rotation and/or 14) Squeegee. dispensing water. 15) Recovery water drain hose. 5) Lever for rotating handle positions. -
Page 12: Control Panel
6.1 CONTROL PANEL (Fig. 8) 1) LEDs status of battery charge (only for BC version) The button (3) is illuminated when pressed, indicating the charging status of the battery. When the LED (1c) is illuminated, it in- dicates that the battery charge status is at maximum. -
Page 13: Lever For Handle Angle Regulatio
7.1 LEVER FOR HANDLE ANGLE REGULATION (Fig. 9) By pulling on the lever (1), it is possible to vary the position of the handle (2); releasing the lever, the handle is posi- tioned and locks in the nearest required position. N.B.: By positioning the handle (2) vertically, it is possible to effect a more thorough cleaning... -
Page 14: Filling The Tank
8.1 FILLING THE TANK (Fig. 10 WARNING: Only add clean mains water to the tank at a temperature no greater than 50°C. Remove the hose (1) supplied, connect one end (1a) to a tap and insert the other end (1b) in the tank (2). Turn on the tap and fill the tank (2). -
Page 15: Operation
9.1 OPERATION (Figs. 11-12) 9.1.a - Checks before use Check that the exhaust tube (1) of the re- covery tank is properly coupled and prop- erly sealed. Check that the squeegee water aspira- tion hose (2) is correctly inserted in the recovery tank. -
Page 16: Using The Machine
9.1.c - Using the machine After having started the machine and se- lected the type of cycle, start the cleaning operation by pressing the levers (8) and holding them pressed to start rotation of the brush and the dispensing of water, then push the machine by means of the handles (10) in the handle bar (11). -
Page 17: Draining The Recovery Water
WARNING: Always lift up the squeegee at the end of cleaning in order to prevent the deforma- tion of the rubber blades. Press the button (4) turning it off. Disconnect the electric power cable from the socket (for E version only). 10.1 DRAINING THE RE- COVERY WATER (Fig. -
Page 18: Maintenance And Cleaning
11.1 MAINTENANCE AND CLEANING WARNING: For information and warnings regarding maintenance or cleaning, follow the in- formation given in the “General warnings during maintenance” in chapter 1 in this manual. OPERATIONS TO PER- FORM DAILY 11.1.a - Emptying and cleaning the clean water tank (Fig. -
Page 19: Cleaning The Recovery Water Tank
11.1.b - Cleaning the recovery water tank (Fig. 15) WARNING: At the end of the washing operations, it is compulsory to clean the recovery wa- ter tank to prevent deposits or scaling and the proliferation of bacteria, odours or mould. Drain the recovery water as shown in the relative paragraph, positioning the ma- chine over a drain outlet. -
Page 20: Cleaning The Squeegee
11.1.c - Cleaning the squeegee (Fig. N.B.: In order to clean the squeegee correctly (1), If, during washing, it is clear that the rubber it is necessary to remove it as follows: blades (4) are damaged or worn, it is neces- sary to replace them or turn them over. -
Page 21: D Cleaning The Clean Water Filter
OPERATIONS TO PERFORM WEEKLY 11.1.d - Cleaning the clean water fil- ter (Fig. 17) Unscrew the transparent filter cover (1) and remove the filter (2). Clean the filter (2) in running water. If it is blocked, replace it. Replace all the components in reverse order. -
Page 22: F Replacing The Squeegee Rubber Blades
11.1.f - Replacing the squeegee rub- ber blades (Fig. 19) When it becomes clear that drying the floor is difficult or traces of water remain on the floor, it is necessary to check the wear on the squeegee rubber blades (1): Remove the squeegee unit (1) as indicat- ed in the “Cleaning the squeegee”... -
Page 23: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION The machine does not start Low battery (for BC version Check that the battery is up when the key is turned. only). charged. Plug disconnected (for E Connect the plug. version only). Main fuse blown Replace the RED 40A main (for BC version only). -
Page 24: Wiring Diagrams
WIRING DIAGRAMS BC version BAT ...........24V battery CB ........5A battery charger EV .........Solenoid valve F1 ........40A fuse (main) F2 ....... 20A fuse (aspiration) F3 ........30A fuse (brush) M1 ........Aspiration motor M2 ..........Brush motor P1 ........Aspiration switch P2 ..........Brush switch P3 ..........Brush button P4 ......Solenoid valve switch K1 ........Aspiration relay... -
Page 25: Version E
E version EV ..........Solenoid valve M1........Aspiration motor M2 ..........Brush motor MB ........Terminal board P1 ........Aspiration switch P2 ..........Brush switch P3 ..........Brush button P4 .......Solenoid valve switch RFI ...........Net filter EN-25...
