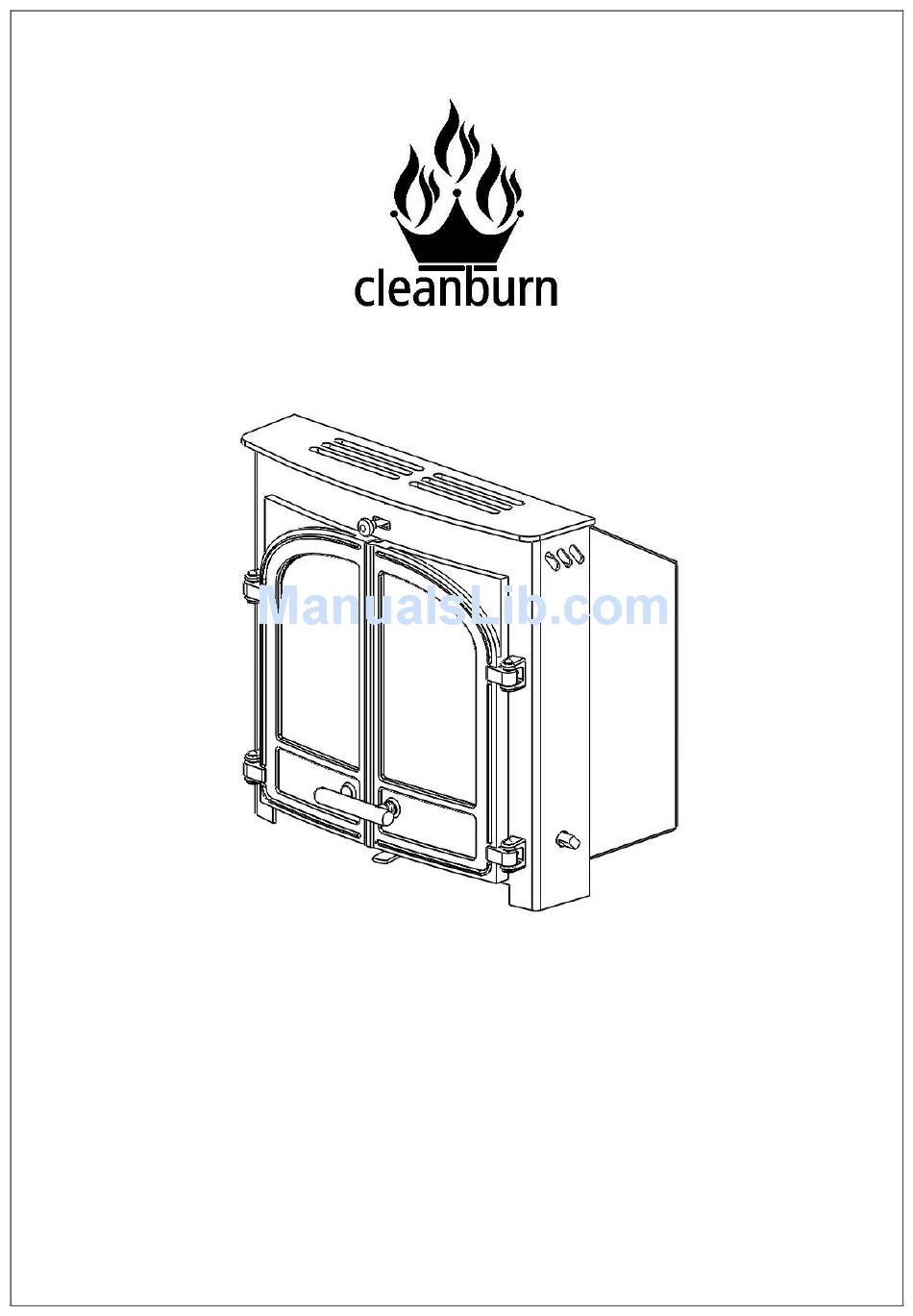

- Page 1 Sønderskoven Inset Multi-Fuel Inset Stove Installation and Operating Instructions V05.11...
-
Page 2: General Guidance
No unauthorized modification of this appliance It is important that your stove is correctly installed as should be carried out. Cleanburn Stoves cannot accept responsibility for any fault arising through incorrect use or installation. Safety These instructions cover the basic principles to ensure satisfactory installation of the stove, although WARNING –... -
Page 3: In The Event Of A Chimney Fire
DVERSE EATHER LUE OUTLET POSITION In a small number of installations, occasional local The flue outlet angle is 30°. The effective centre weather conditions (e.g. wind from a particular dimension is shown below. direction) may cause downdraught in the flue and the stove to emit fumes. -
Page 4: Hearth Requirements
BS EN 1856 can be used. These chimneys fireplace/surround for closed solid fuel appliances must be fitted in accordance with the before installation. Cleanburn Stoves cannot be held manufacturer’s instructions and Building responsible for any fault arising through incorrect Regulations. -
Page 5: Flue Draught
The chimney/flue should have a vertical height Terminal Position Clearances to Flue of at least 4.5 metres and should terminate in Outlet accordance with Table 2. At or within 600mm of At least 600m above the ridge the ridge Elsewhere on a roof At least 2300mm horizontally (whether pitched or from the nearest point on the... - Page 6 3. Remove the fuel retainer supports by lifting them free from the slots in the catch bar and swinging the bottom ends out of the stove. EMOVING INTERNAL COMPONENTS All internal components must be removed prior to fitting the stove. This will make handling the stove easier;...
- Page 7 5. Remove the rear bricks. 6. Remove the lower rear brick support using the finger hole provided to lift it from its slots. 9. Remove the firebox side plates. 7. Cut the cable ties and remove the baffle by rolling it up over the baffle supports and out of the stove.
- Page 8 10. Remove the catch bar/front plate. 12. Lift out the rear cam bar along with the cam bar linkage arm. 13. Lift out the primary air duct. 14. Lift out the primary air valve slider. 11. Detach the cam bar linkage arm from the front cam bar, rotate the cam bar and lift it out.
-
Page 9: Flue Connection
16. Slide the primary air valve control arm all the ONNECTION way to the left. If connecting to a stainless steel liner, a liner clamp (HHN07/ARRT/003) will need to be used. The clamp should be connected to the liner by a proprietary flexible liner to single wall flue adaptor using the three fixing holes in the clamp socket and those provided in the flue adaptor. - Page 10 Insert the side plate so that the front end of it locates under the front plate/catch bar as shown. Ensure that the back end of the side plate is outside the rear grate support as shown. Alternatively a connection can be made using a register plate although it will be necessary to allow access for fitting the flue pipe to the register plate, infilling with vermiculite concrete and sealing all...
-
Page 11: Primary Air
ULTIFUEL RATE familiarize yourself with the controls and their Your Cleanburn Stove is fitted with a locomotive type recommended settings before use. grate. So that de-ashing can be carried out cleanly and easily, it is riddled from the outside of the stove... -
Page 12: Reduced Combustion
ECOMMENDED UELS It might prove beneficial when burning more reactive Cleanburn Stoves recommend that wood logs or fuels to leave the grate in a “neutral” position, thus approved smokeless fuels are burnt in this appliance. directing some under fire air and some over fire air to the firebed. -
Page 13: General Maintenance
Rope- Check the rope around the door. If rope is heating season. becoming detached, use Cleanburn Stoves rope glue to reattach it. If the rope is in a poor condition, a ECESSARY... -
Page 14: Troubleshooting
smokeless fuels and at least twice a year for wood manufacture of the product and no cause for and other fuels. concern. Trouble Shooting The baffle will need to be removed from its supports in order to sweep the chimney (see ‘Removing IRE WILL NOT BURN internal components’... -
Page 15: Spares Information
Spares Information Single Door... - Page 16 Spares Information Right-Hand Door...
- Page 17 Spares Information Left-Hand Door...
- Page 18 Spares Information Single Door Handle...
- Page 19 Spares Information Double Door Handle...
- Page 20 Spares Information Single Door Body Spares...
- Page 21 Spares Information Double Door Body Spares...
