Ozito LT4-1000 Instruction Manual

4 in 1 garden pack 1000 watt
Hide thumbs
Table of Contents

Advertisement

Quick Links

4 in 1
Garden Pack
1000 Watt
Instruction Manual
2 Year Replacement Warranty
LT4-1000
WARNING! Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future reference.
To view the full range visit:
www.ozito.com.au
1112
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT4-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ozito LT4-1000

Summary of Contents for Ozito LT4-1000

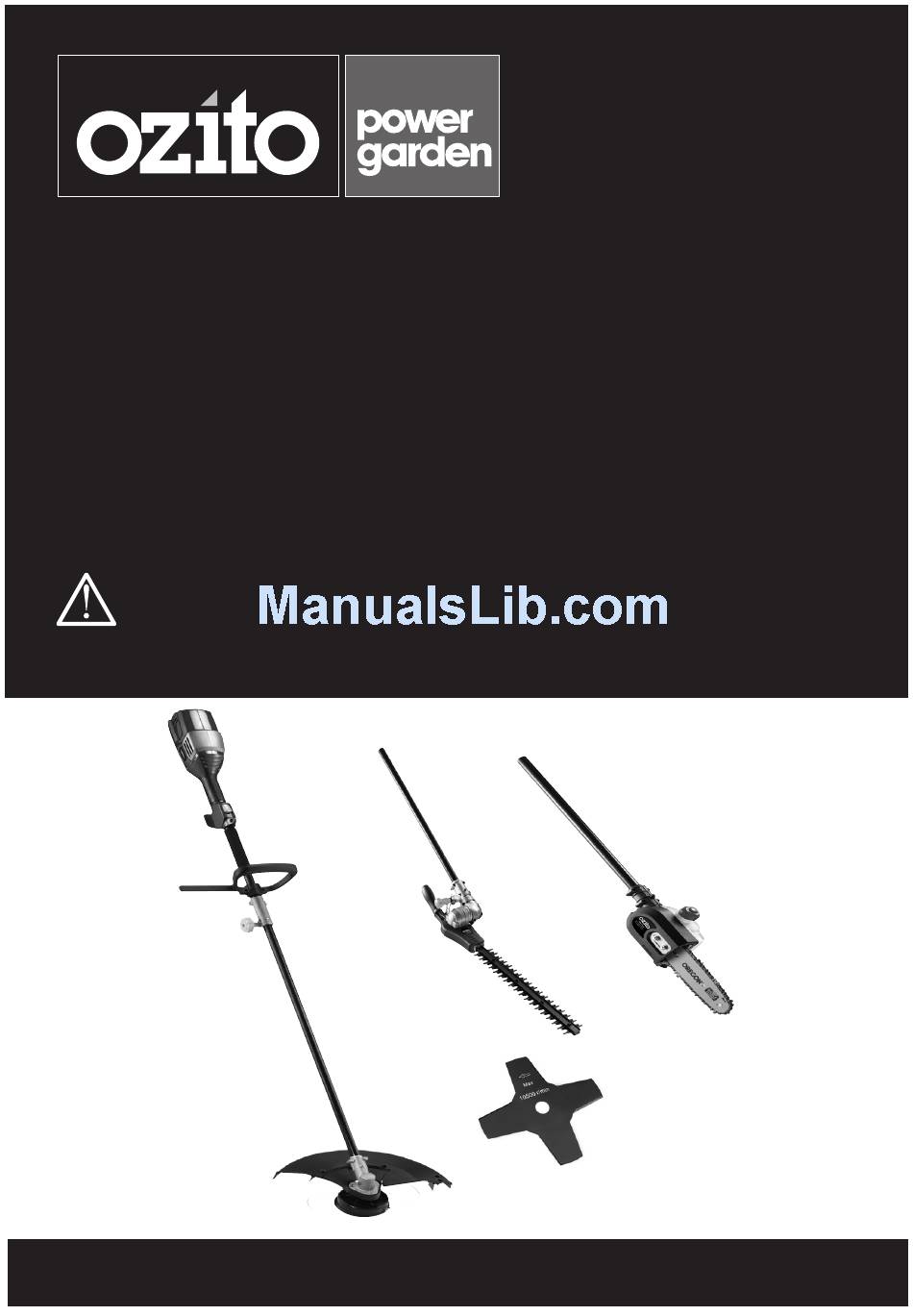

  • Page 1 Garden Pack 1000 Watt Instruction Manual 2 Year Replacement Warranty LT4-1000 WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 2: Specifications

    SPECIFICATIONS - MODEL NO. LT4-1000 Motor: 1000W Input: 230V ~ 50Hz No load speed: 7,500/min Weight: 3.10kg Line Trimmer Cutting Diameter: 350mm Line: 2.5mm x 5.5m Feed type: Bump Feed Weight: 1.75kg Brush Cutter - Blade : Ø230 x Ø26mm Weight: 1.85kg...
  • Page 3 KNOW YOUR PRODUCT Drive Unit 1. On/Off trigger 2. Auxiliary handle 3. Auxiliary handle bracket 4. Shaft locking knob 5. Shoulder strap bracket 6. Lock-off switch Accessories 7. Safety guard 8. Safety guard extension (for line trimmer) 9. Shoulder strap 10.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS ……………………………………….. Page 2 INTRODUCTION………………………………………… Page 5 ELECTRICAL SAFETY…………….……………………… Page 5 GENERAL POWER TOOL SAFETY WARNINGS……… Page 6 ADDITIONAL SAFETY WARNINGS FOR LINE TRIMMER & BRUSHCUTTER....... Page 8 HEDGE TRIMMER............Page 10 CHAINSAW..............Page 11 PREPARATION & SET-UP………………………………… Page 13 OPERATION………………………………………………...

  • Page 5: Introduction

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

  • Page 6: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”...
  • Page 7 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  • Page 8 LINE TRIMMER & BRUSHCUTTER SAFETY WARNINGS Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live“ and could give the operator an electric shock.

  • Page 9: Line Trimmer & Brushcutter

    LINE TRIMMER & BRUSHCUTTER SAFETY WARNINGS (cont.) • Disconnect the line trimmer from the mains before carrying out maintenance or cleaning work. • Inspect and maintain the line trimmer regularly. Have the line trimmer repaired only by an authorized repairer. •...
  • Page 10 HEDGE TRIMMER SAFETY WARNINGS • Keep all parts of the body away from the cutter blade. Do not remove cut material or old material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

  • Page 11: Hedge Trimmer

    HEDGE TRIMMER SAFETY WARNINGS (cont). Recommendations for the use of a residual current device with a rated residual current of 30mA or less. Using an Extension Lead Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for signs of damage, wear and ageing.

  • Page 12: Chainsaw

    CHAINSAW SAFETY WARNINGS (cont). • Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback. • Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slip- pery causing loss of control.

  • Page 13: Preparation & Set-Up

    PREPARATION & SET-UP (cont). WARNING! Before assembly, make sure that the tool is switched off and unplugged. Assembling the auxiliary handle 1. Locate the auxiliary handle (2) and auxiliary handle bracket (3) onto the drive unit shaft. 2. Secure in place with a Phillips head Fig.
  • Page 14 PREPARATION & SET-UP (cont). Assembling the shoulder strap 1. Hook the shoulder strap (9) onto the shoulder strap bracket (5) (Fig. 5) 2. Adjust the shoulder strap (9) to a length Fig. 5 that is suitable to you. Assembling of safety guards Note: Line Trimmer &...
  • Page 15 PREPARATION & SET-UP (cont). Removing of spool set (13) 1. Align the hole in the inner flange (14) with the hole in the gear box housing and insert assembly pin (18) (Fig. 10). Fig. 10 2. While holding assembly pin (18) unscrew the spool set (13) with the large open- end spanner (20), turning clockwise (Left-hand thread) (Fig.
  • Page 16 PREPARATION & SET-UP (cont). 4. While holing the assembly pin (18) in place and the blade (10) fitted, screw on the nut (15) turning counter clockwise (left-hand thread). Tighten with combination tool (21) (Fig. 15) Fig.15 Fig.15 5. Remove assembly pin (18). Push split pin (16) through the hole in drive shaft and bend both ends as shown (Fig.
  • Page 17 PREPARATION & SET-UP (cont). Assembling pole hedge trimmer 1. Carefully rotate blade 180° from its transport position. (Fig 19) Fig.19 2. Remove screw from handle. Insert through metal bracket back into handle, tighten firmly (Fig. 20). metal bracket Fig.20 Adding chain bar oil (Fig. 21) WARNING! Never start work unless the chain and bar are lubricated.

  • Page 18: Operation

    OPERATION Recommendations for the use of a residual current device with a rated residual current of 30mA or less. Children should be supervised to ensure that they don’t play with the appliance. WARNING! If cordset is cut or damaged remove it immediately from the powerpoint.
  • Page 19 OPERATION (cont). Line Trimmer / Brush Cutter Attachment Note: Line trimmer & brush cutter use same shaft. WARNING! Make sure that the work area is free of rocks, debris, lines and other foreign objects. 1. Insert the assembled line trimmer or brush cutter attachment to the drive unit tube.
  • Page 20 OPERATION (cont). Pole Hedge Trimmer Attachment WARNING! Familiarise yourself with surrounding hazards such as power lines, phone lines, metal fences and other objects that could be in your trimming path, failure to do so could result in electrical shock, personal injury or damage to your pole hedge trimmer. Extension cord.
  • Page 21 OPERATION (cont). Working position. Maintain proper footing and balance and do not overreach. Wear safety goggles, non-slip footwear and rubber gloves when trimming. Hold the pole hedge trimmer firmly in both hands before turning the pole hedge trimmer on. Always hold the pole hedge trimmer with one hand on the rear handle and one hand on the adjust- able auxiliary handle.
  • Page 22 OPERATION (cont). Pole Pruner Attachment WARNING! Never start work unless the chain and bar are lubricated. If the pruner is used without oil, the chain and bar be- come very hot and wear out very quickly by strong friction, potentially causing kick back of the guide bar and possibly chain breakage.
  • Page 23 OPERATION (cont). Chain Tension WARNING! The chain has sharp edges. For your safety, please use work gloves. 1. Loosen the two chain drive cover nuts (c) with small open-end spanner (20) (Fig. 30). Caution: If you try to rotate the chain tension screw whilst the chain drive nuts are tight, it will result in the chain not loosening and possible damage to the chain tensioning...
  • Page 24 OPERATION (cont). Limbing (Fig. 33) Limbing is the process of removing the branches from a fallen tree. Check the direction in which a branch will bend before cut- ting it. Always cut on the opposite side to the bending direction so that the guide bar is not pinched in the cut.

  • Page 25: Maintenance

    MAINTENANCE WARNING! ! Always ensure that the 4 in 1 garden pack is switched off and the plug is removed from the power point before making any adjustments. Drive Unit • Keep the ventilation vents of the tool clean at all times, if possible, prevent foreign matter from entering the vents.
  • Page 26 • There are no user serviceable parts in the Hedge Trimmer; if a fault is suspected, please contact Ozito customer service. Pole Pruner Attachment • The chain can be sharpened using a 5/32” size file. A sharp chain generates wood chips during the cut, a dull chain generates sawdust powder and produces a slow cut.
  • Page 27 MAINTENANCE (cont). 2. Place the guide bar with chain onto the pole pruner, ensuring the chain is fitted around the sprocket (e) (Fig. 40). WARNING! If the chain is installed on backwards (chain cutters are facing in the opposite direction of rotation) the pole pruner will vibrate excessively and not cut Fig.

  • Page 28: Spare Parts

    SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part Part No. Chain (pruner) SPLT4-1000442 Bar (pruner) SPLT4-1000441 Blade (brushcutter) SPLT4-1000309 Nut M10 LH (brushcutter)

  • Page 29: Pack Contents

    1 x Blade transport cover 1 x Combination tool 1 x Blade cover (trimmer) 1 x Spool set OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au...

  • Page 30: Warranty

    If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Offi ce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
