Ozito GCC-160A Instruction Manual

GARDEN
COLLECTION CART
160L
INSTRUCTION MANUAL
1 Scoop
2 Upper Handle
3 Lower Handle x 2
1
4
7 Wheel x 2 11 Split Pin x 2
8 Wheel Cap x 2 12 M5 x 20mm Screw x 2
9 M5 Washer x 2 13 M5 x 40mm Screw x 2
10 M5 Nut x 4
8
7 9
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
ozito.com.au
4 Base
5 Locking Collar x 2
6 Locking Tab x 2
2 3
5
6
10
11 12 13

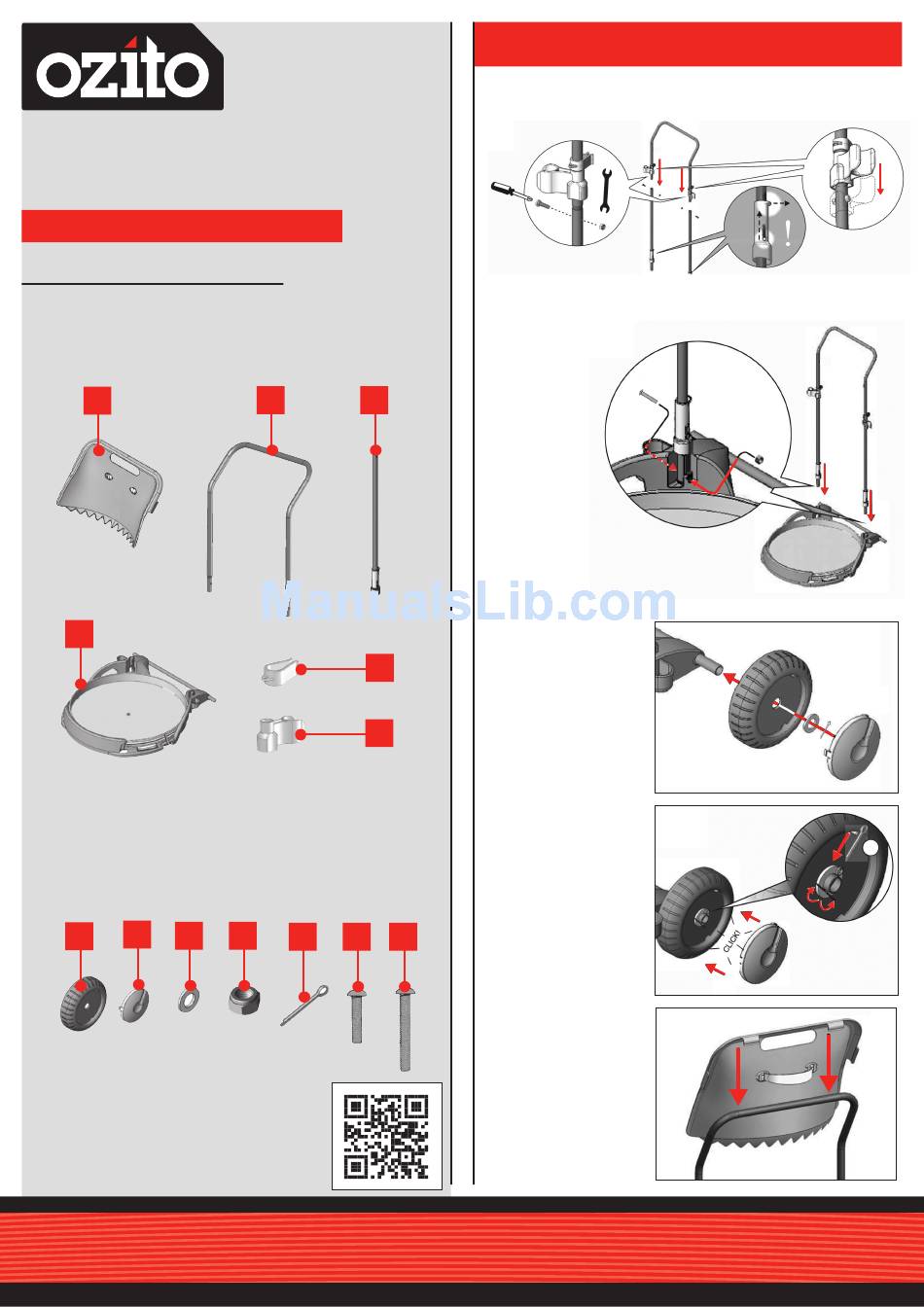

ASSEMBLY

1. Fit upper handle onto lower handle and secure using the 2 M5 x 20mm
screws and nuts.
2. Fit handle assembly onto base and secure using the
2 M5 x 40mm screws
and nuts.
3. Attach wheels onto axle.
4. Ensure both ends of
the split pin are bent
to secure wheel on
axle.
5. Attach scoop onto top
handle.
GCC-160A
