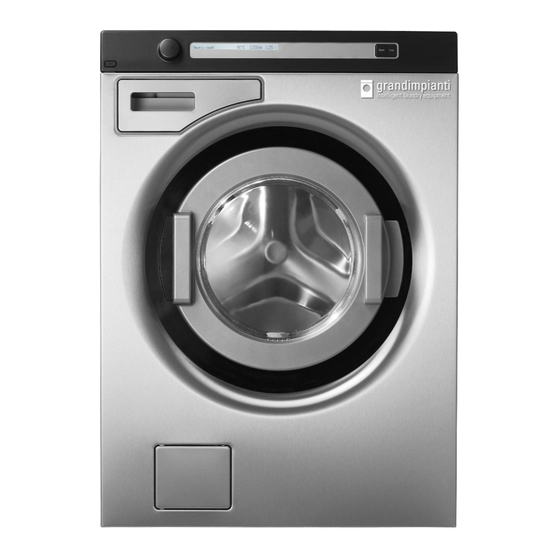

Manuale di servizio GH6
Service manual GH6
Conservare per futura
consultazione.
To be kept for future advice.
MA_B006_GH6_Service manual rev.01
24/02/2011 - 999999000202

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GH6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for grandimpianti GH6

Summary of Contents for grandimpianti GH6

  • Page 1 Manuale di servizio GH6 Service manual GH6 Conservare per futura consultazione. To be kept for future advice. MA_B006_GH6_Service manual rev.01 24/02/2011 - 999999000202...

  • Page 2: Table Of Contents

    Service manual Type: WM70.C Contents Updates ..................................................4 Introduction .................................................5 General product information........................................6 Troubleshooting strategy ..........................................8 Faults and measures ............................................. 10 Panel ..................................................11 Knob and button descriptions ........................................ 11 Display description ............................................11 Programme tables ............................................12 Programme descriptions ........................................... 16 Settings.................................................

  • Page 3: Introduction

    Service manual WM70.C Introduction You are holding the service manual for WM70.C washing machines. It should be easy to service a washing machine. It is important that you, as a service technician, are provided the necessary conditions to work in an efficient and satisfactory manner. Our hope is that this service manual will prove a useful tool in your daily work.

  • Page 4: General Product Information

    Service manual WM70.C General product information In conjunction with the introduction of the WM70.C (August 2010), our washing machines have been altered in a number of areas. Here we present the changes to the wash drum and wash agitators. - 60 litres (previously 50 litres) - 23 mm deeper, the drum is now 343 mm deep in total (previously 320 mm) - 30 mm larger diameter, 480 mm in total (previously 450 mm) All cylinder holes flanged to reduce wear on...
  • Page 5 Service manual WM70.C General product information (cont.) - Cleaned after every ten wash cycles between the main wash and the first rinse.

  • Page 6: Troubleshooting Strategy

    Service manual WM70.C Troubleshooting strategy At Asko, we believe in always remaining focused on the customer, and as an ASKO service technician, you are one of the most important ambassadors of our brand. As such, it is important that the customer finds the service callout a pleasant experience. Troubleshooting is an important part of the service callout, and as such we have drawn up a troubleshooting strategy that describes, in broad terms and step by step, what you need to do to find and diagnose faults.

  • Page 7: Panel

    Service manual WM70.C Panel WM70.C Programmes: A total of twenty-two programmes, three of which can be customised via the service menu. A maximum of ten programmes can be activated/available to the end user at the same time. Settings: Knob and button descriptions Programme selector Turn clockwise or anti-clockwise to cycle through the different programmes and options in the various menus.

  • Page 8: Programme Tables

    Service manual WM70.C Programme tables The tables present a few examples of the energy, water and time consumption of a few different programmes. Consumption can vary depending on water pressure, water hardness, water supply temperature, room temperature, the type and amount of laundry, and variations in the power supply.
  • Page 9 Service manual WM70.C Programme tables (cont.) Machine attached to hot and cold water, 6 kg Programme Degree of Spin (rpm) Time Energy Water Rinses filling (kg) (min) consumption consumption (kWh) (hot/cold) 1. Normal wash 60°C * 6 kg cotton Max. 1.14 Programme for labelling (also standard programme for...
  • Page 10 Service manual WM70.C Programme tables (cont.) Machine connected to cold water, 8 kg Programme Degree of Spin (rpm) Time Energy Water Rinses filling (kg) (min) consumption consumption (kWh) 1. Normal wash 60°C * 8 kg cotton Max. 1.20 Programme for labelling (also standard programme for Swan-labelled machines) 2.
  • Page 11 Service manual WM70.C Programme tables (cont.) Machine attached to hot and cold water, 8 kg Programme Degree of Spin (rpm) Time Energy Water Rinses filling (kg) (min) consumption consumption (kWh) (hot/cold) 1. Normal wash 60°C * 8 kg cotton Max. 1.20 Programme for labelling (also standard programme for...

  • Page 12: Programme Descriptions

    Service manual WM70.C Programme descriptions Programme designation Description 1. Normal wash 60°C Programme for normally to heavily soiled laundry, whites and colours. Follow the washing instructions for each garment. 60°C is a good temperature for garments worn next to the skin. This programme has five rinses.

  • Page 13: Settings

    Service manual WM70.C Settings Opening the settings menu Is the machine on? First turn off the power at the main power På/Av Start switch (S1). Stop Press and hold the Key button (S5) while simultaneously pressing the main power switch (S1). Press the Key button (S5) 5 times within 10 seconds.

  • Page 14: Service Menu

    Service manual WM70.C Service menu Opening the service menu På/Av If the machine is on: First turn off the power at the main power Start Stop switch (S1). Press and hold the Start/Stop button (S4) while simultaneously pressing the main power switch (S1). Press the Start/Stop button (S4) 5 times within 5 seconds.

  • Page 15: Service Menu Content

    Service manual WM70.C Service menu content 11 Info SP: XXXX Date the software was programmed (Year_Week) 1 Service CM: XXXX Date of manufacture of the control unit (Year_ Week) Software version Software version Number of cycles/programmes run NC 1: Number of cycles for Programme 1 NC 2: Number of cycles for Programme 2 NC 3:...
  • Page 16 Service manual WM70.C Service menu content (cont.) 24 Show Temp Off Only applies to the disinfection programmes (Pr17-Pr19) temp Temp On 25 Change Pr1-Pr19 This can be changed in steps of 1°C between -10°C to +10°C. You cannot set a total temp temperature that exceeds +92°C.

  • Page 17: Notes For Custom Programmes

    Service manual WM70.C Notes for custom programmes Make a note of the settings you make when creating custom programmes (Pr20, 21, 22). Save this note close to the machine Notes 34 Pre 341 Number of Pr 20 wash 342 Water level 343 Time 344 Heat temp 35 Main...

  • Page 18: Making A Custom Programme

    Service manual WM70.C Making a custom programme You can make three custom programmes. This is done in the service menu. In order for the new programme to be made available, one of the existing programmes must be deactivated, that is, set to “Off”, and the new programme set to “On”.
  • Page 19 Service manual WM70.C Activate the new programme If the machine is on: First turn off the power at the main power switch (S1). På/Av Start Press and hold the Start/Stop button (S4) while Stop simultaneously pressing the main power switch (S1). Press the Start/Stop button (S4) 5 times within 5 seconds.

  • Page 20: Fault Indicators

    Service manual WM70.C Fault indicators Error message Cause Action Over flow fault Too much water in the machine. Service action: Check the machine's level system, inlet valve and drainage pump. Check for any leaks. The drainage pump is running but the machine is empty.

  • Page 21: Components And Measurement Values

    Service manual WM70.C Components and measurement values Item number Component Measurement value Comment 80 658 33 CIM motor Resistances: Pins 1-3 stator 3.7 : Pins 1-2 stator 3.6 : Pins 2-3 rotor 3.6 : Pins 4-5 tacho 178 : 80 617 03 Heating element 2000 W 80 617 04 Heating element 1000 W...

  • Page 22: Technical Data

    Service manual WM70.C Technical data Height: 850 mm Width: 595 mm Depth: 585 mm Weight: 73 kg Cylinder volume: 60 l Max. load capacity 8 kg/6 kg Spin speed: 800-1600 Connection: 1-phase 16 A, 3-phase 10 A Heater output: 2000 W/3000 W Water pressure/inlet valve: 0.1–1 MPa, 1–10 kp/cm2, 10–100 N/cm2 8 l/min Wash drum and liquid compartment:...

  • Page 23: Panel And Control Card Replacement

    Service manual WM70.C Panel and control card replacement 1. Attach the anti-static wristband to a part of the machine that is earthed! NB: An anti-static wristband must be used, otherwise you risk destroying the control card. 2. Undo the three screws holding the top cover in place.
  • Page 24 Service manual WM70.C Panel and control card replacement (cont.) 6. Carefully pull the programme selector from the panel. 5. Use a screwdriver to free the control card from the panel. NB: The control card must be placed in an ESD-safe bag. 6.

  • Page 25: Wash Agitator Removal

    Service manual WM70.C Wash agitator removal When replacing or cleaning the wash agitators, or when removing items that have fallen through the wash drum, first you need to remove the agitators. Follow the instructions below. 1. Insert a screwdriver or the like into the hole on the agitator as illustrated and carefully pry to the left.
  • Page 26 Versione con pompa di scarico Model with drain pump...
  • Page 27 Pannellatura esterna Outer casing Code Descrizione Description GR36ASK8061817-81 COPERCHIO SUPERIORE GRIGIO TOP COVER GREY METALLIC 1 Pc's 101-a GR36ASK8900338 VITE VEDI GR36ASK8902362 SCREW Repl.by 8902362 3 Pc's 101-b GR36ASK8901413 RONDELLA AZ 4,3 ZINCATA LOCK WASHER AZ 4,3 GALV 2 Pc's TRAVERSO DI SUPPORTO, COPERCHIO GR36ASK8064198 SUP.
  • Page 28 Pannellatura esterna Outer casing...
  • Page 29 Parte superiore Upper session Code Descrizione Description GR36ASK8076029 TRAVERSO FRONTALE FRONTBEAM 1 Pc’s 501-a GR36ASK8900338 VITE VEDI GR36ASK8902GR362 SCREW Repl.by 8902GR362 2 Pc’s 501-b GR36ASK8901413 RONDELLA AZ 4,3 ZINCATA LOCK WASHER AZ 4,3 GALV 2 Pc’s GR36ASK8081666 COMPARTIMENTO DETERGENTI COMPLETO DETERGENT COMPARTMENT COMPL. 1 Pc’s 503-a GR36ASK8901970 VITE PTK 40X12 A2 WN1452 T20...
  • Page 30 Parte superiore Upper session...
  • Page 31 Parte inferiore Lower session Code Descrizione Description GR36ASK8801454 KIT AMMORTIZZATORE WM70 SPRINGLEG KIT WM70 1 Pc's GR36ASK8088443 GOMMINO PER AMM. SUPERIORE RUBBER BUFFER SPRING LEG 4 Pc's GR36ASK8088444 GOMMINO PER AMM. INFERIORE RUBBER BUFFER SPRING LEG 4 Pc's AMM. IN GOMMA DELLO STELO DEL GR36ASK8088445 RUBBER DAMPER PISTON ROD 4 Pc's...
  • Page 32 Parte inferiore Lower session...
  • Page 33 Vasca e parti correlate Cylinder and related parts Code Descrizione Description GR36ASK8082933-81 FRONTALE PORTA COMPLETO WM60.C FRONT DOOR COMPL. WM60.C 1 Pc's GR36ASK8082934-81 TELAIO FRONTE PORTA ESTERNO FRAME FRONT DOOR OUTER PART 1 Pc's GRGR36ASK8082937-49 TELAIO FRONTE PORTA INTERNO FRAME FRONT DOOR INNER PART 1 Pc's GRGR36ASK8061685 VETRO D306x42mm WM20 FRONT GLASS D306x42mm WM20 1 Pc's...
  • Page 34 Vasca e parti correlate Cylinder and related parts...

  • Page 35: Control Panel

    Pannello di controllo Control panel Code Descrizione Description GR36ASK8080887-69 PANELLO WMD60.2 MECH. PANEL WMD60.2 MECH. 1 Pc's GR36ASK8079749 CORDINO O-RING IN GOMMA O-RING CORD CELLULAR RUBBER 1 Pc's GR36ASK8081672-81 COPERCHIO DISPENSER CON FORO LID DETERGENT DISP. W. HOLE 1 Pc's GR36ASK8081748-69 PULSANTE START/STOP PER WM PUSHBUT.
  • Page 36 Schema elettrico Circuit diagram...
  • Page 37 Versione con valvola di scarico Model with drain valve...
  • Page 38 Pannellatura esterna Outer casing Code Descrizione Description GR36ASK8061817-81 COPERCHIO SUPERIORE GRIGIO TOP COVER GREY METALLIC 1 Pc’s 101-a GR36ASK8900338 VITE VEDI GR36ASK8902362 SCREW Repl.by 8902362 3 Pc’s 101-b GR36ASK8901413 RONDELLA AZ 4,3 ZINCATA LOCK WASHER AZ 4,3 GALV 2 Pc’s TRAVERSO DI SUPPORTO, COPER- GR36ASK8064198 SUPPORT BEAM, TOP COVER...
  • Page 39 Pannellatura esterna Outer casing...
  • Page 40 Parte inferiore Lower session Code Descrizione Description GR36ASK8801454 KIT AMMORTIZZATORE WM70 SPRINGLEG KIT WM70 1 Pc’s GR36ASK8088443 GOMMINO PER AMM. SUPERIORE RUBBER BUFFER SPRING LEG 4 Pc’s GR36ASK8088444 GOMMINO PER AMM. INFERIORE RUBBER BUFFER SPRING LEG 4 Pc’s AMM. IN GOMMA DELLO STELO DEL PI- GR36ASK8088445 RUBBER DAMPER PISTON ROD 4 Pc’s...
  • Page 41 Parte inferiore Lower session...
  • Page 42 Schema elettrico Circuit diagram...
  • Page 44 Capitale Sociale € 51.000.000 I.V. e-mail: info@grandimpianti.com R. E. A. MI n. 862551 - Reg. Imp. MI n. 160786 http : // www.grandimpianti.com Unicredit Banca – BIC SWIFT UNCRIT2VBLW Tel. +39 0437 848 711 - Fax +39 0437 879 108...
