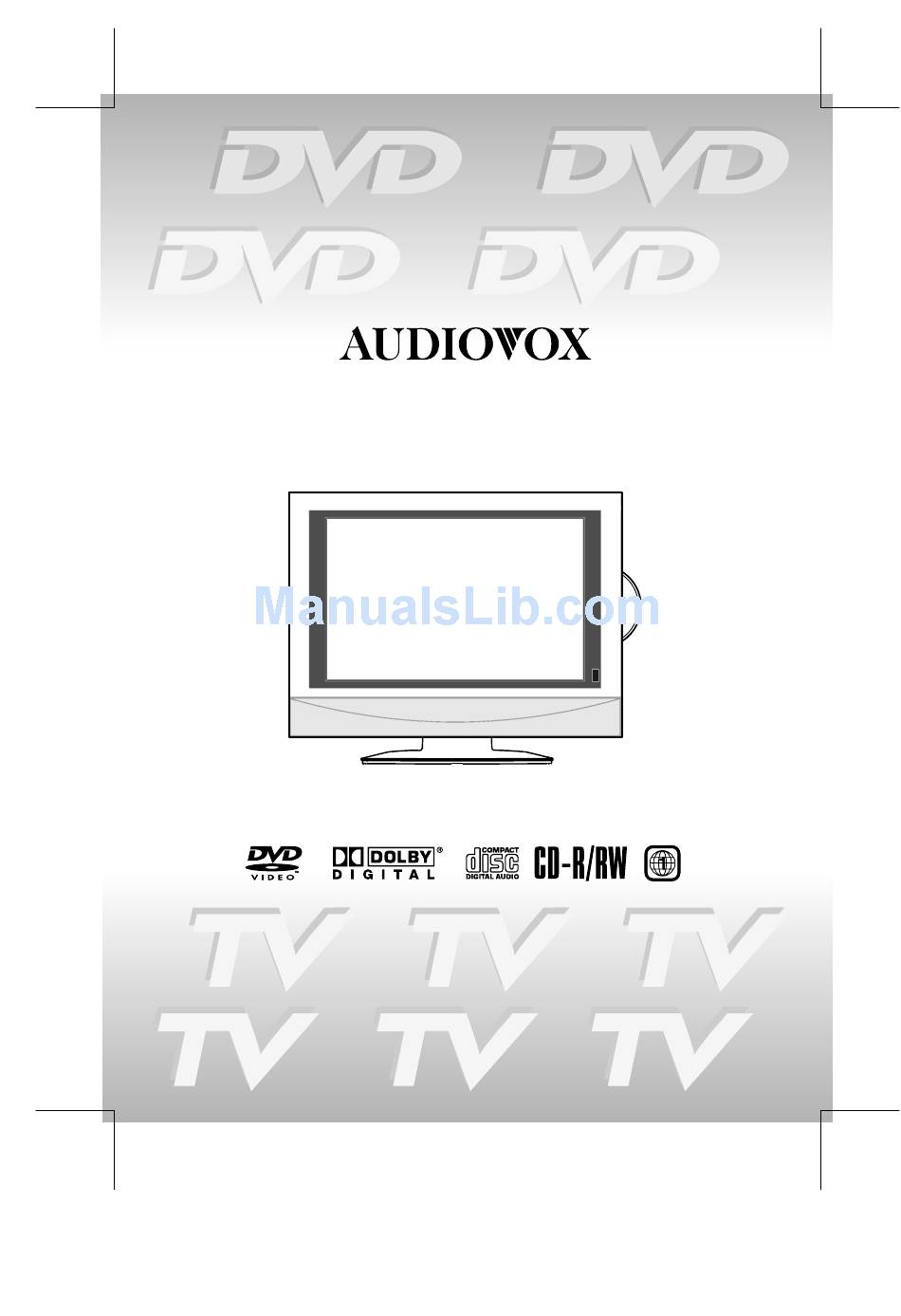

- Page 1 LCD1900 / LCD1900 / LCD1900 19" LCD TV + DVD player OWNER'S MANUAL PVS31195S2-W / AUDIOVOX Printed in China 811-311991Wxxx I/B 811-311991Wxxx SIZE : 148 X 210MM MATERIAL : 80g WOODSFREE PAPER...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS The lightning flash with an arrowhead CAUTION within a triangle alerts you to uninsulated dangerous voltage within RISK OF ELECTRIC SHOCK DO NOT OPEN the product's enclosure that could cause an electric shock. RISQUE DE CHOC ÉLECTRIQUE NE AVIS PAS OUVRIR The exclamation point within a... - Page 3 SAFETY PRECAUTIONS reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •...
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 13. Unplug this apparatus during lightning storms or when unused 2. Keep these instructions. for long periods of time. 3. Heed all warnings. 14. Refer all servicing to qualified 4. Follow all instructions. service personnel. -
Page 5: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS ....2 – 3 SPECIAL FUNCTIONS ...... 22 IMPORTANT SAFETY INSTRUCTIONS Display function (DVD) ....22 ............4 Locating a specific title (DVD) ..22 DISC FORMATS ........ 6 Locating a specific chapter/track .. 22 REMOTE CONTROL ...... -
Page 6: Disc Formats
DISC FORMATS This unit can playback: JPG-CD DVDS [8CM/12CM DISC] picture viewer CD-R/CD-RW AUDIO CDS [8CM/12CM DISC] Compatible REGION MANAGEMENT INFORMATION Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVD discs. If the region number printed on the DVD disc does not correspond to the region number of this unit, this unit cannot play that disc. -
Page 7: Remote Control
REMOTE CONTROL USING THE REMOTE CONTROL • Point the remote control at the REMOTE SENSOR located on the unit. • When using this unit in very bright light, the infrared REMOTE CONTROL SENSOR may not work properly. • The recommended effective distance for using the remote control is about 16 feet (5 meters). TO CHANGE THE REMOTE CONTROL BATTERY 1. -
Page 8: Remote Control Reference Guide
REMOTE CONTROL REFERENCE GUIDE MTS button Press to select MONO sound, STEREO sound and Secondary Audio Program (SAP). CC button Press to activate the Closed Captioning feature. This function only works on programs broadcasted with captions. SLEEP button Sets the SLEEP timer. The unit will remain ON for the time that is set, and will automatically shut off afterwards. - Page 9 REMOTE CONTROL REFERENCE GUIDE 25) SOUND button Select from preset sound settings (Personal, Voice, Music, Theater) to match the type of show you are watching. 26) DISPLAY button Change disc status information displayed on the screen. 27) PICTURE button Select from preset screen display settings to match the type of show you are watching (Standard, Personal, Movie, Dynamic &...
-
Page 10: Unit Reference Guide
UNIT REFERENCE GUIDE TOP, FRONT & SIDE VIEW 1) STANDBY/ON button PREV button Turns the unit on and off. Press PREV button to go back to previous 2) MENU button chapters/tracks. Enter the Setup menu. Press and hold to fast reverse playback. 3) FUNCTION button NEXT button Select TV, DVD, AV IN, YUV IN or PC. - Page 11 UNIT REFERENCE GUIDE BACK & BOTTOM VIEW 16 17 18 19 20 21 22 23 24 25 26 27 16) Power Cord 22) YUV IN Component Video Inputs (Y/P 17) AV IN Video Input Jack 23) YUV IN Audio Input Jacks (Left/Right) 18) AV IN Audio Input Jacks (Left/Right) 24) AV OUT Video Output Jack 19) AV OUT Audio Output Jacks (Left/Right)
-
Page 12: Connections
CONNECTIONS CONNECTING A TV ANTENNA/CABLE/SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system Note: For receiving over-the-air TV broadcasts, we recommend that you use an external fixed antenna. Should you require the use of a temporary antenna, please ensure that you purchase an antenna with sufficient ability to receive in weak signal areas. -
Page 13: Connecting To A/V Devices (Vcr, Pvr Camcorder, Game System, Etc.)
CONNECTIONS CONNECTING TO A/V DEVICES (VCR, PVR, Camcorder, Game System, etc.) Connecting to Devices with an S-Video Output To connect to A/V devices such as a VCR or camcorder: - Connect to a VCR Connect the right (red) and left (white) audio output from the VCR to the right (red) and left (white) input on this unit (Audio cable not included). - Page 14 CONNECTIONS Connecting to Devices with a Composite (yellow RCA-type) Video Output To connect to A/V devices such as a VCR or camcorder: - Connect to a VCR Connect the right (red) and left (white) audio output from the VCR to the right (red) and left (white) input on this unit (Audio cable not included).
- Page 15 CONNECTIONS Connecting to Devices with a Composite (yellow RCA-type) Video Input To connect to A/V devices such as a VCR, PVR or camcorder: - Connect to a VCR/PVR Connect the right (red) and left (white) audio input from the VCR/PVR to the right (red) and left (white) output on this unit (Audio cable not included).
-
Page 16: Video Output
CONNECTIONS CONNECTING A HIGH-DEFINITION (HD) SOURCE High-Definition (HD) Devices with component video output must be connected to the YUV input: Connect the three video outputs (Y, Pb, Pr) from the source to the corresponding video inputs on this unit (Component video cable not included). Connect the right (red) and left (white) audio output from the source to the right (red) and left (white) input on this unit (Audio cable not included). -
Page 17: Connecting A Pc
CONNECTIONS CONNECTING A PC Connect the 15-pin D-SUB PC/VGA connector from your computer to the 15-pin D-SUB PC/VGA input on this unit using a monitor cable (not included). Connect a stereo audio cable (not included) to the PC AUDIO IN jack on the bottom of this unit, and the other end to the AUDIO OUT jack on your computer’s sound card. -
Page 18: Installation
INSTALLATION REMOVING THE BASE STAND WARNING: The LCD Display is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or sharp, or anything that could scratch or damage the LCD display, come in contact with it. -
Page 19: Using Headphones
USING HEADPHONES • Turn down the volume before connecting headphones to the unit, then adjust the volume to your desired level. • When headphones are connected, no sound will come from the front speakers. Note: • Avoid listening to sound at high levels for prolonged periods of time. This may be harmful to you and may cause hearing loss. -
Page 20: Cd/Dvd Operation
CD/DVD OPERATION This owner’s manual explains the basic instructions of this unit. Some DVDs are produced to limited operation during playback. For example, many DVDs do not allow users to skip government warnings, or in some cases previews or other features. This is not a defect in the unit. Refer to the instruction notes of discs. “... -
Page 21: Skip (Forward/Reverse)
CD/DVD OPERATION SKIP (FORWARD / REVERSE) While you are playing a disc, press the NEXT button to move to the beginning of the next chapter or track. Press the PREV button to move to the previous chapter or track and automatically start playing it. -
Page 22: Special Functions
SPECIAL FUNCTIONS DISPLAY FUNCTION (DVD) Using DISPLAY, you can check the current settings of the following items: ANGLE, AUDIO and SUBTITLE. • While the disc is playing, press the DISPLAY button to display the screen shown below. LOCATING A SPECIFIC TITLE (DVD) If a DVD disc contains title numbers, you can locate a specific title by directly selecting a title number. -
Page 23: Cd/Dvd Programmable Memory
CD/DVD PROGRAMMABLE MEMORY PROGRAMMABLE MEMORY The two types of programmed playback provided by this Unit are title/chapter programmed playback and track programmed playback. TITLE/CHAPTER PROGRAMMED PLAYBACK (DVD) 1. Press the MEMORY button while the disc is stopped. 2. Enter the title numbers in . -
Page 24: Repeat Playback
REPEAT PLAYBACK REPEATING A SPECIFIC SECTION (DVD) (CD) You can play a specific section repeatedly. 1. While the disc is playing, press the REPEAT A-B button at the beginning of the section is displayed) you want to play repeatedly. 2. Press the REPEAT A-B button again at the end of the section ( is displayed) you want to play repeatedly. -
Page 25: Customizing The Function Settings
CUSTOMIZING THE FUNCTION SETTINGS LANGUAGE SETUP 1. Press the SETUP button in stop mode. 2. Use the button to change the highlight cursor. Use the button to select a language, then press the ENTER button. The screen will change to your selected language immediately. 3. -
Page 26: Tv Setup
TV SETUP MAIN MENU 1. Press the TV MENU button. 2. Use the button to select the options (Picture / Sound / Setup / TV Setting / Restore Setting). 3. The screen will change to your selected mode immediately. 4. To exit the MAIN MENU and return to the normal screen, press the EXIT button on remote control. -
Page 27: Sound Menu
TV SETUP SOUND MENU 1. Press the TV MENU button. 2. Use the button to select the Sound menu, then press the button to confirm the setting. 3. Use the button to select the options (Bass, Treble, Balance, Mode) and adjust them using the buttons. -
Page 28: Parental Setting
TV SETUP PARENTAL SETTING LOCK CODE 1. Press the TV MENU button. 2. Use the button to select the Setup menu, then press the button to confirm the setting. 3. Use the button to select the Parental menu, then press the button to confirm the setting and the menu locked screen will be displayed. - Page 29 TV SETUP PARENTAL SETTING CHILD LOCK 1. Press the TV MENU button. 2. Use the button to select the Setup menu, then press the button to confirm the setting. 3. Use the button to select the Parental menu, then press the button.
-
Page 30: Tv Setting
TV SETUP TV SETTING 1. Press the TV MENU button. 2. Use the button to select the TV setting menu, then press the button to confirm the setting. 3. Use the button to select the Channel no. setting and use the button to change the channel no. -
Page 31: Language Code List
LANGUAGE CODE LIST PVS31195_ib_AUD_eng_26-35.pmd 28/12/2006, 14:23... -
Page 32: Maintenance
MAINTENANCE CLEANING THE DISC A defective or soiled disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges. • Do NOT touch the surface of the unlabeled side of the disc. •... -
Page 33: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) No power. • Ensure the AC power cord is connected. • Turn on the unit. The remote does not • Remove any obstacles between the remote and the unit. function. • Use the remote near the unit. •... -
Page 34: Specifications
TROUBLE SHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) • Check the location of the antenna and adjust it if necessary. Bad Picture (snow, multiple images, • Make sure the antenna cable is connected firmly. • Make sure all input cables are firmly. distortion, blurry) No sound. - Page 35 Printed in China 811-311991Wxxx PVS31195_ib_AUD_eng_26-35.pmd 28/12/2006, 14:23...
