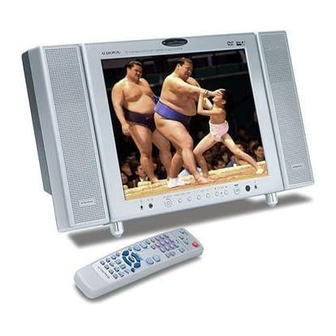

Audiovox D1210 Owner's Manual

12” lcd tv/monitor and dvd player
Hide thumbs Also See for D1210:

Advertisement

Quick Links

Download this manual
12" LCD TV/Monitor and DVD Player
D1210
Owner's Manual

Advertisement

loading

Related Manuals for Audiovox D1210

Summary of Contents for Audiovox D1210

  • Page 1 12” LCD TV/Monitor and DVD Player D1210 Owner’s Manual...
  • Page 2 A. Introduction Congratulation for selecting this multi-media system, which features a 12” LCD TV/Monitor and DVD/MP3/CD Player. It utilizes the latest state of the art electronics and is designed for use in home, offices, hotels and vehicles. The unit is compact so that you can take it with you anywhere and is designed for easy installation.
  • Page 3 9. Water – DO NOT use this product near water. For example, avoid placing it near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc… 10. Cabinet Slots – NEVER push objects or any kind into the unit through the cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.
  • Page 4 14. Power Sources – This product should be operated only from the type of power source indicated on the rear panel. If you are not sure of the type of power supply to your home consult your product dealer or local power company. 15.
  • Page 5 19. Replacement parts – When replacement parts are required, be sure the service technician has used replace- ment parts specified by the manufacturer or have the same characteristics as the original part. UNAUTHORIZED substitution may result in fire, electric shock or other haz- ards.
  • Page 6 24. Safety Caution The Lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the pres- ence of uninsulated “DANGEROUS VOLTAGE” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons. The Exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing instructions in the...

  • Page 7: Installation

    1. Reorient or relocate the TV antenna 2. Increase the separation between TV and other equipment. 3. Connect TV into separate outlet from equipment. 4. Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly ap- proved by the party responsible for compliance could void the user’s authority to operate this equipment 26.
  • Page 8 27. DVD CAUTION: This unit employs a laser system. To ensure the proper use of the unit, read this manual carefully and keep it for future reference. To prevent direct exposure to the laser radiation, do not open the cabinet. Invisible laser radiation could be present when the cabinet is opened or the interlocks are defeated.
  • Page 9 c. Macrovision This product incorporates copyright protection technology that is protected by method claims of certain U.S patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation.
  • Page 10 5) The digital audio output connector (optical) converts electrical signals into optical signals (light) and trans- fers them to an amplifier. These optical signals are immune from electrical interference, and they also have minimal effect on other equipment. C. Contents 1.
  • Page 11 D. Car Installation On the seat back (Refer to Figure 2) Top Rings Mounting Lower Rings 1. Take the unit and the mounting bag from the storage bag. Slide the unit into the mounting bag, fasten the buckle and tighten the straps and on the side of the bag. 2.
  • Page 12 Between two seats (Refer to Figure 3) 1. Take one of the supplied straps from the storage bag and connect the latch to the top metal ring on the mounting bag. Wrap the strap around the base of one the headrests. Attach the “S”...
  • Page 13 E. Controls/Indicators/Connectors (Refer to Figure 4) 1. DVD Previous 2. DVD Play 3. DVD Next 4. DVD Eject 5. DVD Stop 6. IR Headphone Sensor 7. TV Antenna Input 8. Headphone Input #1 9. AV Input 10. Power On/Off 11. DVD/TV/AV Switch 12.
  • Page 14 F. Remote Controls (Refer to Figure 5) 1. TV/DVD/AUX Select 2. DVD Number Control Select 3. Numbers 0-9 4. TV/CATV Select 5. Mute 6. Picture Select 7. Volume Up/Down (+/-) 8. DVD Eject Button 9. Up/Down-Left/Right/Enter 10. DVD Menu 11. DVD Display 12.

  • Page 15: Basic Operation

    G. DVD Player 1. Basic Operation POWER EJECT PLAY PAUSE STOP NEXT PREVIOUS FORWARD SCAN REVERSE SCAN SLOW UP/DOWN/LEFT/RIGHT ENTER NUMBERS MENU SUBTITLE AUDIO DISPLAY SETUP Turn the unit ON or OFF Eject and withdraw the disc Resume play mode Go into the standby mode (1 time) Stops at the present playing point / (2 times) Stops playing...
  • Page 16 2. Menu A DVD is divided into sections called title and chapter. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc.
  • Page 17 c. Press DISPLAY the 3rd time to display the elapsed time for the chapter. The heading will disappear automatically in about 3 seconds. d. Press DISPLAY the 4th time to display the remaining time for the chapter. The heading will disappear automatically in about 3 seconds.
  • Page 18 3) Audio During playback, press AUDIO to select the audio language you desire, with the current audio channel number (1) and the total number of audio channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automatically if the AUDIO button isn’t pressed again for 3 sec- onds.
  • Page 19 b. During playback, press REPEAT again to repeatedly play the current title. c. During playback, press REPEAT a 3rd time to cancel the re- peated playing and resume normal playback. The repeat dis- play will disappear automatically if the REPEAT button isn’t pressed again for 3 seconds.
  • Page 20 1) Select GENERAL SETUP using UP/DOWN and then press ENTER to enter the general page. a. Select TV DISPLAY using UP/DOWN, and then press RIGHT to enter the submenu. Select the TV display mode on the screen using UP/DOWN, and press ENTER to confirm the setting.
  • Page 21 * ON: The screen will show an angle mark. (If angle option is available) * OFF: the screen won’t show an angle mark. c. Select MAIN PAGE using UP/DOWN and then press ENTER to return to the main page. 2) When there’s no disc inside the player, select PREFERENCES using UP/DOWN and then press ENTER to enter the prefer- ences page.
  • Page 22 b. Select SUBTITLE using UP/DOWN, and then press RIGHT to enter the submenu. Select the subtitle language or SUBTITLE OFF you desire using UP/DOWN and then press ENTER to confirm the setting. Press LEFT to return. c. Select DISC MENU using UP/DOWN and then press RIGHT to enter the submenu.
  • Page 23 Select the parental level you desired using UP/DOWN for discs with lock-out function or multiple rating levels. It’s listed from the lowest level (1 Child) to the highest level (8 Adult). Press ENTER to enter the password verify page. Input the password in 4 digits, and then press ENTER to confirm the parental level setting.
  • Page 24 e. Select PASSWORD using UP/DOWN and then press RIGHT to enter the submenu. Press ENTER to enter the password change page. Input the old password or the default password, the new password, and the confirmed new password. Press ENTER to confirm the change.
  • Page 25 Note: The default password is 3308 and this password is always effective whether you’ve changed it to another new one or not, in case that you forget the new pass- word. To avoid others using it to set the parental level and change the password, you may note this default password by other means and delete it from this manual.
  • Page 26 H. System Operation 1. Press POWER to switch the unit on or off. The switch indica- tor will light red and the unit will go to the mode last used and stored in memory. 2. Press DVD/TV/AV to select your desired mode. When switch- ing the mode, the DVD player can memorize the present play ing point.
  • Page 27 3. Press AUTO MEMORY; all channels in TV or CATV mode are searched and tuned and the channels with signals detected are automatically stored. 4. SKIP/SEARCH selects between SKIP and SEARCH mode. In SKIP mode, the TV only stops on channels that are pro- grammed into memory when the CHANNEL UP/DOWN buttons are used.
  • Page 28 L. Support Home TV Match the color-coded plugs to the appropriate DVD outputs in the rear of the unit: Yellow (VIDEO) to Yellow, White (AUDIO L) to White, and Red (AUDIO R) to Red. M. Support External Speaker Connect the EXT. SPEAKER output to an external speaker. N.

  • Page 29: 12 Month Limited Warranty

    AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
