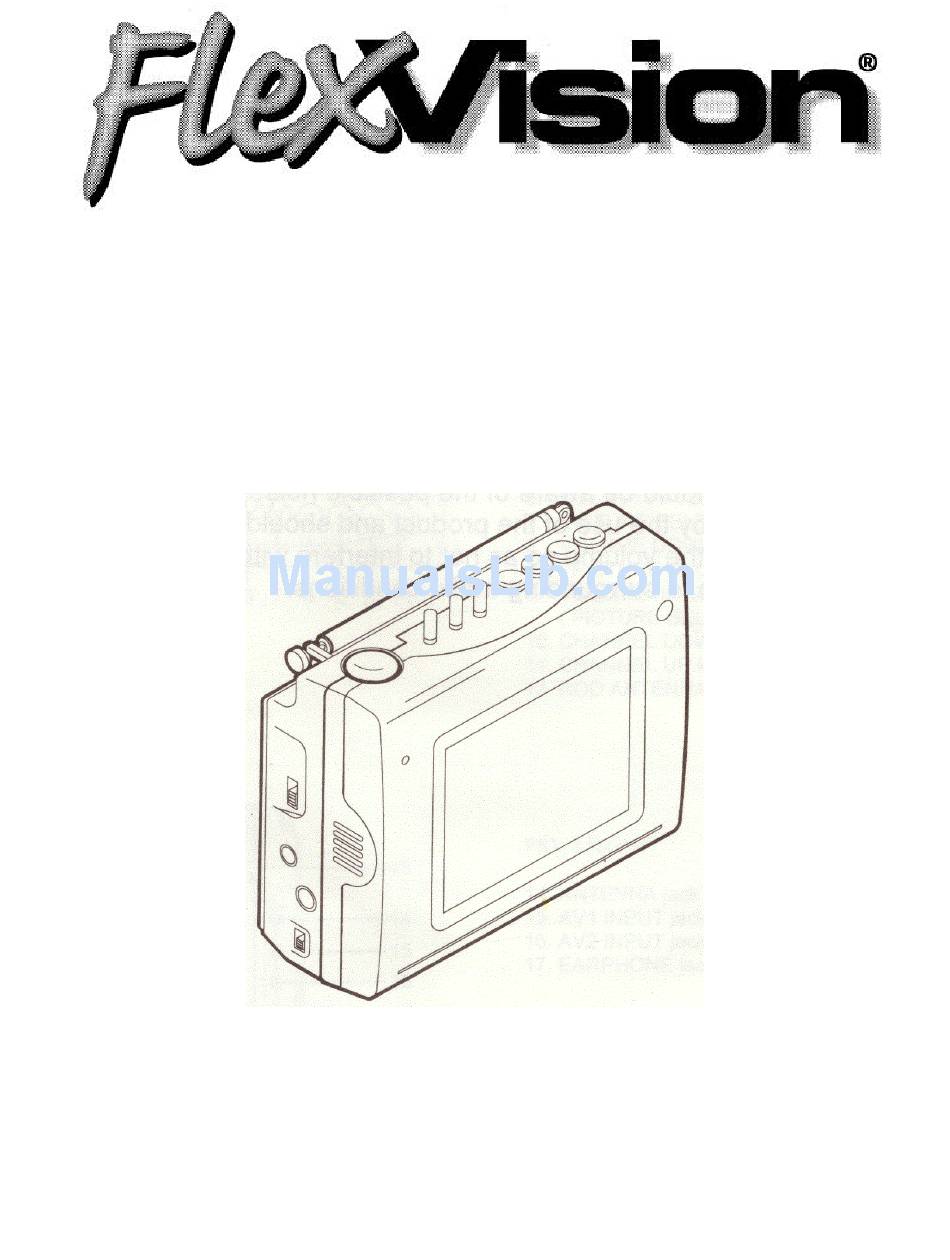

- Page 1 4”/6” TFT- LCD COLOR TV CTV-5040 / 60 INSTRUCTION MANUAL 91-S2-1005...
- Page 2 RECOMMENDED GUIDELINES FOR THE USE OF A VIDEO MONITOR/TV IN A MOTOR VEHICLE A VIDEO MONITOR/TV is designed for rear passenger viewing only. This product may only be installed in the rear seat compartment of the vehicle, out of the driver’s view. Installation in any other area of the vehicle, including anywhere within the driver’s view, is illegal in most states, provinces and countries and may lead to driver distraction resulting in an...
-
Page 3: Power Indicator
FUNCTION-------------------------------------------------------- FIG. 1 FRONT 1. POWER INDICATOR 1. REMOTE CONTROL SENSOR 1. SCREEN FIG. 2 TOP 1. POWER ON / STAND BY key 1. AUTO PROGRAM key 1. TV / AV1 / AV2 key 1. PICTURE SELECT key 1. VOLUME DOWN key (PICTURE SELECT DOWN) 1. - Page 4 FIG. 4 LEFT 18. SPEAKER 19. BACKLIGHT HIGH/LOW switch (Model 5040 only) 20. DIVERSITY OUTPUT jack 21. DC INPUT jack 22. POWER ON / OFF switch FIG. 5 BACK 23. STAND 24. FIXING NUT LIFT FIG.6 REMOTE CONTROL UNIT 31. POWER ON / STAND BY key 32.
- Page 5 INSTALLATION-------------------------------------------------- POWER 1. One of the following power sources can be used. 1) AC power adapter. 2) Car battery (with car cord connected). 3) 8 x UM-3 batteries (optional battery box used). For longer operation time, the alkaline batteries are recommended and move the BACKLIGHT HIGH / LOW switch (19) to “LO”...
- Page 6 TV OPERATION------------------------------------------------- 1. Pull out the ROD ANT (2) or connect an external antenna to ANT jack (14) for better reception. 2. Used in the vehicle, the diversity unit (with boost function) is recommended to use to improve the reception performance. 3.
- Page 7 8. Picture Adjustment 1) Press the PICTURE SELECT key (35) several times, the screen will appear the picture control bar in the following order sequentially. 2) Before the disappearance of the PICTURE SELECT UP (VOLUME UP) (9,38) or DOWN (VOLUME DOWN) key (8,37), to adjust the picture quality.
- Page 8 MONITOR OPERATION--------------------------------------- 1. Input the AV signal from the sources (VCR, Video camera, GPS, etc.) to the AV1 (15) and /or AV2 (16) jacks. The yellow terminal of the AV cord connects with the video signal; the white terminal with audio. 2.
-
Page 9: Important Notes
IMPORTANT NOTES------------------------------------------- 1. Do not expose to temperature extremes or direct sunlight. (See specifications) 2. Avoid dust and wet. 3. Avoid dropping and strong impact. 4. Turn power off and unplug the adapter when not in use or thundering. 5. Never watch while driving a vehicle. 6. -
Page 10: Troubleshooting
TROUBLESHOOTING----------------------------------------- Before assuming malfunction of TV, check as follows: SYMPTOMS POSSIBLE CAUSES WHAT TO DO No power AC adapter or car cord not Connect correctly properly connected Fuse of car cord blown Replace fuse Dead batteries Replace batteries Incorrect polarity of Make sure the battery batteries (battery box poles are properly... -
Page 11: Display Screen
SPECIFICATIONS----------------------------------------------- CTV-5040 / 60 TYPE Color LCD TV DISPLAY SCREEN SIZE 4 inches (82.1 x 61.7mm)(W x H) 6 inches (112.9 x 84.7mm) (W x H) ELEMENT TFT-LCD FORMAT 4”: 480 (W) x 234 (H) Total 112,320 dots 6”: 720 (W) x 234 (H) Total 168,480 dots BACK LIGHT Cold cathode fluorescent lamp... -
Page 12: Accessory List
HP-375 Studio Quality Headphones HP375 Unlike household electronics, all of our products have been specifically designed and tested for the mobile environment and are only available through ASA. To order any of these products, please contact Audiovox Specialized Applications at www.asaelectronics.com or 800-688-3135.
