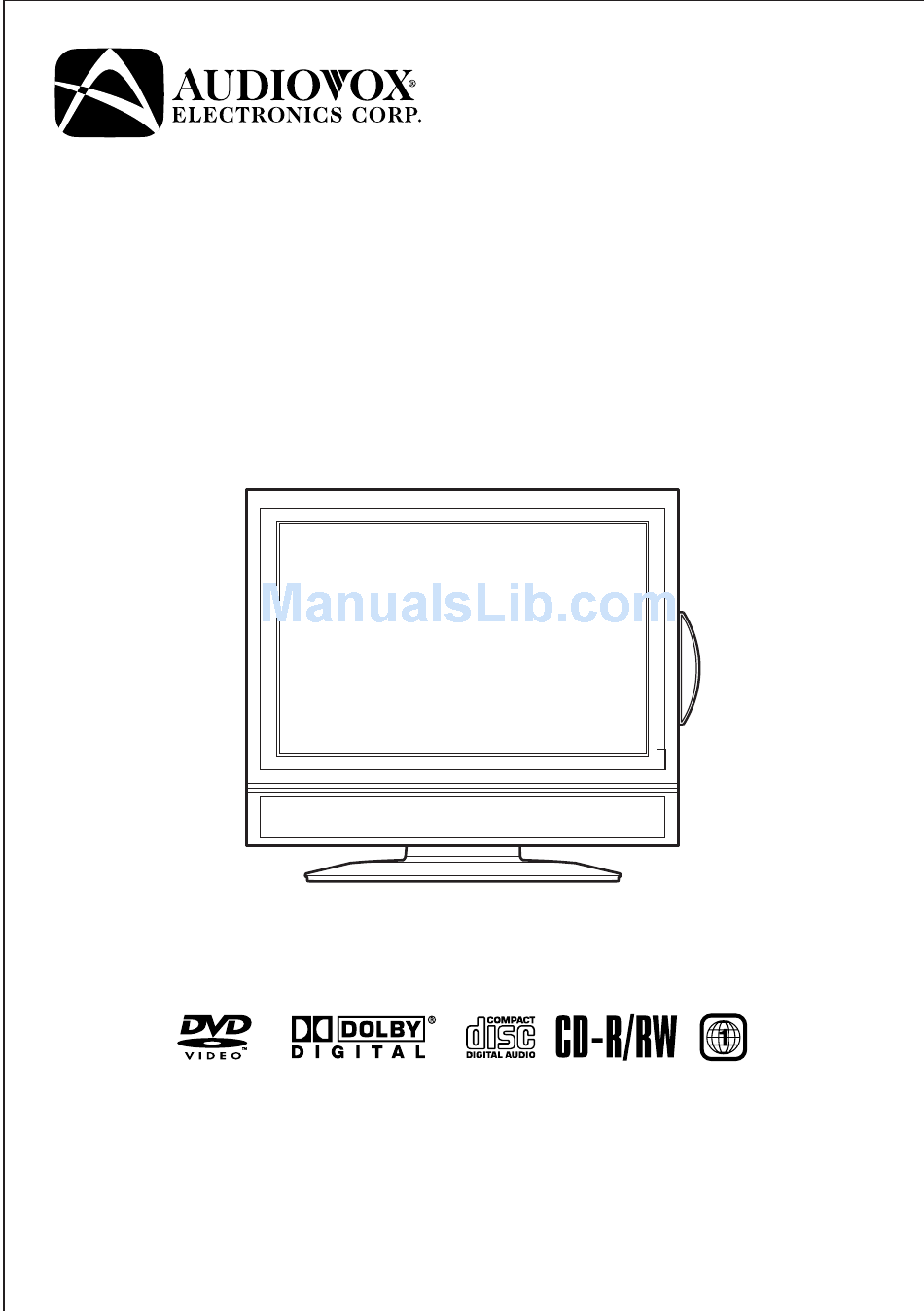

- Page 1 FPE1708DV 17” HD FLAT PANEL LCD TV WITH BUILT-IN DVD PLAYER OWNER'S MANUAL FOR ASSISTANCE CALL CUSTOMER SERVICE AT 1-800-645-4994 128-8325 OR VISIT US AT WWW. AUDIOVOX.COM...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning fl ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 4: Table Of Contents
SAFETY PRECAUTIONS ... 1 IMPORTANT SAFETY INSTRUCTIONS ..2 MAINTENANCE ... 2 CONTENTS ... 3 QUICK INSTALLATION ... 4 DISC FORMATS ... 5 ACCESSORIES ... 6 GETTING STARTED ... 6 CONTROL REFERENCE GUIDE ... 7 – 9 CONNECTIONS ... 10 – 13 Connecting a TV Antenna / Cable / Satellite ... -
Page 5: Quick Installation
QUICK INSTALLATION When you turn on your television set for the fi rst time, be sure to place it on a solid stable surface. To avoid danger, do not expose the TV to water, or a heat source (e.g. lamp, candle, radiator). Do not obstruct the ventilation grid at the rear and be sure to leave suffi... -
Page 6: Disc Formats
NOTES ON COPYRIGHT It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public or rent copyrighted material without permission. Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936 licensed for limited viewing uses only. DVDs are copy protected, and any recordings made from these discs will be distorted. -
Page 7: Accessories
Please check and identify the supplied accessories. Remote control (with batteries) ... x 1 USING THE REMOTE CONTROL • Point the remote control at the remote sensor located on the unit. • When there is a strong ambient light source, the performance of the infrared remote sensor may be degraded, causing unreliable operation. -
Page 8: Control Reference Guide
CONTROL REFERENCE GUIDE STANDBY / ON button Press to turn ON the unit or put it in STANDBY (OFF) mode. 2. TV button Press to switch to TV mode. DVD button Press to switch to DVD mode. AV button Press to switch to source connected to AV HD button Press to switch to source connected to YUV IN (component). - Page 9 CONTROL REFERENCE GUIDE 17. FUNCTION button Press to switch between TV / DVD / AV IN / YUV IN / PC IN. 18. LAST CH button Press to switch repeatedly between the last two channels displayed. 19. MUTE button Press to turn off the sound. 20.
-
Page 10: Control Reference Guide ........ 7
CONTROL REFERENCE GUIDE 1. Color LCD Screen button Turns the unit on and off. PLAY button Press to start or resume playback of a disc. STOP button Press to stop playing a disc. 5. MENU button Press to display the on-screen TV menu. 6. -
Page 11: Connections
CONNECTING A TV ANTENNA / CABLE / SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system Connecting a Digital Antenna The tuner in this TV receives ATSC TV signals from an antenna. -
Page 12: Connecting Devices With A Composite (Yellow Rca-Type) Video Output
CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE) VIDEO OUTPUT To connect A/V devices such as a VCR, video game system or camcorder. Connecting to a VCR / Video Game System / Camcorder Connect the AUDIO / VIDEO cable (not included) as shown. Make sure you connect the cable from the other equipment (AUDIO and VIDEO OUT) to this unit (AUDIO and VIDEO IN). -
Page 13: Connecting A High-Defi Nition (Hd) Source
CONNECTING A HIGH-DEFINITION (HD) SOURCE High-Defi nition (HD) Devices with component video output must be connected to the YUV input. Connect the component video cable and audio cable (not included) as shown. Make sure you connect the component video cable and audio cable from the other equipment (COMPONENT VIDEO OUT and AUDIO OUT) to this unit (COMPONENT VIDEO IN and AUDIO IN - YUV IN). -
Page 14: Connecting An Audio Amplifi Er
CONNECTING AN AUDIO AMPLIFIER This connection allows you to use an audio amplifi er and external speakers. Connect the AUDIO cable (not included) as shown. Make sure you connect the cable from the other equipment (AUDIO IN) to this unit (AUDIO OUT). CONNECT THE POWER CORD •... -
Page 15: Installation
REMOVING THE BASE STAND WARNING: The LCD Display is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. -
Page 16: Using Headphones
USING HEADPHONES • Turn down the volume before connecting headphones to the unit, then adjust the volume to your desired level. • W h e n h e a d p h o n e s a r e connected, no sound will come from the front speakers. -
Page 17: Tv Setup
Note: Some setting items on the menu screen may not activate depending on what mode the unit is currently in (TV/AV in/YUV in/PC in/DVD mode). PICTURE MENU 1. Press the MENU button. 2. Press the button to enter PICTURE settings. 3. -
Page 18: Time Menu
TIME MENU 1. Press the MENU button. 2. Use the button to select TIME, then press the button to enter the TIME settings. 3. Use the button to select the options (OSD Duration, Sleep Timer, Time Zone or Day Saving Time). -
Page 19: Parental Menu
PC Set Up (in PC mode only) - Resolution : 1,440 x 900 max - Refresh Frequency : 60Hz max H - Pos : Center the image by moving it left or right. V - Pos : Center the image by moving it up or down. - Page 20 Parental 1. Use the button to select various Parental settings. Adjust them using the button, or press the to go into the detailed settings. 2. Press the MENU button to return to the previous menu. 3. Repeat steps 1 - 2 to adjust other options. 4.
-
Page 21: Tv Menu
TV MENU (For TV Mode Only) 1. Press the MENU button. 2. Use the button to select TV, then press the button to enter the TV settings. 3. Use the button to select the options (Antenna, Auto Scan, Auto Scan Add CH, Channel Skip, Channel No., Channel Label or DTV Signal). -
Page 22: Cd/Dvd Operation
CD/DVD OPERATION This owner’s manual explains the basic instructions of this unit. Some DVDs are produced with limited operation during playback. For example, many DVDs do not allow users to skip government warnings, or in some cases previews or other features. This is not a defect in the unit. Refer to the instruction notes of discs. -
Page 23: Fast Forward / Fast Reverse
CD/DVD OPERATION FAST FORWARD / FAST REVERSE 1. Press the SEARCH SEARCH button when a disc is playing. • Each time the SEARCH following sequence: 2. Press the PLAY button when you reach the desired point to resume playback at normal speed. SLOW-MOTION PLAY (DVD) 1. -
Page 24: Special Functions
SPECIAL FUNCTIONS DISPLAY FUNCTION (DVD) While the disc is playing, press the DISPLAY button repeatedly to display information on operation status. LOCATING A SPECIFIC TITLE (DVD) If a DVD disc contains title numbers, you can locate a specifi c title by directly selecting a title number. 1. -
Page 25: Repeating A Single Track (Cd)
REPEAT PLAYBACK You can play a single track or an entire disc repeatedly. Repeating a single track (CD) You can play the same track repeatedly. 1. While the disc is playing, press the REPEAT button until the “ The current track is played repeatedly. Repeating an entire disc 2. -
Page 26: Customizing The Dvd Function Settings
CUSTOMIZING THE DVD FUNCTION SETTINGS LANGUAGE SETUP 1. Press the SETUP button in stop mode. 2. Use the button to select the option (OSD Language, Audio, Subtitle or Disc Menu), press the 3. Use the button to select your preferred language, then press the ENTER button to confi... -
Page 27: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) • Check that the AC power cord is connected. No power. • The unit is not turned on. The remote does not • Remove any obstacles between the remote and the unit. function. • Use the remote near the unit. •... - Page 28 Unit : INCH 4 1/16 FPE1708DV_UL_IB_MSTAR+MTK_E21-27.indd 27 FPE1708DV_UL_IB_MSTAR+MTK_E21-27.indd 27 17 7/8 6 5/8 E - 27 Printed in China 811-311791W230 4/17/2008 2:59:33 PM 4/17/2008 2:59:33 PM...
