Rail King Trolley Car Operating Instructions Manual

Hide thumbs Also See for Trolley Car:

Advertisement

Quick Links

www.railking.com
Trolley Car

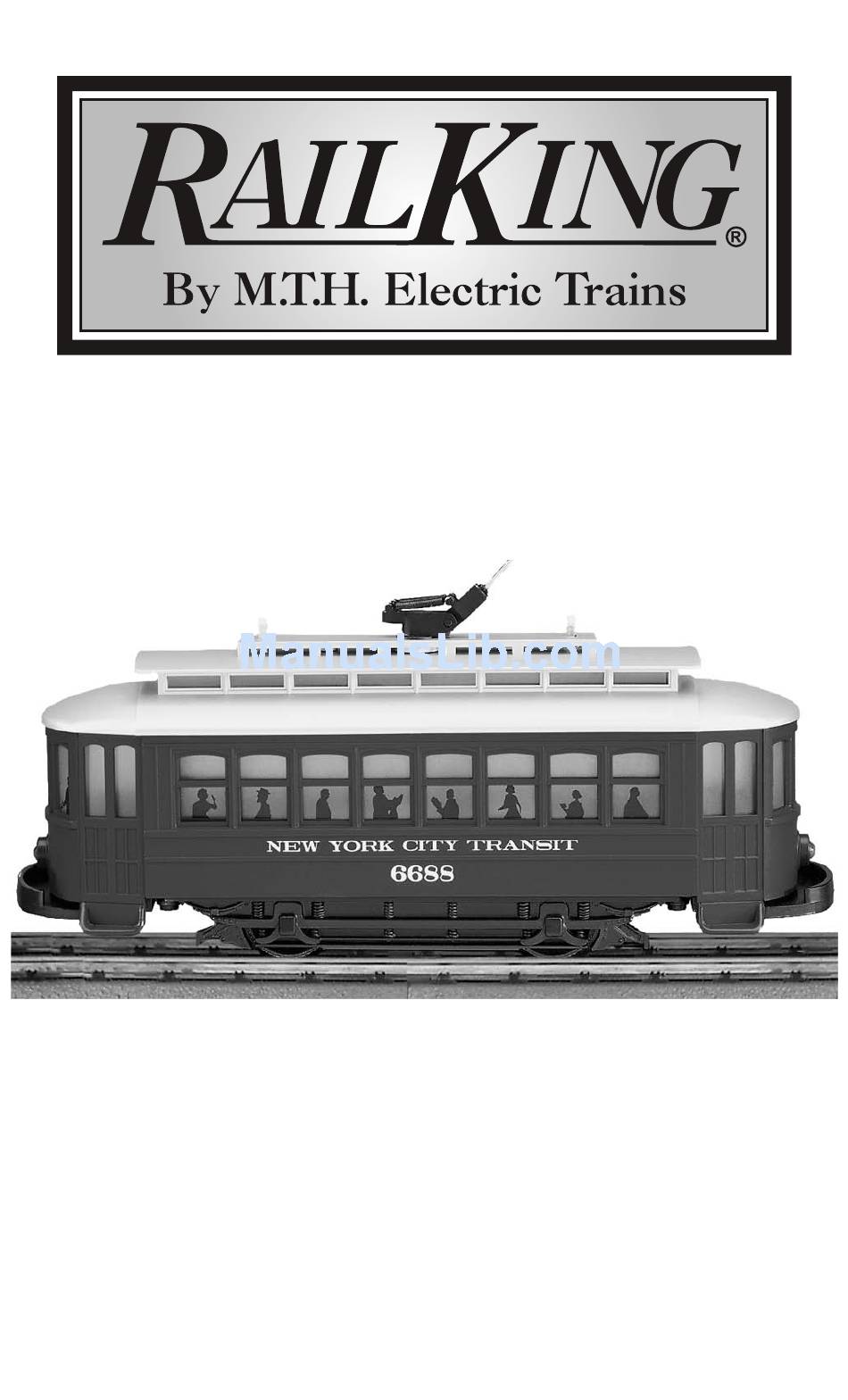

OPERATING INSTRUCTIONS

Your new RailKing Trolley Car is designed to bring excitement to someone new to
model railroading or to add fun to an existing layout. The trolley's sturdy ABS
plastic construction with all-metal wheels and gears are designed for years of
operating fun.
PLEASE READ BEFORE USE AND SAVE
www.mthtrains.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trolley Car and is the answer not in the manual?

Questions and answers

Summary of Contents for Rail King Trolley Car

  • Page 1: Operating Instructions

    Trolley Car OPERATING INSTRUCTIONS Your new RailKing Trolley Car is designed to bring excitement to someone new to model railroading or to add fun to an existing layout. The trolley’s sturdy ABS plastic construction with all-metal wheels and gears are designed for years of operating fun.
  • Page 2: Table Of Contents

    Lubricating the Trolley Car ........
  • Page 3: Compatibility

    • Place the trolley car on the track and apply power to run. Once power has been applied, the trolley car will immediately begin moving. The trolley will reverse direction when the Automatic Reversing Bumper Mechanism (ARBM) in its bumper is depressed.
  • Page 4: Lubricating The Trolley Car

    The trolley car’s internal gearing in the power trucks has been greased at the factory and should not need additional grease until after 50 hours of operation or one year, whichever comes first.
  • Page 5: Lamp Replacement

    Lamp Replacement The trolley uses two LEDs for directional headlights and two incandescent bulbs for interior lights. To replace the headlights or interior lights remove the four screws that attach the body to the frame, as shown in figure 2. Lift the body from the frame and replace the bulbs. Note: Although the body shell can be rotated 180 degrees and still be fitted to the frame, the directional lights will only work properly in the original orientation.
  • Page 6: Transformer Compatibility Chart

    Transformer Compatibility and Wiring Chart The chart below lists many of the compatible transformers and how the terminals on these compatible transformers should be attached to your layout. Transformer Min/Max. Power Transformer Center Rail Outside Rail Model Voltage Rating Type MTH Z-500 Red Terminal Black Terminal...
  • Page 7: Service And Warranty Information

    Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble- shooting techniques that may correct the problem. Additional information may be found on the M.T.H. Website. Should you still require service, follow the instructions below to obtain warranty service.
