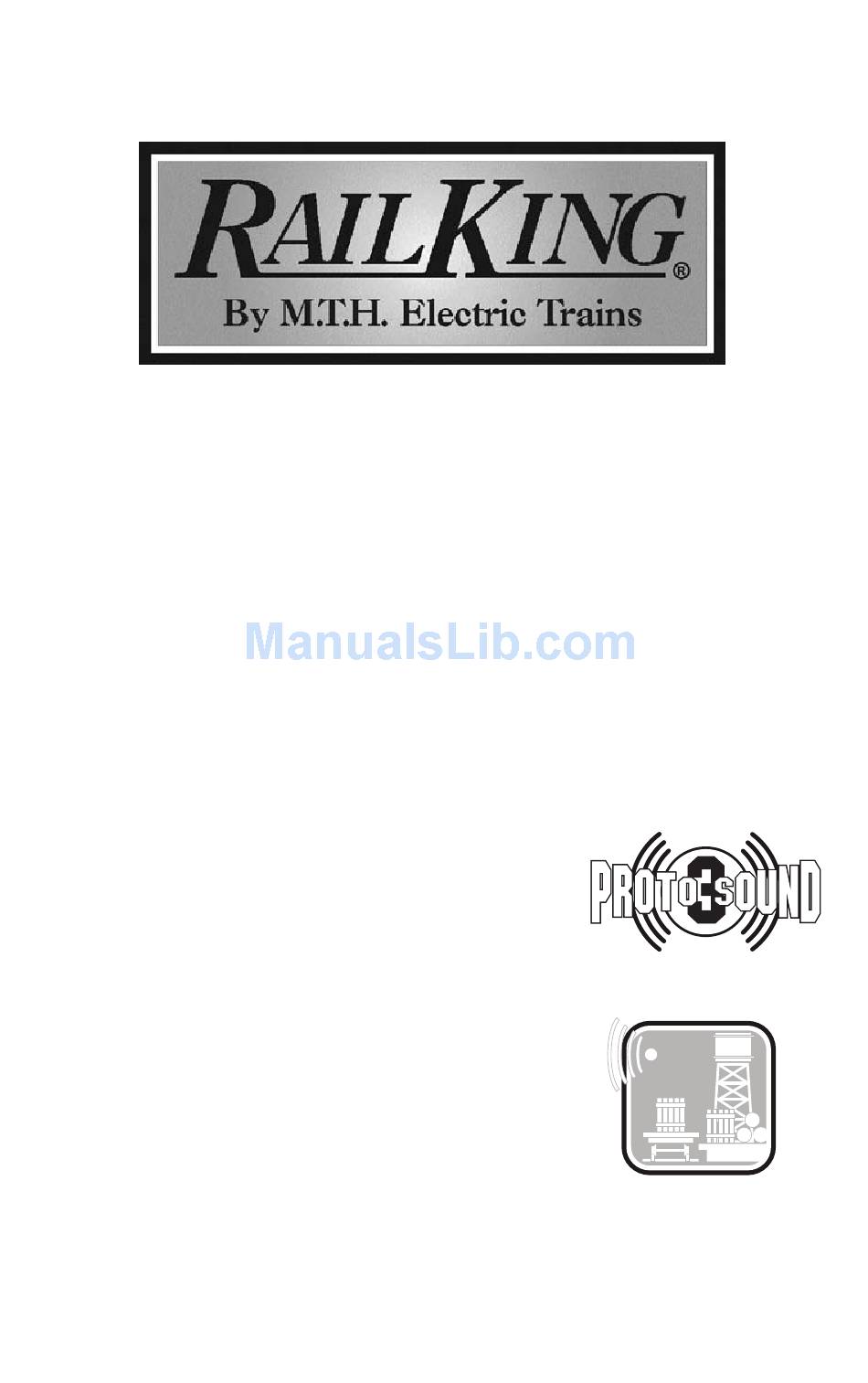

RAILKING SD60
DIESEL ENGINE
OPERATOR'S MANUAL
Compatibility
This engine will operate on any
traditional O-31 Gauge track system,
including M.T.H.'s RealTrax® or
ScaleTrax™ or traditional tubular
track. It is also compatible with most
standard AC transformers. (See pages
46 and 47 for a complete list of
compatible transformers, power packs
Freight Yard Sound
and wiring instructions.)
PLEASE READ BEFORE USE AND SAVE
www.mthtrains.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel
