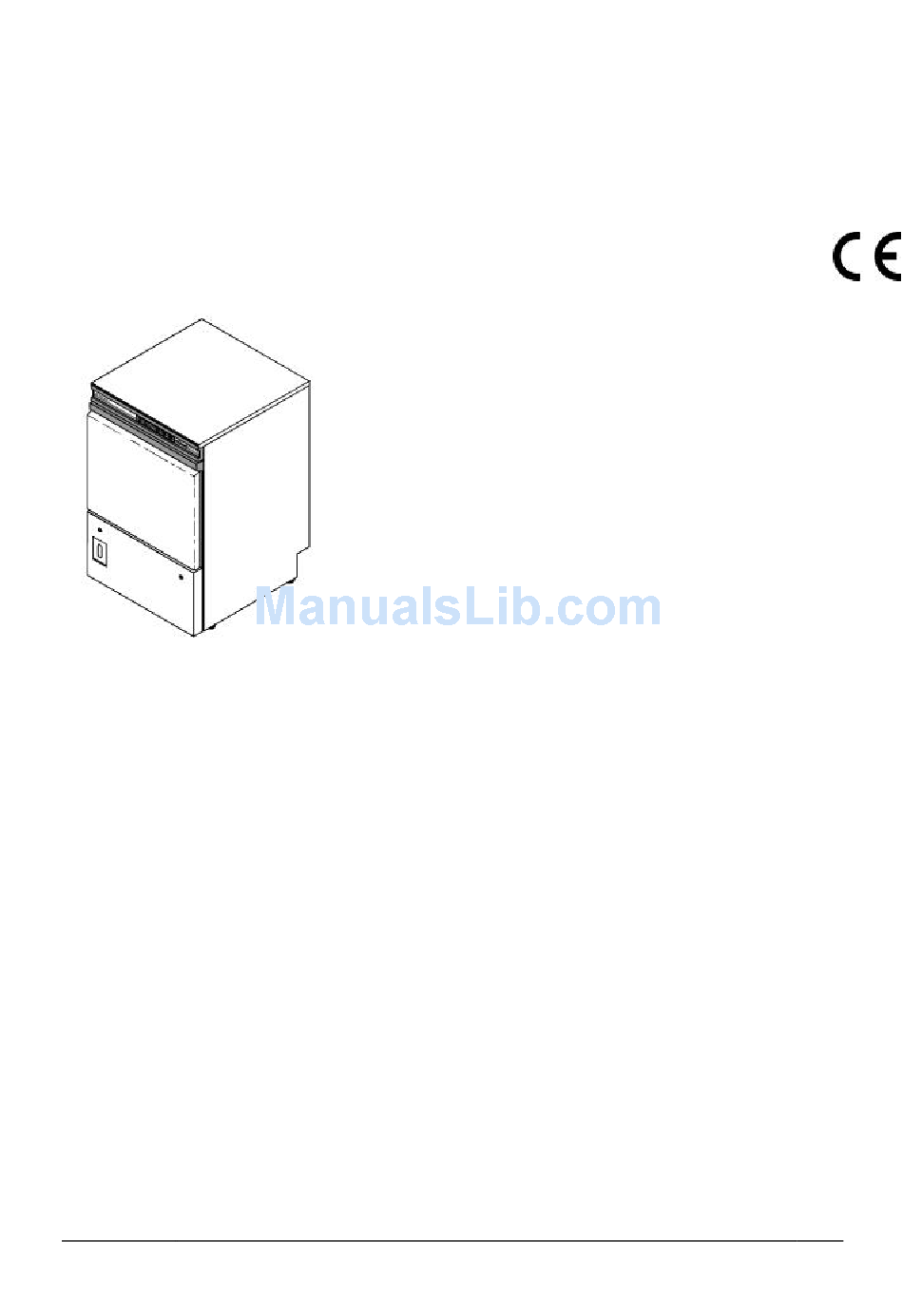

Winterhalter Gastronom Dishwasher GS 14 / GS 14E
1. Intended purpose
The Winterhalter Gastronom dishwashers GS 14, GS 14E, GS 15 and GS 15E are designed for
cleaning all types of kitchenware used in catering establishments. They may only be used for this
purpose, and in accordance with the operating instructions.
Any other usage or modification of the machine's design without our written consent will exempt us from
all guarantee and product liability obligations.
2. Installation and initial start-up
The machine must be installed and connected to the on-site supply and waste pipes in accordance
with the "Installation instructions for Winterhalter Gastronom glass and dish washing machines".
The initial start-up (or so-called "running-in" phase) and the briefing of the machine operator must be
performed by Winterhalter service technicians in accordance with the "Start-up regulations for
Winterhalter Gastronom dish and utensil washing machines". For this purpose, you should contact
the Winterhalter representative responsible for your factory once the machine has been correctly
connected to the on-site supply pipes.
Your dishwasher is not ready to be put into operation until all connections have been
completed.
89000825
10/98 sch
GS 15 / GS 15E
Contents
1. Intended purpose
2. Installation and initial start-up
Winterhalter Gastronom GmbH
Postfach 1152
D-88070 Meckenbeuren
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS 14 and is the answer not in the manual?

Questions and answers

Related Manuals for Winterhalter Gastronom GS 14

Summary of Contents for Winterhalter Gastronom GS 14

  • Page 1: Table Of Contents

    13. Emission data 1. Intended purpose The Winterhalter Gastronom dishwashers GS 14, GS 14E, GS 15 and GS 15E are designed for cleaning all types of kitchenware used in catering establishments. They may only be used for this purpose, and in accordance with the operating instructions.

  • Page 2: Safety Information For The Operator

    GS 14E and GS 15E only Water treatment indicator lamp: This LED lights up when the salt level is low. It can also be optionally installed in the GS 14 and GS 15 to indicate when the water treatment unit is worn out. Optional extra Detergent supply indicator lamp This lights up when the detergent container is empty.

  • Page 3: Before The Wash

    Close the door. should switch on the machine briefly after adding the initial dose. H) Press the power switch (1) (lights up when pressed). Press pushbutton (3). 89000825 Winterhalter Gastronom GmbH 10/98 sch Postfach 1152 D-88070 Meckenbeuren...

  • Page 4: Topping Up The Regenerating Salt (Gs 14E, Gs 15E)

    In this case, fill the salt container with special ”Programme 1” button (3). Programme duration: regenerating salt for water softeners. GS 14 approx. 150s = 24 racks/h GS 14E approx. 150s = 24 racks/h GS 15 approx. 75s = 48 racks/h GS 15E approx.

  • Page 5: After The Wash

    This button lights up during operation. To end the wash cycle, press pushbutton (5) again. Then activate Programme 1 by pressing button 3. 89000825 Winterhalter Gastronom GmbH 10/98 sch Postfach 1152 D-88070 Meckenbeuren...
  • Page 6 Leave the door of the machine open after cleaning. J) Re-insert surface strainers and There is a catch provided for this purpose. standpipe into the wash tank by twisting gently. Winterhalter Gastronom GmbH 89000825 Postfach 1152 10/98 sch D-88070 Meckenbeuren...

  • Page 7: Care And Maintenance

    We recommend that you have this done by a Winterhalter service technician. Use suitable cleaning agents and preservatives to treat the outside of the machine. We recommend Winterhalter Gastronom stainless steel cleaner for this purpose. 89000825 Winterhalter Gastronom GmbH...

  • Page 8: Operating Faults

    Indicator lamps in programme keys (3) and (4) are flashing and indicator lamp in switch (5) is cycle was exceeded. Press switch (5), then turn the constantly illuminated. machine off and on again. Winterhalter Gastronom GmbH 89000825 Postfach 1152 10/98 sch D-88070 Meckenbeuren...

  • Page 9: Optional Extras

    In the event of a resale of the dishwasher, the operating instructions must be passed on to the new owner/ope rator together with the machine. 13. Emission data Noise emission data Workplace-related emission level measured according to EN ISO 11202: L pAeq = 60 dB 89000825 Winterhalter Gastronom GmbH 10/98 sch Postfach 1152 D-88070 Meckenbeuren...
