5. Remove the 13 screws E retaining the panels on
both sides of the main unit.
6. Remove the 14 screws F attaching the MAIN PCB to
the bottom of the main unit.
7. Remove the MAIN PCB by lift up the arrow mark.
1-6
E
E

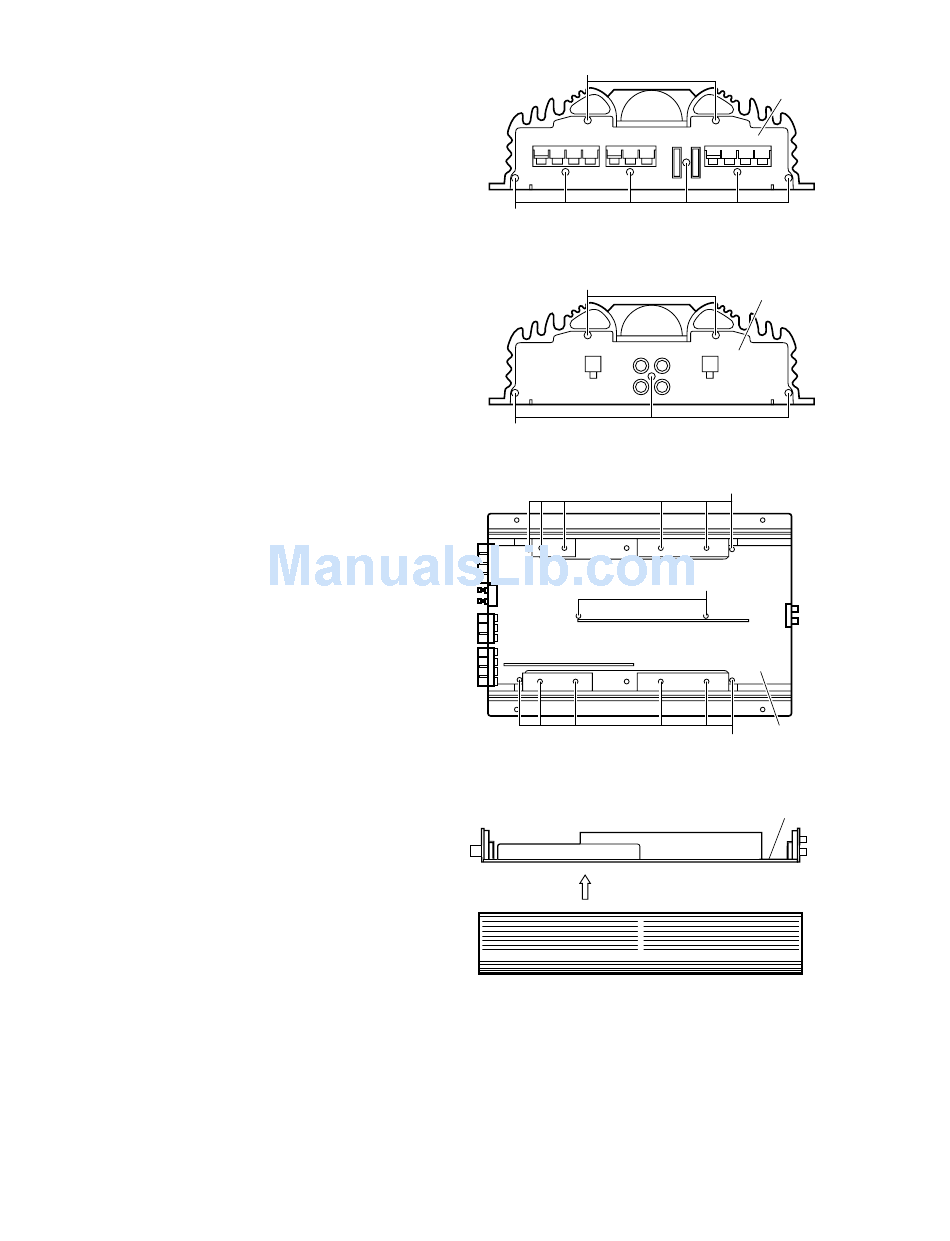

Fig. 5
E
E
Fig. 6
Fig. 7
(Side view)
Fig. 8
Rear panel
Front panel
F
F
MAIN PCB
F
MAIN PCB
