TOUCH SCREEN OPERATIONS

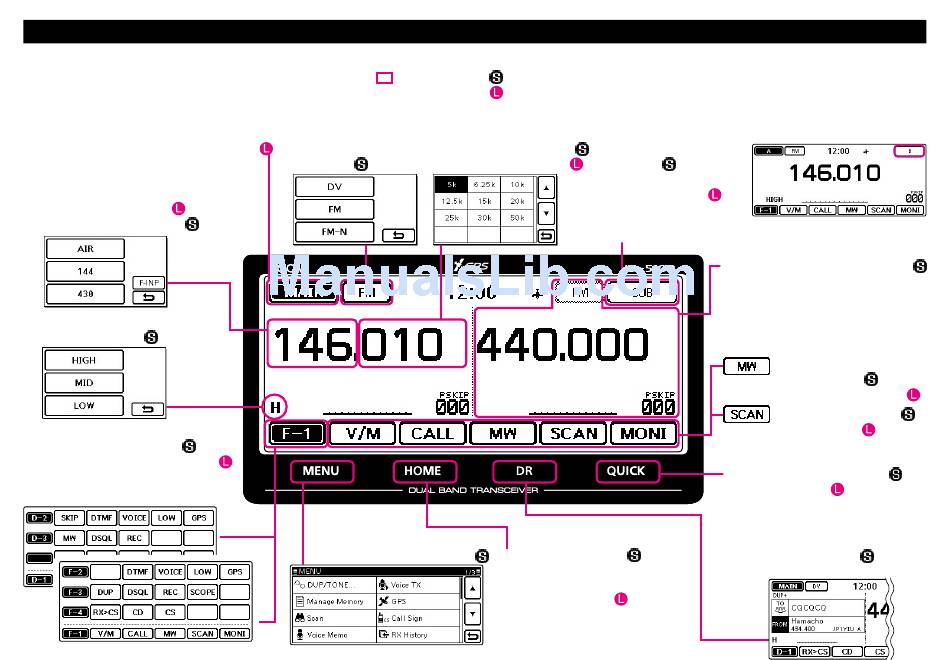

About the Touch area
■
Areas you can touch for various operations are shown with a "
• This page describes the main operations of the touch screen. See the instruction
manual for other operations.
Dual or Single band display selection:
• MAIN band: Used for TX or radio's settings
• SUB band: Used for the Dualwatch operation
"MHz" tuning selection:
Operating band selection:
TX power selection:
Function menu selection:
Displays the Function menu list:
In the DR screen
(Operating Mode: DV)
In the VFO mode (Operating Mode: DV)
" border.
"kHz" tuning selection:
Operating mode
Tuning step selection:
selection:
Displays the Menu screen:
Touch operation
■
(Short touch): If the display is touched briefly, one short beep sounds.
(Long touch): If the display is touched for 1 second, one short and one
long beep sound.
• After the beep, the operation is enabled.
Sets MAIN band to the
right side:
Dual or Single band
display selection:
• In the Single band, touch
[B] to set the B band as
the MAIN band.
ID-5100
Home CH selection:
• Selects the Home CH that
you set in the QUICK menu.
Home CH setting:
Sets MAIN band to the right side:
• Touch operation on the SUB band is en-
abled when "Touch Operation (Sub)" is set
to "Function Select" in the Menu screen.
Function menu operations
• The following operations are examples.
Displays the Memory
Write window:
Writes to a blank CH:
Scan type selection:
Starts a scan:
Displays the QUICK Menu:
Mutes the audio:
Displays the DR screen:
• D-STAR settings can easily be made.
