    Installation User Guide Cooker CornuFé 1908...
  • Page 3 Dear Customer, Thank you for purchasing a La Cornue cooker. We hope that you will really enjoy preparing delicious meals with it. The aim of this guide is to familiarize you with the potential of a professional quality appliance designed for domestic use and to facilitate its upkeep.
  • Page 4 BP 99006 - 95070 Cergy Pontoise Cedex RANCE Tel: +33 (0)1 34 48 36 36 Fax: +33 (0)1 34 64 32 65 www.lacornue.com e-mail: a.table@la-cornue.com LA CORNUE - Installation and User Guide GB “CornuFé 1908” December 2011 - Anna Kowalczyk 08NOTINSTALFE8/GB-1...

  • Page 5: Table Of Contents

    Contents CONTENTS ONTENTS WARNING ........................... 4 DESCRIPTION .......................... 9 1. General description ....................9 2. Dimensions ......................... 9 3. Energy power and gas flow rates ................10 4. Power ratings for the electrical elements ............10 5. Rating plate ....................... 10 BEFORE DELIVERY ......................

  • Page 6: Warning

    Read all instructions before using this appliance. Save these instructions for future reference ARNING his appliance must be installed by a qualified professional in accordance with the current regulations in the country where the appliance is installed and must only be used in a well ventilated area.
  • Page 7 Warning WARNING ARNING If you smell gas: u Do not turn electric switches on or off. u Do not smoke. u Do not use naked flames. u Do turn off the gas at the meter or cylinder. u Do open doors and windows to get rid of the gas. u Call your gas supplier.
  • Page 8 Warning WARNING ARNING When the oven is on DO NOT leave the oven door open for longer than necessary. Before using the cooker make sure all the packing materials have been removed. Destroy the carton and plastic bags after unpacking the range. Never allow children to play with packaging material.
  • Page 9 Warning WARNING ARNING Flammable products can ignite on contact with a burner flame or a warm surface, leading to serious burns. Use only oven gloves or kitchen gloves that are dry. Using wet gloves on warm surfaces can lead to burns caused by the vapour. Avoid all contact bet- ween oven gloves and warm heating elements.
  • Page 10 Warning WARNING ARNING This appliance is meant for domestic cooking only (non professional ) and was designed to be used by individuals in their own homes. It is not intended to be used outside the building. In the event of non-domestic use, the manufacturer shall not incur any liability, and the warranty shall be considered void.

  • Page 11: Description

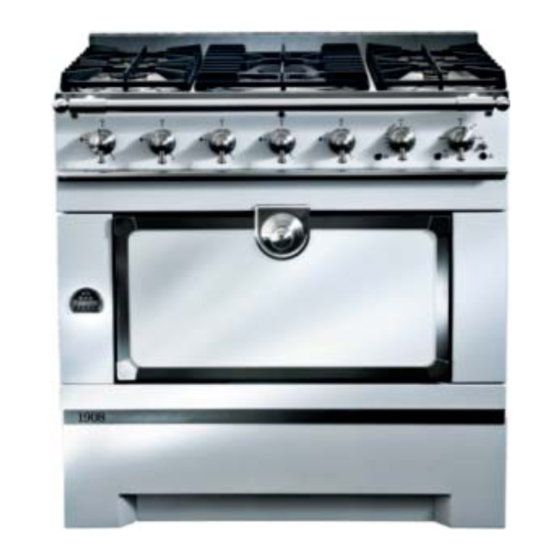

    General description DESCRIPTION ESCRIPTION 1. G ENERAL ESCRIPTION CornuFé 1908 model: FE8XXG0ER1 XX may be replaced by letters or figures. Model consisting of one large vaulted gas oven fitted with an electric grill and a cooktop with 5 gas burners. 2.

  • Page 12: Energy Power And Gas Flow Rates

    Energy Power DESCRIPTION 3. E NERGY OWER AND ATES All of our appliances belong to Category II and are designed for gases from the second and third groups. The gas used can be either natural gas, propane or butane, depending on availability. Refer to pages 19 –...

  • Page 13: Before Delivery

    All requirements and regulations in force regarding the ventilation of rooms where gas appliances are installed should be respected. It is essential that the room where the ”La Cornue” cooker will be installed has excellent ventilation, i.e. to the outside for vapour and burnt gases and a fresh air inlet.

  • Page 14: Electrical Supply

    ) must be protected with a stainless steel plate or ceramic tiles. La Cornue offers you a wide choice of stainless steel plates adapted to the size of your stove 2.

  • Page 15: Gas Supply

    Gas supply BEFORE DELIVERY Due to the power of La Cornue appliances, a simple plug and socket connection is not recommended. The cooker must be connected to the correct electrical supply as stated on the voltage label on the cooker, through a suitable cooker control unit, incorporating a double-pole switch, having a contact separation of at least 3 mm in all poles.

  • Page 16: Handling And Installation Instructions

    Unpacking the Cooker HANDLING AND INSTALLATION INSTRUCTIONS ANDLING AND NSTALLATION NSTRUCTIONS 1. U NPACKING THE OOKER Do not take any packaging off the cooker until it is directly in front of the place it is to be installed (unless it will not fit through a door in its outer packaging). 2.

  • Page 17: Fitting The Handrail

    Fitting the handrail HANDLING AND INSTALLATION INSTRUCTIONS 4. F ITTING THE HANDRAIL The handrail is supplied as 2 end pieces with grub screws, 2 plastic friction cups and the rail tube Fig. 3 (Fig. 3). Hold a friction cup by the tabs on one end of the tube.

  • Page 18: Height Adjustment And Positionning The Cooker

    Height adjustment HANDLING AND INSTALLATION INSTRUCTIONS 7. H EIGHT ADJUSTMENT AND OSITIONING THE OOKER In order to make sure that the cooktop is perfectly horizontal, especially on old flooring, we advise you to install your cooker on a wooden or cement base, the height of which will allow you to bring the cooktop to a level in accordance with its environment or your own requirements.

  • Page 19: Connections

    Electrical, gas connections CONNECTIONS ONNECTIONS 1. E LECTRICAL CONNECTIONS ”CornuFé 1908” appliance is supplied with 1 flexible cord, consisting of 3 wires (220 - 240 V), 1,5 mm section, approximately 1,5 m long, ready to be connected to a single-phase power supply. If the wire is damaged, it must be replaced by the manufacturer, their after-sale service or qualified persons in order to avoid hazards.
  • Page 20 CONNECTIONS The hose must be firmly attached at both ends, and it must be possible to inspect the complete hose length. Moreover, the hose should be replaced by the user whenever required and, in all cases, before the maximum use date given on the hose. Recommended use: metallic flexible hose (stainless steel surrounded by metallic braids) with screwable connectors, without any lifetime end date.

  • Page 21: Adjustments

    Injectors ADJUSTMENTS DJUSTMENTS 1. C HANGING THE INJECTORS All the adjustments and replacement of injectors or bypass screws must be carried out by a qualified professional. The part numbers of the injectors for the various burners and the gas oven differ depending on the type of gas used and the country of installation.

  • Page 22: Injectors Table

    Injectors ADJUSTMENTS 2. I NJECTORS TABLE The following table indicates which injectors should be used following a change in the gas supply or a house move. Please refer to the instructions ”Conversion to another gas” for more details. Country: AT : Austria ES : Spain IE : Ireland PL : Poland...

  • Page 23: Replacing The Oven Light

    ADJUSTMENTS Replacing the oven light 3. R EPLACING THE OVEN LIGHT BULB The light bulb is located on the side at the top of the oven; it is automatically switched on when the oven door is opened. Please note: d isconnect your cooker before interfering with the light bulb to prevent any risk of an electrical shock and to allow the appliance to cool down (if necessary).
  • Page 24 Cooktop burners INSTRUCTIONS FOR USE The thermocouple should not be activated for more than 15 seconds; if, after this time, the burner has not Fig. 9 ignited, you should stop trying to ignite, and wait at least one minute before trying to reignite the burner. All of our appliances are equipped with automatic gas burner ignition.

  • Page 25: Starting With The Oven

    Oven INSTRUCTIONS FOR USE Pans and kettles with concave bases or down-turned Fig. 14 base rims should not be used (Fig. 14). Simmering aids, such as asbestos or mesh mats, are NOT recommended. They will reduce burner Fig. 15 performance and could damage the grates (Fig. 15). Avoid using unstable or misshapen pans that may tilt easily and pans with a very small base diameter e.g.
  • Page 26 Oven INSTRUCTIONS FOR USE 2.2. Grill Function Your oven is equipped with an electric grill controlled separately from the heating element on the oven floor. - Position the simmerstat (C) on the desired power setting. - After preheating (between 5 and 10 minutes depending on the temperature), set the cooking mode for the food to be cooked.

  • Page 27: The Cooking Principle

    The thermal environment of this oven has been studied and perfected to avoid dehydration of any type or size of food. The ”La Cornue” oven is as well adapted for family home cooking usage as it is for large festive group cooking.

  • Page 28: Vaulted Oven: Advice On Use

    The cooking principle INSTRUCTIONS FOR USE 4. V AULTED DVICE ON USE You will gradually discover the ideal combinations for fresh fruit - zabaglione, seafood - hollan- daise sauce or quenelles - Nantua sauce, etc... You can use heat from the grill in the same way as base heat, although it is less frequent. It is gene- rally used for adjusting dishes.
  • Page 29 The cooking principle INSTRUCTIONS FOR USE To cook a Tarte Tatin, which is generally cooked from the top, place the thermostat at level 175 or 200 °C (345 - 390 °F) and this should suffice; anything higher than this will burn the pas- try before the apples have even had a chance to cook.

  • Page 30: Upkeep Of A Cornufé 1908 Cooker

    Front panels UPKEEP 1908 C PKEEP OF A ORNU É OOKER You should clean your cooker regularly. Always allow the cooker to cool and switch it off before cleaning or doing any maintenance work. All parts of the cooker become hot when it is ON and stay hot even when the cooking is finished. To avoid burns always check that all knobs are in the OFF position and that the cooker has cooled down before cleaning.

  • Page 31: Finishes

    Finishes UPKEEP For this type of thorough cleaning, use a mild detergent or soft soap, thoroughly diluted in hot water. Then rinse with clean water. Matt enamel led coloured fronts (matt black) Remember that matt colours are fragile by nature. Matt colours are not vitrified and are therefore not protected: the use of products that are too powerful can leave lasting marks.
  • Page 32 Cooktop UPKEEP The burners Don’t forget that high-flame cooking can cause oil and grease to splatter on adjoining cooking ele- ments, including the back panel and table surround. In this case, clean off any warm grease or oil with a cloth and polish up where necessary. Black enamel burner covers Clean the burner covers, using washing-up liquid and a sponge;...

  • Page 33: The Oven

    Oven UPKEEP 4. T The ”La Cornue” vaulted oven principle and the quality of convection obtained, considerably limit oven cleaning problems. Nevertheless, oven preheating is essential to guarantee efficiency of use. The ”clean enamel” system is a new way to avoid chemical reactions and carbonisation.
  • Page 34 Upkeep UPKEEP Finally, we recommend making a list of all the cleaning products needed for your cooker, all of which are available at a shop near you: For my cooktop ..............................For my oven ................................For my front panel .............................. For my finishes ..............................

  • Page 35: Compliance With European Directives

    EUROPEAN DIRECTIVES UROPEAN IRECTIVES OMPLIANCE WITH UROPEAN IRECTIVES All of our appliances comply with the following European Directives: - Directive 2009/142/EC ”GAS APPLIANCES”, European Standard EN 30 - Directive 2006/95/EC ”LOW VOLTAGE” - Directive 2004/108/EC ”ELECTROMAGNETIC COMPATIBILITY” - Directive 2002/96/EC ”WEEE, WASTE FROM ELECTRICAL AND ELECTRONIC EQUIP- MENT”...

  • Page 36: Warranty

    - If the faulty operation is due to force majeure. due to a non-compliant installation or abnormal use in order to decide with us how the appliance LA CORNUE SAS shal l not be held legal ly should be repaired. The appliance should be responsible in these three cases.
  • Page 38 14, rue du Bois du Pont - Z.I. les Béthunes - 95310 Saint-Ouen-l’Aumône FRANCE Postal address : La Cornue SAS - B.P. 99006 - 95070 Cergy-Pontoise Cedex - FRANCE Phone: +33 (0)1 34 48 36 36 – Fax : +33 (0)1 34 64 32 65 E-mail : a.table@la-cornue.com...
