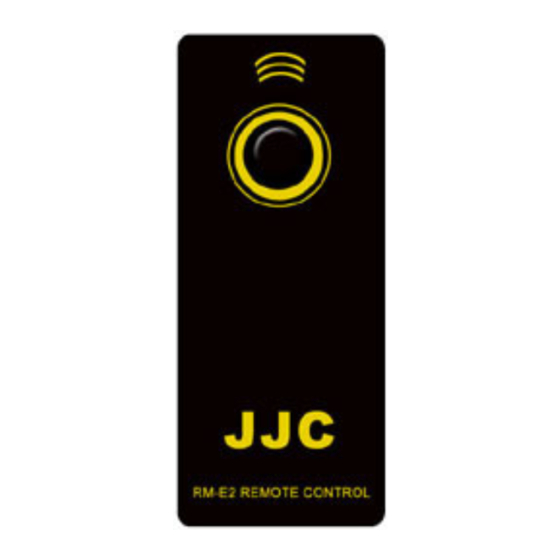

JJC RM-E2 Instruction Manual

Thank you for purchasing JJC RME2 Infrared Remote Control, for the best performance,
please read this instruction carefully before use.

To use RM-E2 Remote Control

1. For the first time use, please pull out the plastic separator (if your remote control has it) at
the battery holder.
2. Mount the camera on a tripod (recommended) or place the camera on a stable, level
surface.
3. Press the button and rotate main command dial until (delayed remote) or (quick response
remote) is displayed in the control panel.
4. Aim the transmitter on the remote control at the infrared receiver on the camera (usually
within +/- 20 degree of the lens axis, from the left to the right and from the top to the
bottom) and press the shutter-release button on the remote control (when using the
remote outdoors, make sure that the subject is not backlit and that the line of site
between the transmitter and the infrared receiver is not blocked by the lens or other
obstacles).
5. How the camera focuses and shoots depends on the option selected for your camera's
custom setting. For further information, check your camera's manual.
6. Infrared cannot be seen by human eyes. So you will see no visible light from the LED on
the front end of the remote control when operating.

To Replace the Battery

1. The remote control is powered by a three-volt CR2025 lithium battery which is
already included in.
JJC RM-E2
Infrared Remote Control Instruction
1
