Model: WT-868
English Manual Instruction

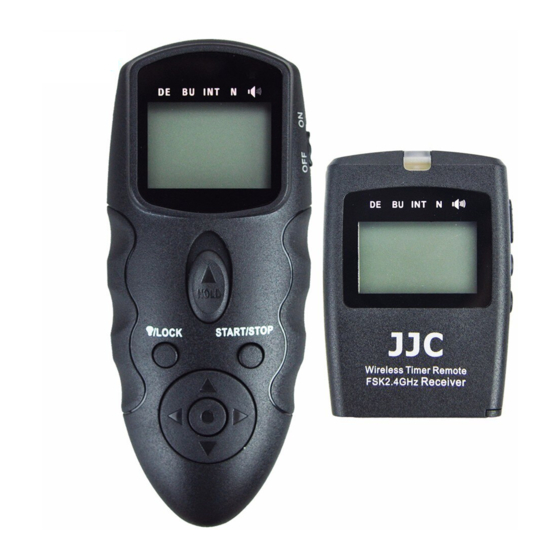

Thank you for your purchase of a JJC WT-868 Wireless Timer Remote Control. For the best performance,
please read this manual instruction carefully before using. You must read it throughly and fully understand
this manual to avoid improper operation lead to damage of the product.
WT-868 Wireless Timer Remote doesn't just trip your shutter wirelessly. It's also equipped to handle a
long list of timer functions: self-timer, interval timer, long exposure timer, as well as controlling the number
of continuous shutter releases. It works with a vast array of different cameras--just swap out the camera
release cable for the correct camera. The transmitter works at a distance up to 100m(328 feet) on any
one of 16 channels over a reliable 2.4GHz frequency.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WT-868 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JJC WT-868

Summary of Contents for JJC WT-868

  • Page 1 Wireless Timer Remote Control English Manual Instruction Thank you for your purchase of a JJC WT-868 Wireless Timer Remote Control. For the best performance, please read this manual instruction carefully before using. You must read it throughly and fully understand this manual to avoid improper operation lead to damage of the product.

  • Page 2: For Your Safety

    For Your Safety To prevent damage to your JJC product or injury to yourself or to others, read the following safety precautions in their entirety before using this product. Keep these safety instructions where all those who use the product will read them.
  • Page 3 The name of each part: Control Panel Shutter Release Button Background Light / Lock Button Arrow Button Indicator Light Timer Start/Stop Button SET Button ACC Socket Power Switch Transmitter (WT-868TX)
  • Page 4 The name of each part: Indicator Light Control Panel Power Switch Channel Increase Button Channel Reduce Button Battery Hatch Hot Shoe fixed nut 1/4"-20 Threaded Sockets ACC socket 10. Hot Shoe mount Receiver(WT-868RX)
  • Page 5 11. Selection cursor 12. Timer display 13. LOCK indicator 14. Low power indicator 15. Timer active indicator 16. Speaker ON/OFF 17. SET indicator 18. Release indicator 19. Number of shots 20. Multi Exposure indicator 21. Channel display...
  • Page 6 Install and replace the battery: WT-868(TX)
  • Page 7 WT-868(RX)
  • Page 8 Channel setting of WT-868TX Turn on the power; the channel is default as the last time setting. Use the arrow button to set the channel. Press left or right button to move the selection cursor until it is disappeared. The channel section will display. Press the SET button to go into the Channel section, when the Channel number is flashing, press the up or down button to increase or...
  • Page 9 WT-868TX connected with the camera using as wired timer *Wired operation requires the use of a JJC Shutter Release Cable to fit your camera. (NOT INCLUDED. SEPARATE PURCHASE REQUIRED.)
  • Page 10 Connecting the WT-868TX:  Turn the camera and WT-868TX off.  Remove the remote socket cover from the camera.  Insert the shutter release plug into the remote socket of camera.  Insert the input plug into the ACC socket of WT-868TX. ...
  • Page 11 WT-868RX connected with the camera using as wireless timer...
  • Page 12 Connecting the WT-868RX:  Turn the camera and WT-868RX off.  Fix the WT-868RX on the hot shoe of camera  Lock hot shoe fixed nut tightly when you fix it.  Loosen hot shoe fixed nut when you remove the WT-868RX. Do not forcibly pull it, in order to avoid damage to the receiver and camera.
  • Page 13 WT-868TX Automatic Function Description (Wired and Wireless): Automatic Timer Function, Choose the Delay / Self Timer (DE), BULB/Long Exposure (BU), Interval Timer (INT) and number of shots for time interval photography exposure (Exposure Count (N)). Following table is the setting about the camera shutter speed. 1.

  • Page 14: Setting The Timer

    Setting the Timer  Use the arrow button to set the timer. Press left or right to select, up or down to change. The current selection is indicated by the selection cursor.  Press the SET button at any time to complete the operation and display the new setting for the selected item.
  • Page 15 5.Speaker To ensure correct operation, choose an interval at least two seconds longer than the exposure time. When using autofocus, set the delay to two seconds or longer and choose an interval at least two seconds longer than the exposure time to ensure that the camera has time to focus. When using long exposure noise reduction, the interval should be at least twice the exposure time.
  • Page 16 Start the timer Wired Timer Remote Control Press the START/STOP button. The timer will start and “TIMER ACTIVE” will flash in the control panel. Between each shot, the control panel will show the time remaining until the next photograph is taken. If the speaker is ON, a beep will sound three times at ONE-SECOND intervals before the shutter opens.
  • Page 17 The Speaker and Release Lamp The following illustration shows when a beep will sound ( ) and the release lamp flash ( ) with a delay of 5s, exposure time of 4s, and an interval of 9s. End Shooting Shooting will end automatically when the selected number of shots has been taken. To end shooting before all photographs have been taken, press the START/STOP button.
  • Page 18 Wireless Timer Remote Control After complete the timer setting of the WT-868TX, Press the START/STOP button of the transmitter. The transmitter will send all the setting data to the WT-868RX. Once the receiver get all the data, it will start and “TIMER ACTIVE”...
  • Page 19 The Speaker and Release Lamp The following illustration shows when a beep will sound ( ) and the release lamp flash ( ) with a delay of 5s, and exposure time of 4, and an interval of 9s. End Shooting Shooting will end automatically when the selected number of shots has been taken.
  • Page 20 Using the camera to select shutter speed To take photographs at the shutter speed selected with the camera, adjust setting as follows: Exposure mode M (manual) or S (shutter-priority auto) Shutter speed CAMERA Interval timer Focus mode AF-C or M Shooting mode S (single frame) Exposure time...
  • Page 21 Multi-Exposure (High Dynamic Range) Function Description: Setting the Multi-Exposure  Use the arrow button to move selection cursor under BU, press the SET button and go into BU time section ①. Press the LEFT arrow button to get into multi-exposure selection②, Press UP or DOWN to change from single exposure -1- to nine exposures -9-③.
  • Page 22 Transmitter: 118 x 49 x 27 mm Receiver: 68 x 48 x 29mm Weight (without battery): Transmitter: 59g Receiver: 41g *Wired operation requires the use of a JJC Shutter Release Cable to fit your camera. (NOT INCLUDED. SEPARATE PURCHASE REQUIRED.) Product Compatibility List: CANON NIKON...
  • Page 23 WT-868 Power Saving Function About receiver: ● When you turn on the power of the receiver,the background light of the control panel will last for 3s. ● When you press the channel +,- button to set channel,the background light of the control panel will last for 3s.
  • Page 24 Those products that has refitted or added other functions by your own will not be accepted to repair. If at any time after one year, your JJC product fails under normal use, we invite you to return it to JJC for evaluation.
