TECHNICAL GUIDE
SPLIT-SYSTEM
HEAT PUMPS
13 SEER – R-22
MODELS:
THGD18 THRU 60
(1.5 THRU 5 NOMINAL TONS, 1 PHASE)
LISTED
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com
Additional rating information can be found at
www.ahridirectory.org
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
ISO 9001
Certified Quality
Management System

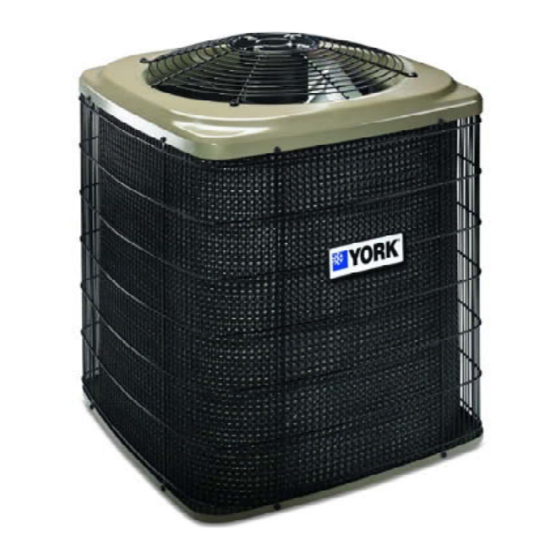

DESCRIPTION
The heat pump condensing unit is the outdoor part of a versa-
tile system of heating and air conditioning. It is designed to be
custom-matched with one of UPG's complete line of evapora-
tor sections, with each serving a specific function. Matching
Air Handlers are available for upflow, downflow, or horizontal
applications to provide a complete system. Electric Heaters
are available, if required. Add-on coils are available for use
with upflow, downflow, or horizontal furnaces and air han-
dlers.
WARRANTY
Single Phase Units:
5-year limited parts warranty.
5-year limited compressor warranty.
FEATURES
• QUALITY CONDENSER COILS - The coil is constructed
of copper tubing and enhanced aluminum fins for
increased efficiency and corrosion protection.
• PROTECTED COMPRESSOR - The compressor is inter-
nally protected against high pressure, temperature, and
externally by a factory installed high pressure switch. This
is accomplished by the simultaneous operation of high
pressure relief valve and a temperature sensor which pro-
tects the compressor if undesirable operating conditions
occur. A liquid line filter-drier further protects the compres-
sor.
• DURABLE FINISH - The cabinet is made of pre-painted
steel. The pre-treated galvanized steel provides a better
paint to steel bond, which resists corrosion and rust creep.
Special primer formulas and matted-textured finish insure
less fading when exposed to sunlight.
• LOWER INSTALLED COST - Installation time and costs
are reduced by easy power and control wiring connec-
tions. Available in sweat connect models only. The unit
contains enough refrigerant for matching indoor coils and
15 feet of interconnecting piping. The small base dimen-
sion means less space is required on the ground or roof.
• TOP DISCHARGE - The warm air from the top mounted
fan is blown up away from the structure and any landscap-
ing. This allows compact location on multi-unit applica-
tions.
• LOW OPERATING SOUND LEVEL - The upward air flow
carries the normal operating noise away from the living
area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the rippled fins
of the condenser coil muffle the normal fan motor and
compressor operating sounds.
• LOW MAINTENANCE - Long life permanently lubricated
motor-bearings need no annual servicing.
• EASY SERVICE ACCESS - Fully exposed refrigerant con-
nections, and a single panel covering the electrical con-
trols make for easy servicing of the unit.
• SECURED SERVICE VALVES - Secured re-usable ser-
vice valves are provided on both the liquid and vapor
sweat connections for ease of evacuating and charging.
• U.L. and C.U.L. listed - approved for outdoor application.
Certified in accordance with the Unitary Small Equipment cer-
tification program, which is based on ARI Standard 210/240.
365147-YTG-C-0608
Advertisement
Related Manuals for York THGD18
Summary of Contents for York THGD18
- Page 1 • U.L. and C.U.L. listed - approved for outdoor application. are subject to change without notice. Certified in accordance with the Unitary Small Equipment cer- Visit us on the web at www.york.com tification program, which is based on ARI Standard 210/240. Additional rating information can be found at www.ahridirectory.org...
- Page 2 365147-YTG-C-0608 Physical and Electrical Data THGD18 THGD24 THGD30 THGD36 THGD42 THGD48 THGD60 MODEL S21S1 S21S1 S21S1 S21S1 S21S1 S21S1 S21S1 Unit Supply Voltage 208-230V, 1φ, 60Hz 187 to 252 Normal Voltage Range Minimum Circuit Ampacity 13.1 17.7 19.8 24.9 40.1 40.1...
- Page 3 365147-YTG-C-0608 Additional R-22 Charge / Orifice Size for Various Matched Systems THGD18 THGD24 THGD30 THGD36 THGD42 THGD48 THGD60 Outdoor Unit S21S1 S21S1 S21S1 S21S1 S21S1 S21S1 S21S1 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2C1 1TVM2C1 1TVM2C1 Required Orifice or TXV Factory Charge, lbs-oz...
- Page 4 365147-YTG-C-0608 Additional R-22 Charge / Orifice Size for Various Matched Systems (Continued) THGD18 THGD24 THGD30 THGD36 THGD42 THGD48 THGD60 Outdoor Unit S21S1 S21S1 S21S1 S21S1 S21S1 S21S1 S21S1 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2C1 1TVM2C1 1TVM2C1 Required Orifice or TXV Factory Charge, lbs-oz...
- Page 5 365147-YTG-C-0608 COOLING CAPACITY - With Air Handler Coils AIR HANDLER COOLING UNIT COIL NET MBH RATED MODEL MODEL MODEL SEER TOTAL SENS. 13 SEER HP WITH MA MA08B FC/MC18B 18.0 12.9 13.00 11.00 THGD18S21S1 MA08B FC/MC24B 18.0 12.9 13.00 11.00 MA08B FC/MC30B 18.0...
- Page 6 365147-YTG-C-0608 COOLING CAPACITY - With Air Handler Coils (Continued) AIR HANDLER COOLING UNIT COIL NET MBH RATED MODEL MODEL MODEL SEER TOTAL SENS. 13 SEER HP WITH AV / SV / F*FV - VARIABLE SPEED THGD18S21S1 AV24 – 18.0 13.4 14.00 12.00 THGD24S21S1...
- Page 7 365147-YTG-C-0608 COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils FURNACE** COOLING COIL NET MBH UNIT MODEL CFM RANGE RATED MODEL SEER (Min.-max.) TOTAL SENS. 450 - 750 14,17 FC/MC/PC/UC18 18.0 12.9 13.00 11.00 450 - 750 14,17 FC/MC/PC/UC24 18.0 12.9 13.00...
- Page 8 365147-YTG-C-0608 COOLING CAPACITY - With Variable Speed Furnaces COOLING VARIABLE SPEED COIL UNIT MODEL Net MBH RATED FURNACE MODEL MODEL SEER TOTAL SENS. 13 SEER HP WITH VARIABLE SPEED FURNACES PV8*A12 FC/MC/PC/UC18A 18.0 13.4 14.00 12.00 PV9*A12 FC/MC/PC/UC18A 18.0 13.3 14.00 12.00 P(C,V)9*B12...
- Page 9 365147-YTG-C-0608 COOLING CAPACITY - With Variable Speed Furnaces (Continued) COOLING VARIABLE SPEED COIL UNIT MODEL Net MBH RATED FURNACE MODEL MODEL SEER TOTAL SENS. 13 SEER HP WITH VARIABLE SPEED FURNACES PV8*A12 FC/MC/PC/UC37A 1200 35.0 26.0 13.55 11.00 PV9*A12 FC/MC/PC/UC37A 1200 35.0 25.8...
- Page 10 365147-YTG-C-0608 HEATING PERFORMANCE - With Air Handler ARI HEATING UNIT COIL 47°F 17°F HSPF MODEL* HANDLER MODEL 13 SEER HP WITH MA MA08B FC/MC18B 17.0 3.26 1.54 2.18 1.23 7.70 THGD18S21S1 MA08B FC/MC24B 17.0 3.26 1.54 2.18 1.23 7.70 MA08B FC/MC30B 17.0 3.26...
- Page 11 365147-YTG-C-0608 HEATING PERFORMANCE - With Air Handler (Continued) ARI HEATING UNIT COIL 47°F 17°F HSPF MODEL* HANDLER MODEL 13 SEER HP WITH AV / SV / F*FV - VARIABLE SPEED THGD18S21S1 AV24 – 17.0 3.46 1.40 2.32 1.08 8.00 THGD24S21S1 AV24 –...
- Page 12 365147-YTG-C-0608 HEATING PERFORMANCE - Upflow, Downflow, and Horizontal Furnaces and Coils ARI HEATING UNIT COIL 47°F 17°F HSPF MODEL* MODEL FC/MC/PC/UC18 17.0 3.26 1.54 2.18 1.23 7.70 FC/MC/PC/UC24 17.0 3.26 1.54 2.18 1.23 7.70 THGD18S21S1 FC/MC/PC/UC30 17.0 3.26 1.54 2.18 1.23 7.70 HC18...
- Page 13 365147-YTG-C-0608 HEATING CAPACITY - With Variable Speed Furnaces ARI HEATING VARIABLE UNIT COIL SPEED 47°F 17°F HSPF MODEL MODEL FURNACE 13 SEER HP WITH VARIABLE SPEED FURNACES PV8*A12 FC/MC/PC/UC18A 17.0 3.46 1.41 2.32 1.09 8.00 PV9*A12 FC/MC/PC/UC18A 17.0 3.42 1.43 2.28 1.13 8.00...
- Page 14 365147-YTG-C-0608 HEATING CAPACITY - With Variable Speed Furnaces (Continued) ARI HEATING VARIABLE UNIT COIL SPEED 47°F 17°F HSPF MODEL MODEL FURNACE PV8*A12 FC/MC/PC/UC37A 34.0 3.66 2.68 20.0 2.56 2.31 8.65 PV9*A12 FC/MC/PC/UC37A 34.0 3.60 2.76 20.0 2.54 2.35 8.55 PV8*B16 FC/MC/PC/UC43B 33.0 3.74...
-
Page 15: Typical Installation
365147-YTG-C-0608 ACCESSORIES Room Thermostats - A wide selection of matching thermo- stats is available to provide features required for any installa- Refer to Price Manual for specific model numbers. tion. Start Assist Kit (2SA067*) 2H/1C, manual changeover electronic non-programmable Blower Time Delay - Available to increase efficiency when thermostat. - Page 16 365147-YTG-C-0608 COOLING PERFORMANCE DATA CONDENSING UNIT MODEL NO. THGD18S21S1 INDOOR COIL MODEL NO. AHP18 IDCFM CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 16.6 18.5 18.3 20.4 22.0 18.9 20.1 19.8 22.0 24.0 21.2 21.7 21.3 23.6 25.9 S.C.
- Page 17 365147-YTG-C-0608 COOLING PERFORMANCE DATA CONDENSING UNIT MODEL NO. THGD24S21S1 INDOOR COIL MODEL NO. AHP24 IDCFM 1000 CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 20.3 23.5 23.6 26.0 28.3 22.8 24.8 24.6 27.1 29.2 25.3 26.1 25.7 28.3 30.2 S.C.
- Page 18 365147-YTG-C-0608 COOLING PERFORMANCE DATA CONDENSING UNIT MODEL NO. THGD30S21S1 INDOOR COIL MODEL NO. AHP30 IDCFM 1000 1200 CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 25.7 27.6 26.2 29.0 32.9 27.1 30.3 28.1 31.3 32.9 28.5 32.9 30.0 33.5 33.0 S.C.
- Page 19 365147-YTG-C-0608 COOLING PERFORMANCE DATA CONDENSING UNIT MODEL NO. THGD36S21S1 INDOOR COIL MODEL NO. AHP36 IDCFM 1000 1200 1400 CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 35.0 37.8 37.5 41.8 46.7 37.1 39.1 38.7 43.0 47.4 39.1 40.4 39.9 44.2 48.1 S.C.
- Page 20 365147-YTG-C-0608 COOLING PERFORMANCE DATA CONDENSING UNIT MODEL NO. THGD42S21S1 INDOOR COIL MODEL NO. AHP42 IDCFM 1200 1400 1600 CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 38.3 43.6 41.6 46.5 49.4 40.5 44.8 42.8 47.6 50.2 42.7 46.1 44.0 48.7 50.9 S.C.
- Page 21 365147-YTG-C-0608 COOLING PERFORMANCE DATA CONDENSING UNIT MODEL NO. THGD48S21S1 INDOOR COIL MODEL NO. FC/MC/PC/UC48 IDCFM 1400 1600 1800 CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 43.6 47.2 46.7 50.8 55.5 46.0 48.7 47.3 51.8 55.7 48.3 50.3 47.9 52.8 55.9 S.C.
- Page 22 365147-YTG-C-0608 COOLING PERFORMANCE DATA CONDENSING UNIT MODEL NO. THGD60S21S1 INDOOR COIL MODEL NO. FC/MC62 IDCFM 1600 1800 2000 CONDENSING ENTERING AIR ID DB (°F) TEMPERATURE ID WB (°F) T.C. 54.0 55.2 55.2 60.7 64.4 56.4 57.0 56.5 62.3 65.6 58.7 58.7 57.7 63.9 66.7 S.C.
- Page 23 365147-YTG-C-0608 HEATING PERFORMANCE DATA CONDENSING UNIT MODEL NO THGD18S21S1 EVAPORATOR COIL MODEL NO AHP18 ID CFM AIR TEMP. AIR TEMP. ENTERING ENTERING OUTDOOR UNIT INDOOR COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 19.7 4.21 1.37 21.0 4.24 1.45 22.3 4.29 1.52 18.9 3.79...
- Page 24 365147-YTG-C-0608 HEATING PERFORMANCE DATA CONDENSING UNIT MODEL NO THGD24S21S1 EVAPORATOR COIL MODEL NO AHP24 ID CFM AIR TEMP. AIR TEMP. ENTERING ENTERING 1000 OUTDOOR UNIT INDOOR COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 25.6 4.23 1.77 26.9 4.47 1.76 28.3 4.70 1.76 24.4...
- Page 25 365147-YTG-C-0608 HEATING PERFORMANCE DATA CONDENSING UNIT MODEL NO THGD30S21S1 EVAPORATOR COIL MODEL NO AHP30 ID CFM AIR TEMP. AIR TEMP. ENTERING ENTERING 1000 1200 OUTDOOR UNIT INDOOR COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 35.2 4.14 2.49 36.8 4.38 2.46 38.3 4.59 2.44...
- Page 26 365147-YTG-C-0608 HEATING PERFORMANCE DATA CONDENSING UNIT MODEL NO THGD36S21S1 EVAPORATOR COIL MODEL NO AHP36 ID CFM AIR TEMP. AIR TEMP. ENTERING ENTERING 1000 1200 1400 OUTDOOR UNIT INDOOR COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 41.6 42.2 42.7 40.1 40.8 41.5 38.6 39.5...
- Page 27 365147-YTG-C-0608 HEATING PERFORMANCE DATA CONDENSING UNIT MODEL NO THGD42S21S1 EVAPORATOR COIL MODEL NO FC/MC/PC/UC48 ID CFM AIR TEMP. AIR TEMP. ENTERING ENTERING 1200 1400 1600 OUTDOOR UNIT INDOOR COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 51.7 52.6 53.4 49.6 50.4 51.3 47.4 48.3...
- Page 28 365147-YTG-C-0608 HEATING PERFORMANCE DATA CONDENSING UNIT MODEL NO THGD48S21S1 EVAPORATOR COIL MODEL NO AHP/SHP48 ID CFM AIR TEMP. AIR TEMP. ENTERING ENTERING 1400 1600 1800 OUTDOOR UNIT INDOOR COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 64.7 64.7 64.8 62.2 62.4 62.6 59.7 60.0...
- Page 29 365147-YTG-C-0608 HEATING PERFORMANCE DATA CONDENSING UNIT MODEL NO THGD60S21S1 EVAPORATOR COIL MODEL NO FC/MC62 ID CFM AIR TEMP. AIR TEMP. ENTERING ENTERING 1600 1800 2000 OUTDOOR UNIT INDOOR COIL MBTUH C.O.P. MBTUH C.O.P. MBTUH C.O.P. 75.6 76.1 76.6 72.9 73.4 73.8 70.2 70.6...
- Page 30 NOTES Subject to change without notice. Printed in U.S.A. 365147-YTG-C-0608 Copyright © 2008 by Johnson Controls, Inc. All rights reserved. Supersedes: 365147-YTG-B-0408 Johnson Controls Unitary Products 5005 York Drive Norman, OK 73069...
