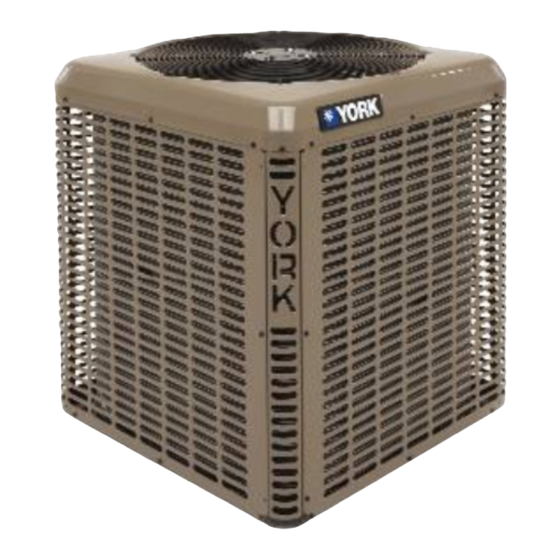

R-410a outdoor split-system heat pump
Hide thumbs Also See for YHE Series:

Advertisement

INSTALLATION MANUAL
R-410A OUTDOOR SPLIT-SYSTEM
HEAT PUMP
MODELS: 14 SEER -
YHE, TH4, THE, RHP14L SERIES
1.5 TO 5 TONS - 1 & 3 PHASE
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
UNIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
INDOOR EXPANSION DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
EVACUATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
SYSTEM CHARGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation of Vapor Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Underground Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Heat Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
TXV Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
TXV Bulb and Equalizer Line Installations . . . . . . . . . . . . . . . . . . . . . .6
Proper Bulb Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Outdoor Unit Swing Away Control Box . . . . . . . . . . . . . . . . . . . . . . .13
R-410A Saturation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
YHE18 Heat Charging Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
YHE24 Heat Charging Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
YHE30 Heat Charging Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
YHE35 Heat Charging Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
YHE36 Heat Charging Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
SECTION I: GENERAL
The outdoor units are designed to be connected to a matching indoor
coil with sweat connect lines. Sweat connect units are factory charged
with refrigerant for a nominal sized matching indoor coil plus 15 feet of
field-supplied lines.
Matching indoor coils can be used with a thermostatic expansion valve
(TXV). Refer to the Tabular Data Sheet or to the Technical Guide for
the proper selection.
SECTION II: SAFETY
This is a safety alert symbol. When you see this symbol on
labels or in manuals, be alert to the potential for personal
injury.
Understand and pay particular attention to the signal words DANGER,
WARNING, or CAUTION.
Johnson Controls Unitary Products
LIST OF SECTIONS
ELECTRICAL CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
SYSTEM START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SYSTEM OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
INSTRUCTING THE OWNER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
START UP SHEET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
LIST OF FIGURES
(Single and Three-Phase) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Heat Pump Flow Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Demand Defrost Control Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Defrost Operation Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
LIST OF TABLES
YHE42 Heat Charging Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
YHE48 Heat Charging Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
YHE60 Heat Charging Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
TEST Input Functionality with Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
TEST Input Functionality without Y . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Status Code Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DANGER indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation, which, if not
avoided may result in minor or moderate injury. It is also used to
alert against unsafe practices and hazards involving only property dam-
age.
Improper installation may create a condition where the operation of
the product could cause personal injury or property damage.
Improper installation, adjustment, alteration, service or mainte-
nance can cause injury or property damage. Refer to this manual
for assistance or for additional information, consult a qualified con-
tractor, installer or service agency.
® ® ® ®
WARNING
!
5121495-UIM-E-0716

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YHE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for York YHE Series

  • Page 1: Table Of Contents

    INSTALLATION MANUAL R-410A OUTDOOR SPLIT-SYSTEM ® ® ® ® HEAT PUMP MODELS: 14 SEER - YHE, TH4, THE, RHP14L SERIES 1.5 TO 5 TONS – 1 & 3 PHASE LIST OF SECTIONS GENERAL ..........1 ELECTRICAL CONNECTIONS .
  • Page 2: Unit Installation

    5121495-UIM-E-0716 SECTION III: UNIT INSTALLATION CAUTION LOCATION This product must be installed in strict compliance with the Before starting the installation, select and check the suitability of the enclosed installation instructions and any applicable local, state, location for both the indoor and outdoor unit. Observe all limitations and and national codes including, but not limited to building, electrical, clearance requirements.
  • Page 3: Typical Installation

    5121495-UIM-E-0716 FIGURE 1: Typical Installation GROUND INSTALLATION On occasion, site conditions may require direct wall mounted brackets to be used to locate and support the outdoor unit. In these applications, The unit may be installed at ground level on a solid base that will not care must be taken to address unit base pan support, structural integ- shift or settle, causing strain on the refrigerant lines and possible leaks.
  • Page 4: Installation Of Vapor Line

    5121495-UIM-E-0716 PIPING CONNECTIONS Pack fiberglass insulation and a sealing material such as perma- gum around refrigerant lines where they penetrate a wall to reduce The outdoor condensing unit must be connected to the indoor evapora- vibration and to retain some flexibility. tor coil using field supplied refrigerant grade (ACR) copper tubing that is For systems with total line length exceeding 75 feet (22.86 m), see internally clean and dry.
  • Page 5: Indoor Expansion Device

    5121495-UIM-E-0716 12. Release the refrigerant charge into the system. Open both the liq- uid and vapor valves by removing the service valve cap and with an allen wrench back out counter-clockwise until valve stem just touches the chamfered retaining wall. If the service valve is a ball valve, use a Crescent wrench to turn valve stem one-quarter turn counterclockwise to open.
  • Page 6: Evacuation

    5121495-UIM-E-0716 If bulb installation is made on a vertical run, ensure that the bulb is a minimum of 8 inches (20.3 cm) away from elbow coming out of the coil. Position the bulb with the tail of the LIQUID LINE / TXV COUPLING bulb at the top, so that the bulb acts as a reservoir.
  • Page 7: Maximum / Minimum Operating Limit Conditions 2 R-410A Saturation Properties

    5121495-UIM-E-0716 CHARGING THE UNIT CAUTION CAUTION IT IS UNLAWFUL TO KNOWINGLY VENT, RELEASE OR DIS- CHARGE REFRIGERANT INTO THE OPEN AIR DURING REPAIR, Always charge in liquid form. Take care not to slug the compressor. SERVICE, MAINTENANCE OR THE FINAL DISPOSAL OF THIS UNIT.
  • Page 8: Yhe18 Heat Charging Charts

    5121495-UIM-E-0716 TABLE 3: YHE18 Heat Charging Charts YHE/TH4/RHP14L18 CF/CM/CU18, AP18, AE18, AVC18 Ambient Temperature (°F) Indoor Temperature (°F) Liquid Pressure (PSIG) 381 427 472 351 394 436 318 363 409 274 324 Liquid Pressure (PSIG) 345 389 434 319 355 404 294 338 382 263 308 Liquid Pressure (PSIG) 309 352 395 286 329 372...
  • Page 9: Yhe30 Heat Charging Charts

    5121495-UIM-E-0716 TABLE 4: YHE24 Heat Charging Charts (Continued) YHE/TH4/RHP14L24 FC/MC/PC24, FC/MC/PC30 Ambient Temperature (°F) Indoor Temperature (°F) Liquid Pressure (PSIG) 390 439 487 360 408 457 325 371 418 291 336 Liquid Pressure (PSIG) 351 398 444 328 358 422 299 344 388 274 315 1000 Liquid Pressure (PSIG)
  • Page 10: Yhe36 Heat Charging Charts

    5121495-UIM-E-0716 TABLE 6: YHE35 Heat Charging Charts (Continued) YHE/TH4/RHP14L35 CF/CM/CU42, AE42, AVC42 Ambient Temperature (°F) Indoor Temperature (°F) 1000 Liquid Pressure (PSIG) 342 389 436 321 367 412 310 357 404 293 339 307 351 1200 Liquid Pressure (PSIG) 321 365 409 302 334 391 293 328 386 278 322 294 338 1400...
  • Page 11: Yhe42 Heat Charging Charts

    5121495-UIM-E-0716 TABLE 8: YHE42 Heat Charging Charts YHE/THE/TH4/RHP14L42 CF/CM/CU48, AE42, AE48, AVC42, AVC48 Ambient Temperature (°F) Indoor Temperature (°F) 1100 Liquid Pressure (PSIG) 418 449 331 378 424 319 368 417 301 349 370 271 316 1300 Liquid Pressure (PSIG) 391 421 311 370 403 302 350 398 287 332 356 258 303 1500...
  • Page 12: Yhe60 Heat Charging Charts

    5121495-UIM-E-0716 TABLE 9: YHE48 Heat Charging Charts (Continued) YHE/THE/TH4/RHP14L48 AE60C, AVC60C, FC/MC/PC48 Ambient Temperature (°F) Indoor Temperature (°F) 1400 Liquid Pressure (PSIG) 405 455 328 378 427 309 362 416 293 338 383 1600 Liquid Pressure (PSIG) 385 433 313 360 409 298 349 400 281 325 368 1800 Liquid Pressure (PSIG) 366 412 298 345 391 288 336 384 269 312 354...
  • Page 13: Outdoor Unit Swing Away Control Box

    5121495-UIM-E-0716 SECTION VII: ELECTRICAL FIELD CONNECTIONS POWER WIRING CONNECTIONS Install the proper size weatherproof disconnect switch outdoors and within sight of the unit. GENERAL INFORMATION & GROUNDING Remove the screws at the top and sides of the corner cover. Slide The control box cover is held in place with 3 screws (one screw in each the control box cover down and remove from unit.
  • Page 14: System Start-Up

    5121495-UIM-E-0716 FIELD CONNECTIONS CONTROL WIRING DEHUMIDIFICATION CONTROL (Typical) Route low voltage wiring into bottom of control box as shown in The indoor unit Installation Manual instructions for the air handler or fur- Figure 9 or 10. Make low voltage wiring connections inside the low nace describe the interface with the outdoor heat pump.
  • Page 15: System Operation

    5121495-UIM-E-0716 SECTION IX: SYSTEM OPERATION LOW VOLTAGE DETECTION ANTI SHORT-CYCLE DELAY The control monitors the transformer secondary (24 VAC) voltage and provides low voltage protection for the heat pump and its components. The control includes a five-minute anti short-cycle delay (ASCD) timer In particular, the control prevents contactor chatter during low voltage to prevent the compressor from short-cycling after a power or thermo- conditions.
  • Page 16: Demand Defrost Control Module

    5121495-UIM-E-0716 FIGURE 13: Demand Defrost Control Module FAULT CODE DISPLAY TABLE 14: Status The control shall provide status codes using the LED. Status codes Description STATUS LED indicate the state of operation of the unit but do not represent a fault. The table below describes the LED displays during status codes.
  • Page 17: Defrost Operation Curves

    5121495-UIM-E-0716 Operation The control shall initiate a defrost cycle when the Defrost Inhibit Time Limit has elapsed if the previous defrost cycle was terminated based on The defrost mode is equivalent to the cooling mode except that the out- the Maximum Defrost Cycle Time. This shall occur regardless of the liq- door fan motor is de-energized.
  • Page 18: Instructing The Owner

    5121495-UIM-E-0716 COOLING OPERATION When the soft lockout condition is reset, the control will stop displaying the fault code and will respond to thermostat inputs normally. During cooling operation, the control will receive thermostat signals at SECTION X: INSTRUCTING THE OWNER the Y and O input terminals.
  • Page 19: Wiring Diagram

    5121495-UIM-E-0716 SECTION XI: WIRING DIAGRAM LEGEND COLOR CODE DANGER - SHOCK HAZARD TURN OFF ELECTRICAL POWER BEFORE SERVICING AS - AMBIENT SENSOR BLK - BLACK TO PREVENT POSSIBLE DAMAGE TO THE EQUIPMENT CAP - CAPACITOR BLU - BLUE AND POSSIBLE PERSONAL INJURY. CC - CONTACTOR COIL BRN - BROWN CCH - CRANKCASE HEATER...
  • Page 20: Wiring Diagram - Three Phase - 208/230V (Demand Defrost)

    5121495-UIM-E-0716 LEGEND COLOR CODE DANGER - SHOCK HAZARD TURN OFF ELECTRICAL POWER BEFORE SERVICING AS - AMBIENT SENSOR BLK - BLACK TO PREVENT POSSIBLE DAMAGE TO THE CAP - CAPACITOR BLU - BLUE EQUIPMENT AND POSSIBLE PERSONAL INJURY. CC - CONTACTOR COIL BRN - BROWN CCH - CRANKCASE HEATER GRN - GREEN...
  • Page 21: Wiring Diagram - Three Phase - 460V (Demand Defrost)

    5121495-UIM-E-0716 LEGEND COLOR CODE DANGER - SHOCK HAZARD TURN OFF ELECTRICAL POWER BEFORE SERVICING AS - AMBIENT SENSOR BLK - BLACK TO PREVENT POSSIBLE DAMAGE TO THE CAP - CAPACITOR BLU - BLUE EQUIPMENT AND POSSIBLE PERSONAL INJURY. CC - CONTACTOR COIL BRN - BROWN CCH - CRANKCASE HEATER GRN - GREEN...
  • Page 22 5121495-UIM-E-0716 NOTES Johnson Controls Unitary Products...
  • Page 23: Start Up Sheet

    5121495-UIM-E-0716 SECTION XII: START UP SHEET Heat Pump and Supplementary Heat Start-Up Sheet Proper start-up is critical to customer comfort and equipment longevity Start-Up Date Technician Performing Start-Up Installing Contractor Name Owner Information Name Address City State or Province Zip or Postal Code Equipment Data Upflow Downflow...
  • Page 24 Explain the importance of regular filter replacement and equipment maintenance Comments Section Page 2 of 2 Subject to change without notice. Published in U.S.A. 5121495-UIM-E-0716 Copyright © 2016 by Johnson Controls, Inc. All rights reserved. Supersedes: 5121495-UIM-D-0516 York International Corp. 5005 York Drive Norman, OK 73069...
