TECHNICAL GUIDE
HORIZONTAL DISCHARGE
SPLIT SYSTEM
AIR CONDITIONERS
14 SEER – R-410A – 1 PHASE
2, 3, 4 NOMINAL TONS
MODELS: TCHE24, 36, 48
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.simplygettingthejobdone.com and
www.york.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Extended 10-Years limited parts warranty.
Standard 10-Years limited compressor warranty.
Extended 10-Years limited parts warranty when product is
registered online within 90 days of purchase for replacement
or closing for new home construction.
*Does not apply to 3-Phase models, or Internet sales.
See Limited Warranty certificate in User's Information Manual for details.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
FOR INSTALLATION IN ALL US REGIONS AND CANADA
Installation Allowed
®

DESCRIPTION

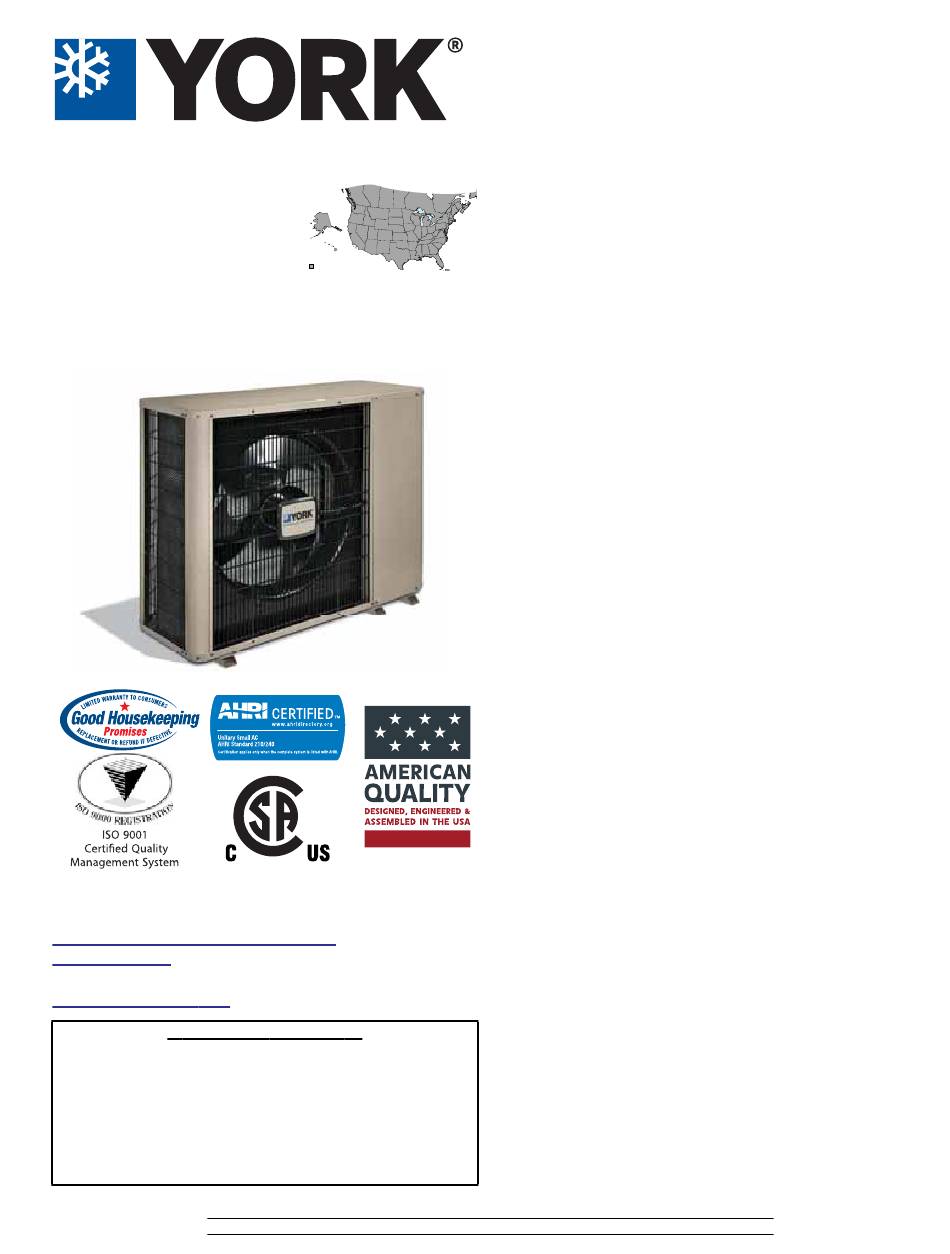

The 14 SEER TCHE Series condensing unit is the outdoor part
of a versatile system of air conditioning. Optimized for the new
14 SEER Regional Minimum Efficiency and the high EER
required in the Southwest US, these outdoor units are specifi-
cally designed to be matched with York indoor coils, furnaces,
and air handlers to provide a complete system solution.
These remarkably compact units require only minimal service
and airflow clearances, allowing them to be positioned as close
as six inches (6") from the wall. This design allows the unit to be
located virtually anywhere – on the ground, roof, balcony, or
mounted to an outside wall. When installation footprint is lim-
ited, these units can be stacked two-high using the approved
stacking kit.

FEATURES

• Performance - Optimized for the US DOE Southwest
Region and valid for installation in all US DOE Regions.
• Small Footprint - Compact "slim-line" design allows for easy
installation in tight spaces. Units can be stacked two-high
with approved stacking kit.
• QuietDrive™ System - The combination of a swept-wing
fan, rigid base pan, isolated compressor compartment, and
quiet scroll compressor reduce sound to as low as 70 dBA.
• Low Operating Sound Levels - The swept-wing condenser
fan in blow-through configuration provides for whisper-quiet
operation by allowing air to flow smoothly and efficiently
across the fan blades.
• Quality Condenser Coils - The coil is constructed of alumi-
num microchannel tubing and enhanced aluminum fins for
compact size and increased efficiency.
• Environmentally Friendly Refrigerant - The next genera-
tion refrigerant R-410A delivers environmentally friendly per-
formance with zero ozone depletion.
• Durable Cabinet - Heavy-gauge steel cabinet and tubular
base rails provide added support.
• Aesthetic Appearance - Powder paint "Champagne" color
provides an attractive retail finish.
• Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.
• Other Features:
– Factory installed filter drier
– High pressure and low pressure switches
– Accumulator and crankcase heater in all sizes
– Up to 200' line set out of the box
– Zero lot line - only 6" minimum clearance from structure
