- Page 1 OWNER'S MANUAL BASYS B3 AMPLIFIER...
- Page 2 OWNER'S MANUAL BASYS B3 AMPLIFIER Basys...

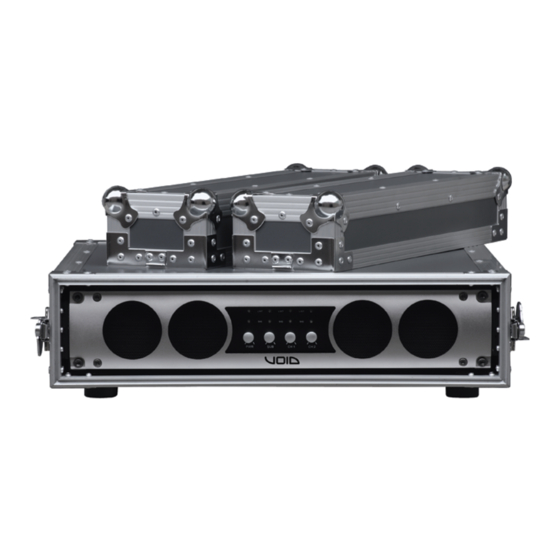

- Page 3 Basys Features Rugged, touring grade chassis. E.I.A. Standard 19" (48.3cm) rack-mountable. Three output channels. Two stereo channels for Hi output and one summed mono Sub channel. Front panel power switch with soft start for loudspeaker protection. Built in Hi and Lo pass electronic crossovers. Anti Clip limit protection prevents harmful signals from damaging loudspeakers.
-
Page 4: Front Panel
Basys LIMT LIMT LIMT CH 1 CH 2 Front Panel 1.Power Switch Rotate clockwise to turn the amp on and counter clockwise for off. 2.Sub Level Control To control the Sub output level. 3.CH 1&2 Level Controls To control CH 1&2 Hi outputs. 4.Power on LED's Both Power LED's will light to show that the amplifier is on. -
Page 5: Technical Specifications
Resetable breaker for amplifier protection, rated at 15 amps 8.Power Connector IEC power input connector. AC 230V, 50 Hz TECHNICAL SPECIFICATIONS Model : Basys B3 Amplifier FREQUENCY RESPONSE ref.100W@8Ω 20Hz - 20kHz +/- 0.5 dB TOTAL HARMONIC DISTORTION (THD) 0.05%... - Page 6 Basys TECHNICAL SPECIFICATIONS RMS Output Power (watts) 0.1%THD+N 0.1%THD+N 10Hz-20kHz 1kHz CH 1 & CH 2 SUB Out Maximum Current Draw all ch - 4 ohms 10 Amps Dimensions : 48.2 cm rack mount width, 9 cm high and 44.5 cm deep Weight : 22.0 Kg net 25.5 Kg shipping weight...
-
Page 7: Worldwide Service
Failure to do so could delay the repair of your product. Warranty Registration Please take time to fill out the warranty registration form at the back of this manual and return it to Void Acoustics. Environmental WEEE Mark If you want to dispose of this product, do not mix with general household waste. -
Page 8: Limited Warranty
Authorised Void Dealer) that it is free of defects in materials and workmanship and that each product will meet or exceed all factory published specifications for each respective model. Void agrees to repair or replace (at its discretion) all defective parts at no charge for labour or materials; subject to following provisions:... - Page 10 Void Acoustics Unit 10B Dawkins Road Ind Est Poole Dorset BH15 4JD...
