OWNER'S MANUAL
KRYO K4.4 - K5.5
POWER AMPLIFIERS
acoustics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KRYO K4.4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Void KRYO K4.4

Summary of Contents for Void KRYO K4.4

  • Page 1 OWNER'S MANUAL KRYO K4.4 - K5.5 POWER AMPLIFIERS acoustics...

  • Page 2: Power Amplifiers

    OWNER'S MANUAL KRYO K4.4 - K5.5 POWER AMPLIFIERS Kryo K5.4 CH A CH B CH C CH D LIMIT LIMIT POWER TEMP TEMP STBY Technical and design specifications are subject to change without notice...
  • Page 3 Kryo Series Power Amplifiers acoustics TO PREVENT ELECTRIC SHOCK, DO NOT Shock Hazard - Do Not Enter REMOVE TOP OR BOTTOM COVERS. Choc Hasard - N*entrent NO USER SERVICEABLE PARTS INSIDE. Schocke Hazard - Test Nicht REFER SERVICING TO QUALIFIED Betrete SERVICE PERSONNEL.
  • Page 4 Kryo Series Power Amplifiers acoustics Features Rugged, touring grade chassis. E.I.A. Standard 19" (48.3cm) rack-mountable. Ultra compact and lightweight 2u design. Super high frequency switch mode power supply. Optional add on Modules extend operational capability. Switchable (ICL) Intelligent Clip limiters prevent harmful signals from damaging loudspeakers. Input link switches for linking channels.

  • Page 5: Front Panel

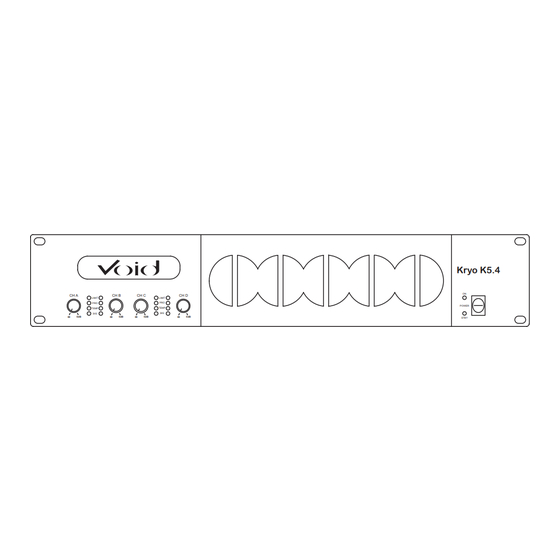

    Kryo Series Power Amplifiers acoustics Kryo K5.4 CH A CH B CH C CH D LIMIT LIMIT POWER TEMP TEMP STBY Front Panel 1.Power Switch Used to turn the amplifier on or off. 2.Power LED's The top blue LED lights when the amplifier is switched on. The lower amber LED lights when the amplifier is in stand-by mode and is remotely activated via Ethernet.

  • Page 6: Rear Panel

    Kryo Series Power Amplifiers acoustics Rear Panel 1.Input XLR's The input impedance of the balanced XLR's is 20KΩ. Pin 2 is signal + 2.Link / Dual Switch Used to link one input to an adjacent input. In dual mode each channel uses its own independent input.

  • Page 7: Configuration Switches

    Kryo Series Power Amplifiers acoustics Installation and Operation Configuration Switches The amplifier has a set of mini dip switches on the rear panel. These switches allow the activation of the Hi Pass filter and its frequency, the activation of the ICL clip limiter and bridge mode.

  • Page 8: Led Status

    Kryo Series Power Amplifiers acoustics LED Status In the event of incorrect connection or a malfunction, the amplifier will activate one or more of its LED's to warn about the problem. TEMP LIMIT Correct function: SIG lights to indicate a signal's presence. TEMP LIMIT ICL: The Intelligent Clip Limiter is ope-...

  • Page 9: System Connections

    Kryo Series Power Amplifiers acoustics System Connections Dual Mode In dual mode connect individual sources to inputs A, B, C and D and set all the link / dual switches to dual. Channel A's input will output from out A, channel B's input will output from out B and so on.
  • Page 10 Kryo Series Power Amplifiers acoustics Dual Channel Mode Linked Inputs Bridge Mode Bridge + Dual Mode Page 10...

  • Page 11: Protection System

    Kryo Series Power Amplifiers acoustics Protection System Each Kryo amplifier features a complete protection system that monitors the main amplifier parameters (load status, signal input, temperature, current etc) The system controls the amount of power that the amplifier delivers under three basic circumstances.

  • Page 12: Technical Specifications

    @ 1/8 rated power Dimensions : 48.3 cm (19") wide, 8.9 cm (3.5") high and 31.0 cm (12.2") deep. Weight: Kryo K4.4 : 8.0 Kg (18.7 pounds) net. 10.5 Kg (23.1 pounds) shipping weight. Kryo K5.5 : 8.0 Kg (18.7 pounds) net.

  • Page 13: Worldwide Service

    Failure to do so could delay the repair of your product. Warranty Registration Please take time to fill out the warranty registration form at the back of this manual and return it to Void Acoustics. Environmental WEEE Mark If you want to dispose of this product, do not mix with general household waste.

  • Page 14: Limited Warranty

    For a period of three (3) years from the date of delivery to the original purchaser (as shown on the original invoice or sales receipt), Void Acoustics (hereinafter "Void") warrants to the ORIGINAL OWNER of each new Kryo Series product (provided it was purchased at an Authorised Void Dealer) that it is free of defects in materials and workmanship and that each product will meet or exceed all factory published specifications for each respective model.
  • Page 16 Void Acoustics Unit 10B Dawkins Road Ind Est Poole Dorset BH15 4JD...
