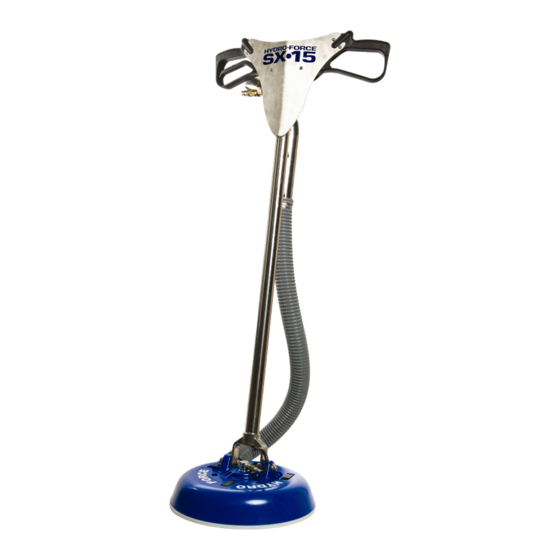

HARD SURFACE CLEANING TOOL
AW105
Hydro-Force Manufacturing
4282 South 590 West
Salt Lake City, UT 84123
801-268-2673
801-268-3856 FAX
SX-15
1
Revised: 07/02/14
LMANAW105

Advertisement

loading
Need help?

Need help?

Do you have a question about the SX-15 and is the answer not in the manual?

Questions and answers

Related Manuals for Hydro-Force SX-15

Summary of Contents for Hydro-Force SX-15

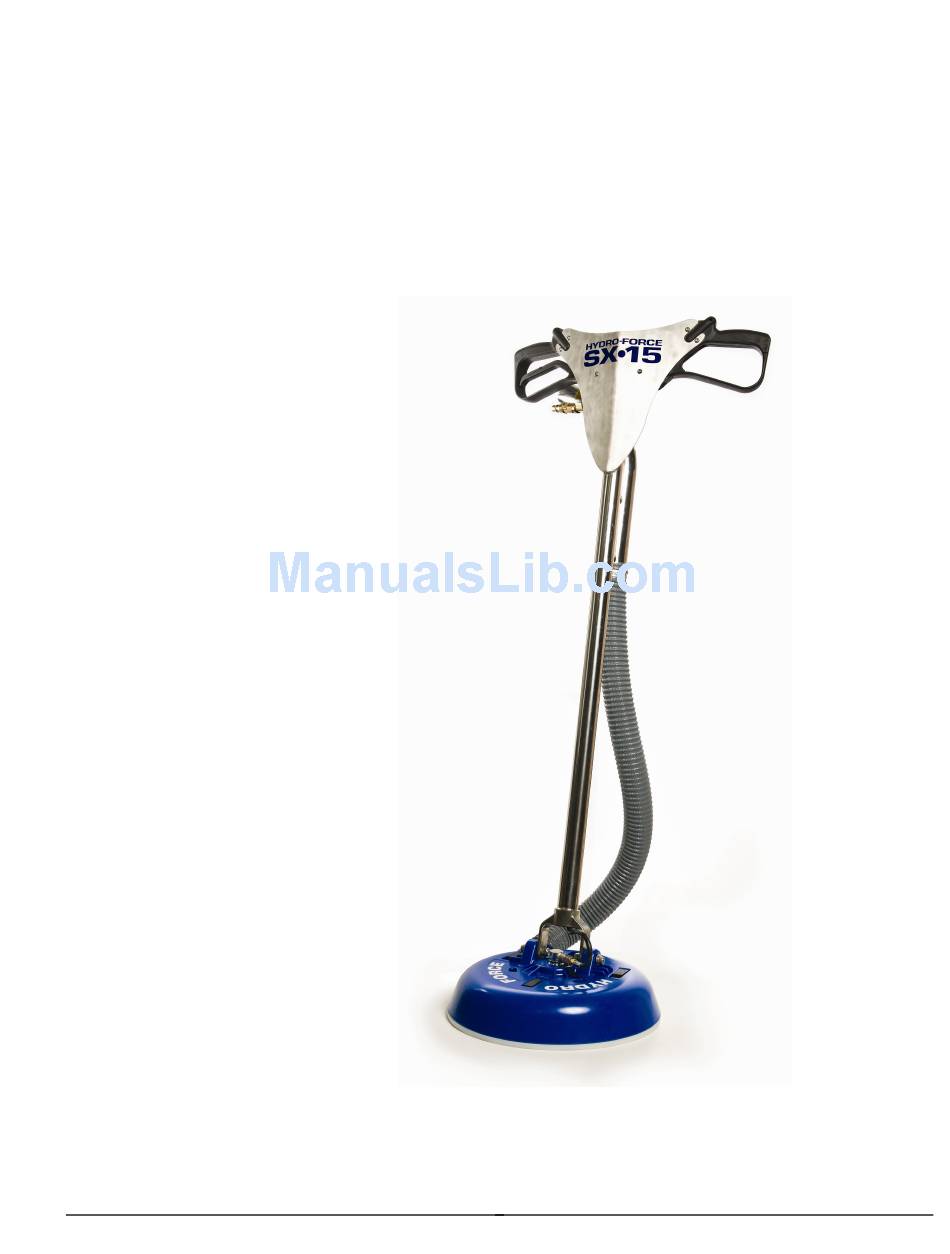

  • Page 1 Revised: 07/02/14 LMANAW105 SX-15 HARD SURFACE CLEANING TOOL AW105 Hydro-Force Manufacturing 4282 South 590 West Salt Lake City, UT 84123 801-268-2673 801-268-3856 FAX...
  • Page 2 Congratulations on your purchase of the SX-15 hard surface cleaning tool. Years of experience, engineering, and planning have gone into the design and manufacturing of the SX-15. We take a great deal of pride in the SX-15; our goal is no less than your complete satisfaction.

  • Page 3: Specifications

    After each use rinse the Inner Shell of the SX-15 to remove accumulated dirt & debris. The Inner Shell can be separated from the Outer Shell to clean the air flow channel between the two shells.
  • Page 4 To prevent the SX-15 from sticking to the floor and to make the SX-15 easier to move, push the vacuum relief slide to the right to open the vents. Try different slide position settings to get the best movement and recovery for your equipment and the type of floor being cleaned.
  • Page 5 Hard Boot & Brush Ring Use The SX-15 comes with a Hard Boot and Brush Ring. You have the option to choose to install either for the type of floor being cleaned and the equipment used. Brush Ring – AB53 Hard Boot –...
  • Page 6 3. Turn the deck over and turn the three rectangular retaining nuts on the retainers to align with the holes in the bottom of the Inner Shell, so they can pass through the holes. Retaining Nut Aligned for Inner Shell Removal Three Rectangular Retaining Nuts 4.
  • Page 7 Inner Shell. Retaining nuts may need to be tightened so that they each contact the plastic surface of the inner shell when the retaining levers are pushed back down to assure that the SX-15 assembly is secured properly. Retaining Nut Aligned to Secure Inner Shell 9.
  • Page 8 The recommended pressure for SX-15 operation is 700 to 1500psi. Set-up Procedure 1. Install the Hard Boot or Brush Ring on the SX-15 as needed. (See instructions for changing Hard Boot & Brush Ring on Page 5.) 2. Connect the vacuum hose from your extractor to the vacuum pipe on the SX-15 handle.
  • Page 9 The Gekko tool with the Edge & Corner attachment works great for cleaning the tile coving and edges. For heavier soiling not removed by the SX-15, use the Gekko tool with a five inch head straight on, blasting the soil off of the grout.

  • Page 10: Spray Gun

    SX-15 Parts SPRAY GUN 100010 DECAL SX-15 HANDLE NM5602 SPRAY GUN – BODY ONLY NA031B HANDLE SX-15 SS NM5774 VACUUM HOSE 2” ID NM5726 (QTY 3’) HOSE CLAMP PA051 (QTY 2) OUTER SHELL NM5763 DECAL SX-15 HEAD NM5600 HARD BOOT...
  • Page 11 SX-15 Parts SWIVEL W/ FLANGE HANDLE SX-15 SS DECAL SX-15 HEAD NX105 NM5774 NM5600 OUTER SHELL- TOP VIEW NM5763 SWELL LATCH (QTY 3) SOLUTION HOSE HP 3/16” ID X 50” NM5768 1/8” MPT & 1/4” MPT ENDS NM4088 BRUSH RING...
  • Page 12 BUSHING BRONZE 3/8” ID X 5/8” OD X 2” NM5770 (QTY 2) SX-15 Parts HANDLE SX-15 SS NM5774 NUT 3/8-16 SS NYLOCK NM4085 (QTY 2) SCREW 3/8-16 X2” SS SOC HEAD NM5780 (QTY 2) WASHER FLAT 3/8” SS PA189 (QTY 2)
  • Page 13 SX-15 Parts HANDLE SX-15 SS NM5774 OUTER SHELL- BOTTOM VIEW NM5763 RETAINING NUT - RECTANGULAR NM5784 (QTY 3) INNER SHELL NM5761 HARD BOOT NM5772 OUTER SHELL NM5763...
  • Page 14 SX-15 Parts VEEJET 1/8” SS MEG0502 (QTY 2) VACUUM RELIEF RING B632 NM5765 SPRAY BAR SS SWIVEL W/ FLANGE NX115 NX105 INNER SHELL – TOP VIEW INNER SHELL – BOTTOM VIEW NM5761 NM5761 SCREW 1/4-28 X 1/2” SS PHP SPRAY BAR SS...
  • Page 15 NM5778 NM5776 NM4088 SPRAY GUN – BODY ONLY SPRAY GUN NA031B 100010 NUT 10-32 NYLOCK SPRAY GUN – BODY ONLY NM4028 (QTY 6) NA031B SPRAY GUN 100010 DECAL SX-15 HANDLE NM5602 SCREW 10-32 X 1-5/8” BHSOC SS NM4080 (QTY 6)
  • Page 16 SX-15 Parts ELBOW 45° 1/4” STREET BR272 SPRAY GUN 100010 STRAINER BODY NA0802 QC 1/4” Male AH102B REPLACEMENT VALVE FOR 100010 SPRAY GUN STRAINER ADAPTER ELBOW 90° 1/4” STREET NA033 NA0804 BR282 VALVE REPAIR KIT FOR 100010 SPRAY GUN NA033A QC 1/4”...

  • Page 17: Limited Warranty

    LIMITED WARRANTY Your SX-15 tile cleaning tool is designed to give you years of reliable service. If a problem should arise contact your distributor or Hydro Force for assistance. Hydro-Force warrants the SX-15 tile cleaning tool to be free from defects in material or...
