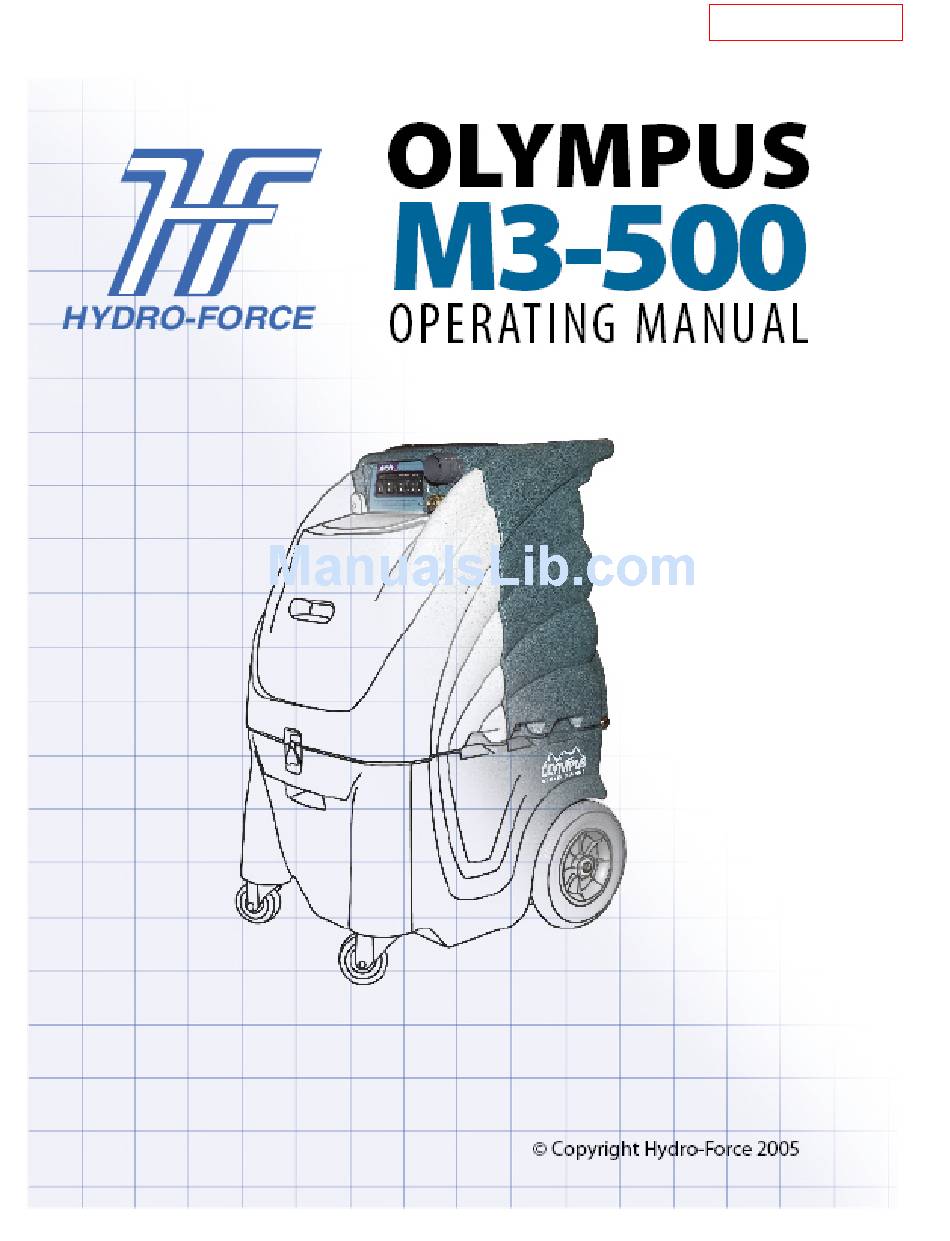

Hydro-Force Olympus M3-500 Operating Manual

High performance extractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
REVISED: 1-31-06
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Olympus M3-500 and is the answer not in the manual?

Questions and answers

Related Manuals for Hydro-Force Olympus M3-500

Summary of Contents for Hydro-Force Olympus M3-500

  • Page 1 REVISED: 1-31-06...

  • Page 2: Table Of Contents

    Olympus M3-500 Operating Manual TABLE OF CONTENTS TOPIC PAGE # • Introduction • Technical Specifications • Optional Equipment SECTION 1: Operational Safety • Electrical Safety • Mechanical Safety SECTION 2: Operation Procedures • Electrical Supply • Water Supply & Chemicals •...

  • Page 3: Introduction

    Years of experience, engineering, and planning have gone into the design and manufacturing of the M3-500. We take a great deal of pride in the M3-500; our goal is no less than your complete satisfaction.

  • Page 4: Technical Specifications

    Technical Specifications M3-500 High Performance Extractor Height: 38” Length: 28” Width: 19-1/2” Weight: 105 lbs. Solution Tank Capacity: 12 gallon Recovery Tank Capacity: 12 gallon Solution Pump: Pump-Tec #205 pump with 1/3HP Motor 0-500 psi – 2.50 - 1.40 gpm Vacuum Motors: Two AMETEK Lamb 5.7”...

  • Page 5: Optional Equipment

    Additional / Optional Equipment Auto Fill System with chemical draw: M012 Metering Tip Kit: PDE001 Auto Pump-out System: M016 Pump-out Hose: AH65 Hydro-Filter Inline Filter: AC11 Replacement Bags for Hydro-Filter: AC11A Hydro-Force Injection Sprayer: AS08 Hydro-Force Revolution Sprayer: AS08R 3.5” Hydry Upholstery Tool: AW50A 4.5”...

  • Page 6: Electrical Safety

    • The two power cords must be plugged into separate circuits during operation. Each cord can be on a 15amp or 20amp circuit. If the M3-500 has an Auto Pump-Out system Cord #1 must be on 20amp circuit. The use of a Breaker Buddy (Hydro-Force part number AX49) will ensure that the two cords are operating on different circuits (see page 8 for details.)

  • Page 7: Mechanical Safety

    Store, transport, and use this equipment only in temperatures well above freezing. (32ºF or 0ºC). If you suspect the M3-500 has been frozen, do not plug in or turn on machine until you are sure it has thawed completely.

  • Page 8: Section 2: Operation Procedures

    SET UP AND OPERATION 1. Electrical Cords: Two 25’ power cords are supplied with the Olympus M3-500. Cord #1 powers Vacuum Motor #1 (and Waste Pump if equipped with optional Auto Pump-out System.); Cord #2 powers the high pressure Solution Pump and Vacuum Motor #2.

  • Page 9: Water Supply & Chemicals

    16-1/4oz of chemical to each gallon of water.) • The standard tip used with the M3-500 is the turquoise tip with a dilution rate of 256:1. This means that for each gallon of water flowing into the machine, 1/2 ounce of chemical will be added.

  • Page 10: Chemical Metering Tips

    How to Change the Metering Tip: • Remove the chemical feed hose from the barb on the side of the proportioning valve. • Unscrew and remove the old tip. • Screw in the proper tip for your chemical tip and place the hose back on the barb Proportioning Valve Turquoise Tip Dilution 256 - 1...

  • Page 11: Water Supply

    Water Supply: • Once the correct metering tip is in place: o Connect the Auto-Fill Water Supply Hose to the water inlet (the male quick-connect on the front of the machine.) o Connect the other end of the hose to a water faucet, and then turn on the water. •...

  • Page 12: Pump Priming

    3. Priming the High-Pressure Pump: Once water is in the solution tank, the high-pressure solution pump must be primed: • Connect the short prime hose to the solution outlet (female quick-connect on the front of the machine.) • Direct the end of the hose back into the solution tank and turn the solution pump switch to the ON position.

  • Page 13: Solution & Vacuum Hoses

    5. Connection of Vacuum Hoses: A 1-1/2” x 25’ Vacuum Hose is included with the M3-500. The 2” cuff on the 25’ vacuum hose is connected to the Vacuum Barb on the front of the machine. The other end with the 1-1/2” cuff is connected to the cleaning tool.

  • Page 14: Pump-Out System

    6. Optional Auto Pump-out System - Connection of Pump-out Hose: The pump-out hose is a 50’ section of 3/4” garden hose. • Remove the cap from the pump-out outlet fitting on the back of the machine. • Connect the pump-out hose to the outlet fitting. •...

  • Page 15: Pressure Adjustments

    7. Pressure Adjustment: When the high-pressure solution pump is on and primed, pressure will show on the gauge. • To decrease the pressure, turn the brass knob on the pressure regulator to the left (counter- clockwise.) • To increase the pressure, turn the brass knob on the pressure regulator to the right (clockwise.) •...

  • Page 16: Shutdown Procedures

    Shutdown Procedures: • If using the auto-fill system, turn the water supply off before finishing each job. This will allow use of the water and chemical already in the tank, and will reduce the amount of excess water to be disposed of later. •...

  • Page 17: Troubleshooting

    Section Troubleshooting Troubleshooting – Olympus M3-500 Problem Cause Solution Machine not Building circuit breaker tripped. Reset breakers or move cords to other outlets turning on - Faulty power cord Replace cord (AX32) No power Faulty switches or internal wiring Check wiring & test switches - Repair as needed *...
  • Page 18 Problem Cause Solution Pump-out Building circuit breaker tripped. Reset breakers or move cords to other outlets not working Faulty power cord Replace cord (AX32) Check wiring & test switches - Repair as needed * Faulty switches or internal wiring (NM5008) Optional Pump-out pump faulty Replace pump-out pump (NM5053)
  • Page 19 Problem Cause Solution Solution Tank Water source turned off Turn on faucet or find other water source not filling Float not on valve arm Reconnect float to valve arm - Adjust to proper height/level Float valve faulty Repair or replace float valve (NM5055) Optional Water hose restricted Un-kink, clean out or replace hose...

  • Page 20: Solution Flow Path

    M3-500 Flow Path shown with optional Solution Flow Path Auto-Fill System M012 Inlet Quick Float Valve Connect Solution Tank Outlet Quick Connect Filter Gauge Chemical Jug Pump – AP49 Pressure Regulator PT021 Denotes Denotes Water Denotes by-pass Denotes incoming water...

  • Page 21: Wiring Diagrams

    M3-500 Wiring Diagram - Standard Solution Vacuum #2 Vacuum #1 Pump VACUUM VACUUM 3-Stage 3-Stage SOLUTION PUMP CORD #1 WHITE TO COMMON GROUND FOR ALL COMPONENTS GREEN WHITE TO COMMON GROUND FOR ALL COMPONENTS GREEN CORD #2 BLACK...
  • Page 22 M3-500 Wiring Diagram With Auto Pump-Out System Solution Waste Pump Vacuum #2 Vacuum #1 Pump VACUUM VACUUM 3-Stage 3-Stage SOLUTION PUMP CORD #1 WHITE TO COMMON GROUND FOR ALL COMPONENTS GREEN WASTE PUMP WHITE TO COMMON GROUND FOR ALL COMPONENTS...
  • Page 23 OLYMPUS M3-500 STANDARD SWITCH PANEL: Vacuum #1 – Power from Cord #1. Solution Pump Switch – Power from Cord #2. When the switch is turned to the ON When the switch is turned to the ON position position power is supplied to the vacuum power is supplied to the solution pump motor.
  • Page 24 OLYMPUS M3-500 WITH AUTO PUMP-OUT SWITCH PANEL: Solution Pump Switch – Power from Cord #2. Vacuum #1 – Power from Cord #1. When the switch is turned to the ON position When the switch is turned to the ON power is supplied to the solution pump motor.

  • Page 25: Maintenance

    Section Maintenance Proper maintenance is required to keep the M3-500 operating properly, prevent downtime and to extend the life of your equipment. WARNING: Disconnect electrical power before performing any service or maintenance inside machine base or before testing or repairing switches or power cords.
  • Page 26 Inside the recovery tank, on top of the stand pipe, is the Vacuum Shutoff Assembly. It functions to prevent debris and water from being sucked into the vacuum motors. Operating the M3-500 without the Vacuum Shutoff Assembly or with a poorly maintained assembly will greatly decrease the life of the vacuum motors and will void the warranty.
  • Page 27 A torn filter bag will allow debris past the filter and into the recovery tank. This debris can clog the Waste Pump and the Vacuum Shutoff Assembly. The Hydro-Filter must be examined and cleaned regularly to keep the M3-500 functioning properly: • Push the latch lever and open the Hydro-Filter lid.
  • Page 28 CLEAN WASTE PUMP-OUT PUMP: (With optional Auto Pump-Out System Only) Build-up of fine silt inside the Waste Pump can clog the pump even if the pump is not used, so this maintenance procedure should be performed regardless of whether the Waste Pump has been used. •...
  • Page 29 • Close the drain valve and dispose of the water. FLUSH SOLUTION TANK AND PUMP: (continued from previous page) Direct the end of the prime hose into the recovery tank vacuum barb Vacuum acid solution out of Solution Tank CLEAN PUMP INLET FILTER A restricted Pump Inlet Filter can prevent the solution pump from providing adequate pressure for cleaning.
  • Page 30 (With optional Auto-Fill System Only) Chemical build-up in the chemical system can prevent the system from drawing chemical. • Rinse the chemical system with fresh water (For heavy chemical build-up, a mild acid can be added to the rinse.) Place Chemical Feed Hose into •...
  • Page 31 LUBRICATE PRESSURE REGULATOR O-RINGS: To maintain consistent adequate pressure delivery to the cleaning tool, the piston seal of the M3-500 pressure regulator must be lubricated regularly. 1. Drain the solution tank before proceeding. Brass Knob 2. Remove Brass Knob from the regulator body.
  • Page 32 CLEAN RECOVERY TANK DRAIN Debris and sand accumulation in the drain valve can damage the valve or prevent it from closing completely. This will result in dirty water leaking from the valve. Use of the Hydro-Filter and regular cleaning of the recovery tank will help prevent this, but occasionally the drain valve will require cleaning or replacement.
  • Page 33 Then turn the solution pump off. 5. Connect any cleaning tools that will be stored with the M3-500. Turn the solution pump switch to the ON position. Direct tool spray back into the solution tank or into a bucket. Turn the solution pump off and repeat for all tools to be protected.

  • Page 34: Pump

    Section Parts Replacement parts available for repair of your M3-500 Replacement parts available for repair of your M3-500. M3-500 PUMP – AP49 PARTS ASSEMBLY KIT C – PT056 KIT A – PT054 KIT B – PT055...

  • Page 35: Pressure Regulator

    PUMPTEC #205 PUMP – AP49 ITEM DESCRIPTION PART NUMBER KIT A PLUNGER & SEALS PT054 KIT B VALVES & O-RINGS PT055 KIT C CAM & BEARING PT056 MANIFOLD 0205-0504-0004 PUMP HEAD 0205-0502-0007 STUFFING BOX 0205-0503-0001 CRANKCASE 0205-0507-0001 PLUNGER GUIDE 0204-0010-0002 HEAD BOLT BOLT-1/4-20 X 2-3/4 SHCS-SS MOUNT BOLT...

  • Page 36: Auto-Fill - Optional

    OLYMPUS AUTO-FILL Part Number Description 16-3 3’ Discharge Tubing FLOAT VALVE ASSEMBLY 25-78 Pipe Nipple (Optional) 34-17 16” Chain with Connector 34-22 Backflow Preventer 35-12 Float Hanger Clip – PDE35-12 35-18 Float Assembly – PHY005-003 35-31 Magnet Housing 35-32 Magnet Holder...

  • Page 47: Warranty

    Section Limited Warranty Your Olympus M3-500 is designed to give you years of reliable service. If a problem should arise use the troubleshooting section in the operation manual to diagnose and correct the problem if possible. If you are unable to determine the cause or solution to the problem contact your distributor or Hydro-Force for assistance.
