Powerfinn R1100 Installation And User Manual

Advanced battery chargers
Hide thumbs Also See for R1100:
Table of Contents

Advertisement

Quick Links

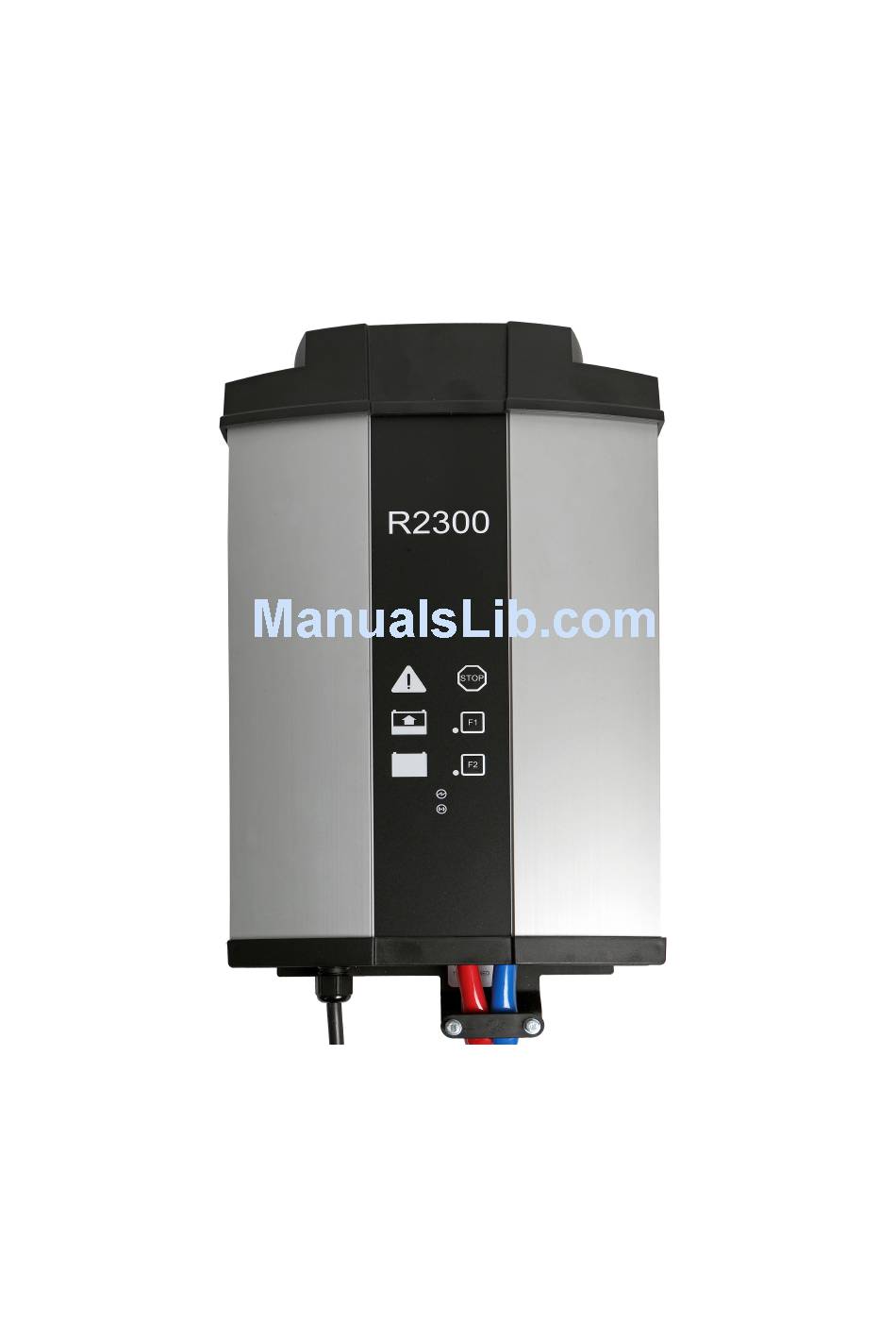

R1100 and R2300
Installation and User Manual
Advanced Battery Chargers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R1100 and is the answer not in the manual?

Questions and answers

Related Manuals for Powerfinn R1100

Summary of Contents for Powerfinn R1100

  • Page 1 R1100 and R2300 Installation and User Manual Advanced Battery Chargers...

  • Page 2: Table Of Contents

    Algorithms............................12 Charger dimensions..........................15 R1100 and R2300 Powerfinn Robust series chargers uses modern switching technology. The intelligent microcontroller extends the life of the battery by supervising the charging process. The charger are compact, silent and meets the EU safety and EMC requirements.

  • Page 3: Installation And Warnings

    Installation and Warnings The following points must be respected when choosing a location for the charger. 1. In fixed installation the operation temperature range is -35°C to +55°. Higher than +40° ambient temperature will limit the output power. Caution: Mains cord & battery cable "indoor use" min temperature +5ºC. Do not bend in cold environment.

  • Page 5: Operations

    Operations Read these operating instructions carefully before using the charger for the first time. Also read the safety instructions in the next paragraph thoroughly. It must be ensured that children do not play with the device. To charge a battery with ”Robust series” charger, follow these instructions: Charger is configured with factory default settings.

  • Page 6: Lights And Push Buttons

    Lights and push buttons Chargers front label should look following. Main is connected. Radio module is ON. Charger can be assembled with optional radio module. Module allows access to configuration and history log of the charger. Light symbol definitions: Error Charging Ready No light...
  • Page 7 1. Light alternatives and meaning: None of indicators are lit: Charger is waiting for a battery connection. Only small blue led lights continuously. Green flashing: STOP pressed, charging paused. Yellow continuously lit: main charging phase. Defined in charging algorithm. Additional charging. Defined in charging algorithm.

  • Page 8: Safety Instructions

    Safety Instructions In addition to the safety measures mentioned under ‘Operations’ (page 5), the following personal precautions should be taken whenever charging batteries. 1. For emergency situations ensure in advance that help is available in time of need. 2. Batteries contain acid that is harmful to the eyes, skin and clothes. Always wear overalls and safety goggles.

  • Page 9: Trouble-Shooting And Repair

    Trouble–shooting and repair If the cause of malfunction cannot be found, contact your retailer or the manufacturer. Only authorized persons can repair the charger. Guarantee The charger has a guarantee of two years from the date of purchase. Guarantee covers manufacturing and component failures and is valid only if the equipment is installed and used according to the instructions in this manual.
  • Page 10 Following table equals with program version 11613002v02. Check the program version from the charger labels! Bold text in coloured areas indicates LED “ON”. item Green/ Red/ Blue/ small Yellow/ Ready Error Mains green/ Charging Radio algorithm LK10-06 freely ventilated yellow green blue s.green...

  • Page 11: Connectors And Pin Orders

    Connectors and pin orders: J-Connectors J-connector HD26 Operation and pin cable Connector's numbers wire colors pin order J23-1 black LED green anode (10mA current source) J23-2 LED common cathode (Same ground as is in battery minus) J23-3 green LED red anode (10mA current source) J23-4 yellow LED yellow anode (10mA current source)

  • Page 12: Algorithms

    Algorithms LK10-06 freely ventilated (Temperature sensor supported) LK10-04 wet puls (Temperature sensor supported)
  • Page 13 LK20-09 valve ventilated Sonnenschein (Temperature sensor not supported) LK10-05 wet with constant current maintenance charging (Temperature sensor supported)
  • Page 14 PP100 unsealed (Temperature sensor supported) PP101 sealed (Temperature sensor supported) PP102 Sonnenschein (Temperature sensor supported)

  • Page 15: Charger Dimensions

    Charger dimensions Dimension drawing for R2300 which is always fan installed. Dimension drawings for R1100 with fan and R1100 without fan.
