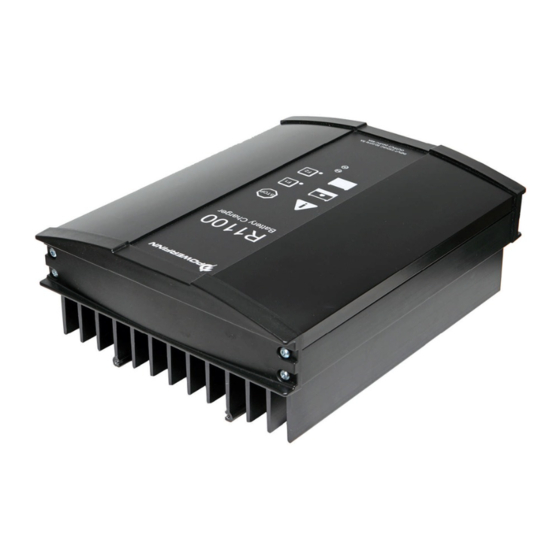

Powerfinn R1100 Installation And User Manual
Advanced battery chargers
Hide thumbs
Also See for R1100:
- Installation and user manual (14 pages) ,
- Installation and user manual (16 pages) ,
- Installation and user manual (17 pages)
Related Manuals for Powerfinn R1100
Summary of Contents for Powerfinn R1100

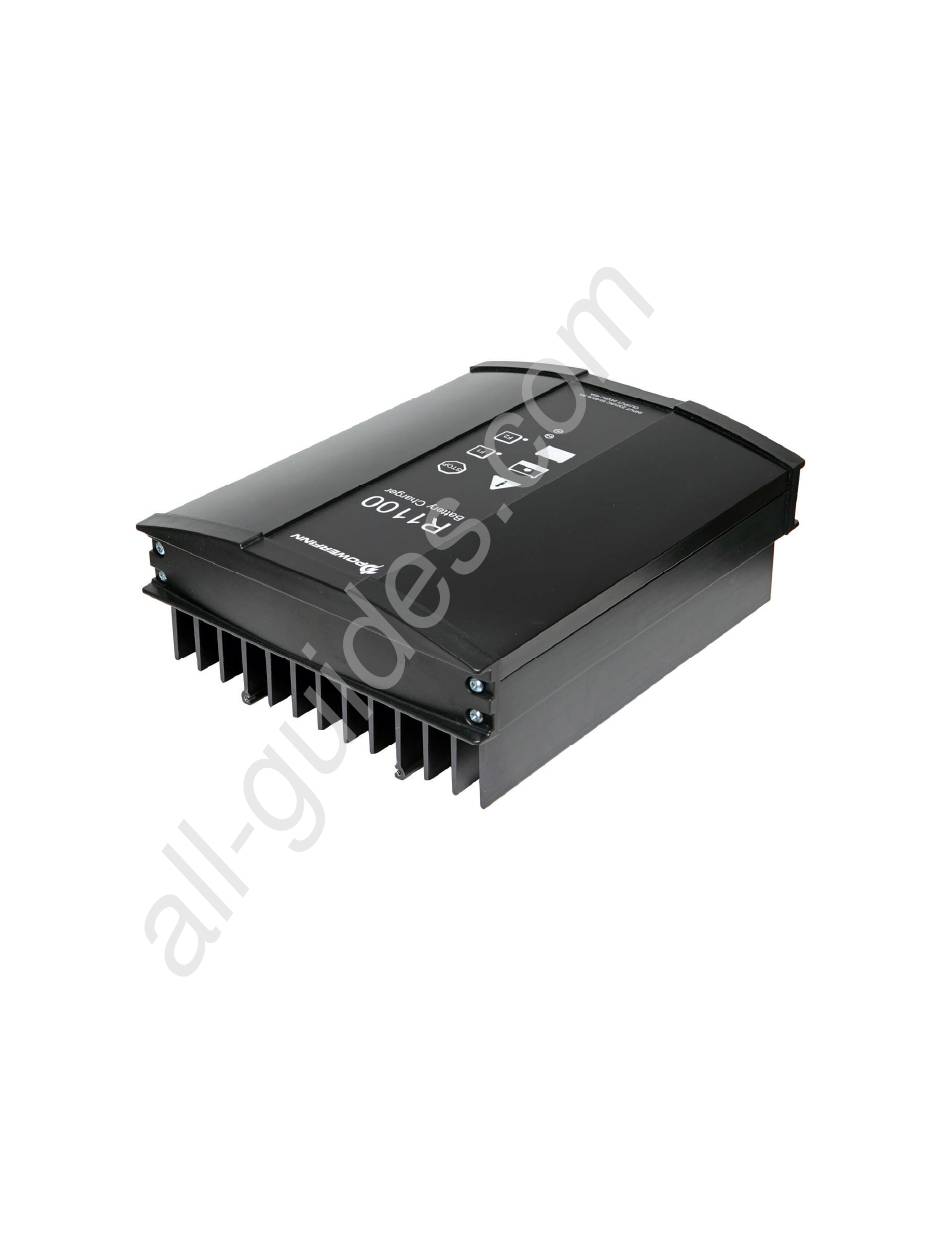

- Page 1 All manuals and user guides at all-guides.com R1100 Installation and User Manual Advanced Battery Chargers...
-
Page 2: Table Of Contents
Protection class against water & dirt is IP54. General R1100 chargers are available for a variety of battery types. The charger type and charging algorithm should correspond to the battery (sealed, vented, etc.). Attempting to charge a battery with the wrong type of charger may result in considerable damage. -
Page 3: Installation And Warnings
All manuals and user guides at all-guides.com Installation The following points must be respected when choosing a location for the charger. Warnings 1. In fixed installation the operation temperature range is -35°C to +55°. Higher than +40° ambient temperature will limit the output power. - Page 4 All manuals and user guides at all-guides.com...
-
Page 5: Operations
It must be ensured that children do not play with the device. To charge a battery with the R1100 charger, follow these instructions: Charger is configured with factory default settings. The factory default setting is 12 cells algorithm LK10-06 freely ventilated, capacity 50 Ah. - Page 6 All manuals and user guides at all-guides.com 5. Front panel indicators Green flashing: STOP pressed, charging paused. Yellow continuously lit: main charging phase. Defined in charging algorithm. Additional charging. Defined in charging algorithm. Equalize charging. Defined in charging algorithm. Charging ready, maintenance charging. Defined in charging algorithm.
-
Page 7: Safety Instructions
All manuals and user guides at all-guides.com Safety In addition to the safety measures mentioned under ‘Operations’ (page 5), the following personal precautions should be taken whenever Instructions charging batteries. 1. For emergency situations ensure in advance that help is available in time of need. -
Page 8: Troubleshooting And Repair
All manuals and user guides at all-guides.com Trouble– If the cause of malfunction cannot be found, contact your retailer or the manufacturer. Only authorized persons can repair the charger. shooting and repair Guarantee The charger has a guarantee of two years from the date of purchase. Guarantee covers manufacturing and component failures and is valid only if the equipment is installed and used according to the instructions in this manual. -
Page 9: Charger Dimensions
All manuals and user guides at all-guides.com LK10-06 freely ventilated Algorithms LK10-04 wet puls... - Page 10 All manuals and user guides at all-guides.com LK20-09 valve ventilated Sonnenschein LK10-05 wet with constant current maintenance charging...
- Page 11 All manuals and user guides at all-guides.com PP100 unsealed PP101 sealed...
- Page 12 All manuals and user guides at all-guides.com PP102 Sonnenschein...
- Page 13 All manuals and user guides at all-guides.com Charger dimensions...
- Page 14 All manuals and user guides at all-guides.com KP039.doc...
