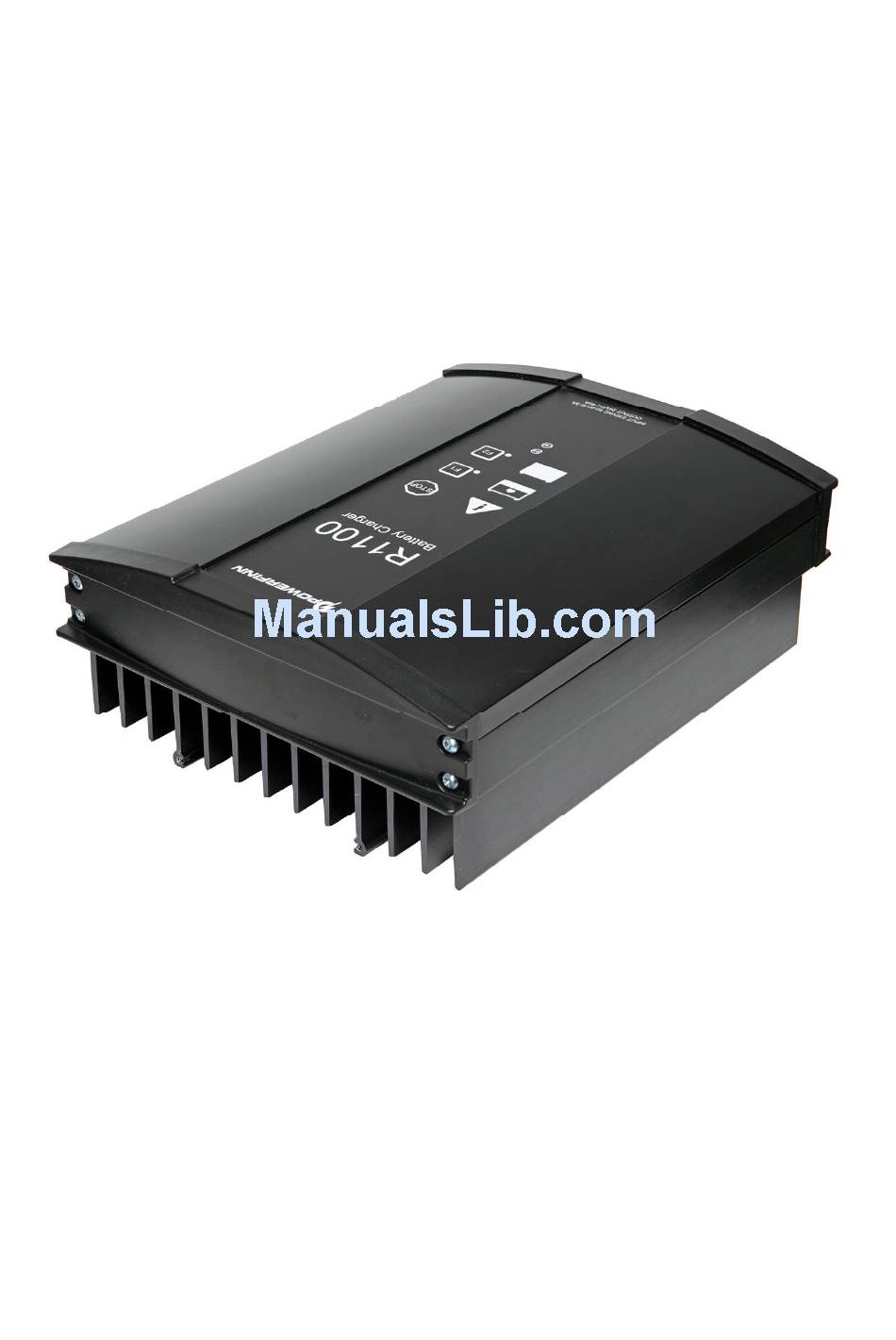

- Page 1 R1100 Installation and User Manual Advanced Battery Chargers...
- Page 2 The charger is compact, silent and meets the EU safety and EMC requirements. Protection class against water & dirt is IP54. R1100 chargers are available for a variety of battery types. General The charger type and charging algorithm should correspond to the battery (sealed, vented, etc.).
- Page 3 The following points must be respected when choosing a location for Installation the charger. Warnings 1. In fixed installation the operation temperature range is -35°C to +55°. Higher than +40° ambient temperature will limit the output power. Caution: Mains cord & battery cable "indoor use" min temperature +5ºC. Do not bend in cold environment.
- Page 5 It must be ensured that children do not play with the device. To charge a battery with the R1100 charger, follow these instructions: Charger is configured with factory default settings. The factory default setting is 12 cells algorithm LK10-06 freely ventilated, capacity 50 Ah.
-
Page 6: Front Panel Indicators
5. Front panel indicators Green flashing: STOP pressed, charging paused. Yellow continuously lit: main charging phase. Defined in charging algorithm. Additional charging. Defined in charging algorithm. Equalize charging. Defined in charging algorithm. Charging ready, maintenance charging. Defined in charging algorithm. Alarm, no specific. - Page 7 In addition to the safety measures mentioned under ‘Operations’ (page Safety 5), the following personal precautions should be taken whenever Instructions charging batteries. 1. For emergency situations ensure in advance that help is available in time of need. 2. Batteries contain acid that is harmful to the eyes, skin and clothes. Always wear overalls and safety goggles.
- Page 8 If the cause of malfunction cannot be found, contact your retailer or the Trouble– manufacturer. Only authorized persons can repair the charger. shooting and repair The charger has a guarantee of two years from the date of purchase. Guarantee Guarantee covers manufacturing and component failures and is valid only if the equipment is installed and used according to the instructions in this manual.
- Page 9 LK10-06 freely ventilated Algorithms LK10-04 wet puls...
- Page 10 LK20-09 valve ventilated Sonnenschein LK10-05 wet with constant current maintenance charging...
- Page 11 PP100 unsealed PP101 sealed...
- Page 12 PP102 Sonnenschein...
- Page 13 Charger dimensions...
- Page 14 KP039.doc...
