Installation and Warnings The following points must be respected when choosing a location for the charger. 1. In fixed installation the operation temperature range is -35°C to +55°. Higher than +40° ambient temperature will limit the output power. Caution: Mains cord & battery cable "indoor use" min temperature +5ºC. Do not bend in cold environment.
Operations Read these operating instructions carefully before using the charger for the first time. Also read the safety instructions in the next paragraph thoroughly. It must be ensured that children do not play with the device. To charge a battery with ”Robust series” charger, follow these instructions: Charger is configured with factory default settings.

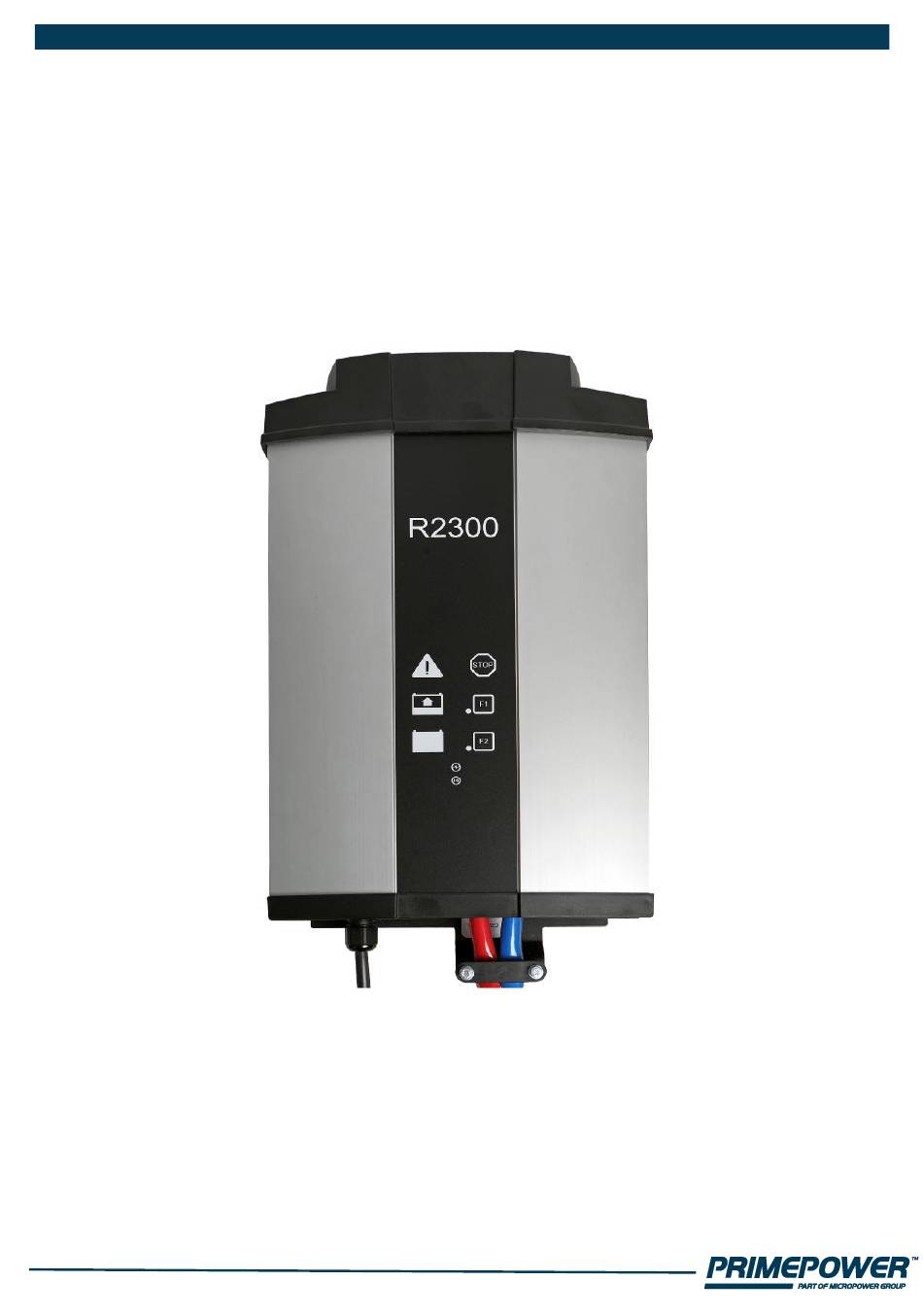

Lights and push buttons Chargers front label should look following. Main is connected. Radio module is ON. Charger can be assembled with optional radio module. Module allows access to configuration and history log of the charger.
Safety Instructions In addition to the safety measures mentioned under ‘Operations’ (page 5), the following personal precautions should be taken whenever charging batteries. 1. For emergency situations ensure in advance that help is available in time of need. 2. Batteries contain acid that is harmful to the eyes, skin and clothes. Always wear overalls and safety goggles.
Trouble–shooting and repair If the cause of malfunction cannot be found, contact your retailer or the manufacturer. Only authorized persons can repair the charger. Guarantee The charger has a guarantee of two years from the date of purchase. Guarantee covers manufacturing and component failures and is valid only if the equipment is installed and used according to the instructions in this manual.
Page 10
Following table equals with program version 11613002v02. Check the program version from the charger labels! Bold text in coloured areas indicates LED “ON”. item Green/ Blue/ small Yellow/ Ready Main green/ Charging Erro Radio yellow green blue s.green algorithm LK10-06 freely ventilated green algorithm LK10-04 wet puls yellow...
J-connector HD26 Operation Connectors cable Connector's and pin wire colors pin order numbers J23-1 black LED green anode (10mA current source) J23-2 LED common cathode (Same ground as is in battery minus) J23-3 green LED red anode (10mA current source) J23-4 yellow LED yellow anode (10mA current source)
