Veracity OUTREACH Installation Manual

INSTALLATION GUIDE

Where to use OUTREACH
Cables in an Ethernet network are limited in length to 100 metres
(328 feet), however in some installations it is necessary to connect
network devices that are more than 100 metres apart.
OUTREACH solves this problem by acting as a signal repeater, which
can be used to join network cables together and create a longer
overall network link.

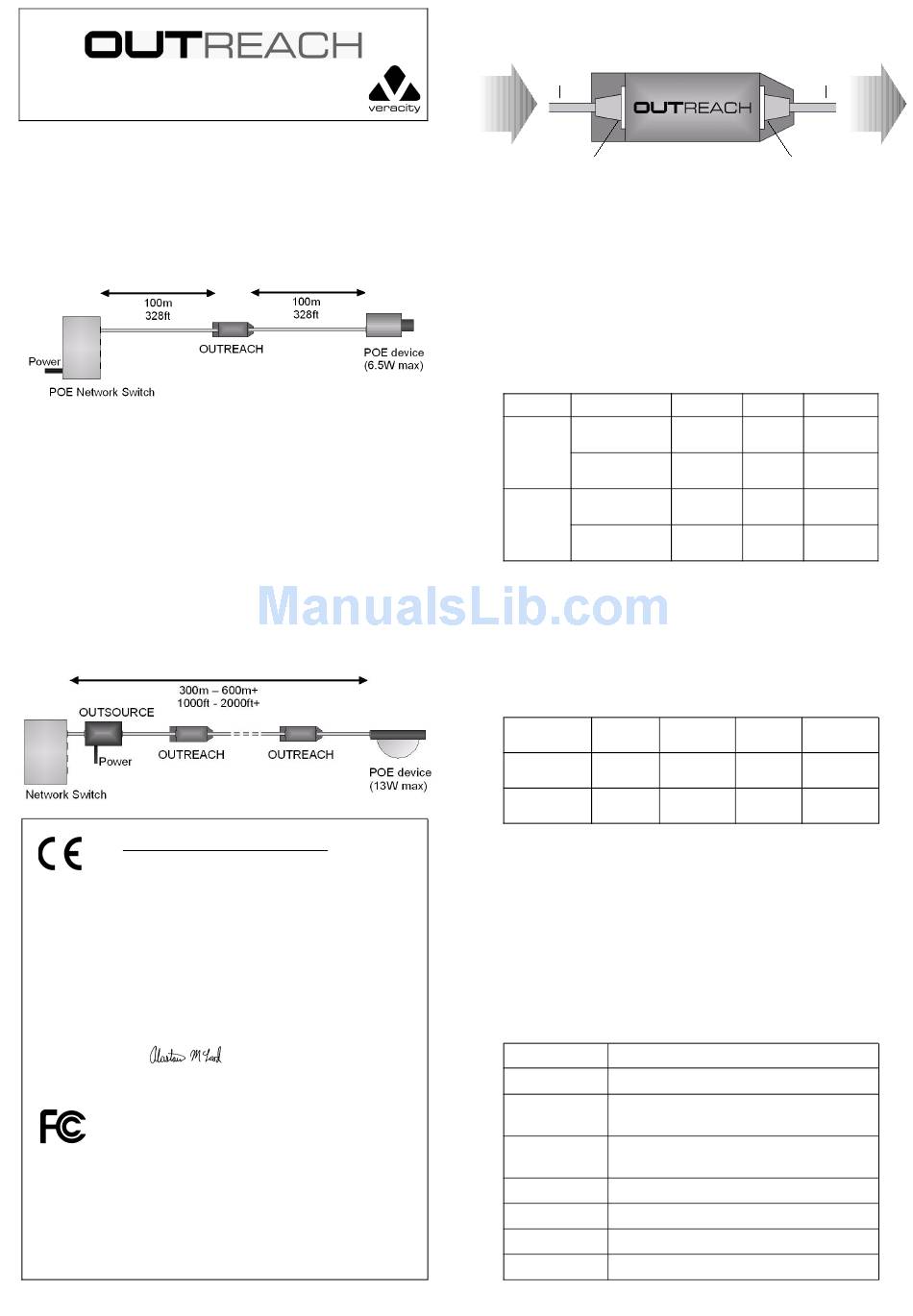

In the example above, a single OUTREACH allows a network camera
to be installed up to 200 metres (656 feet) away from a network
switch. The OUTREACH is connected in-line after the first 100
metres of cable have been laid, allowing a further length of up to
100 metres to be installed up to the camera.
The OUTREACH draws its own power from the network switch using
Power Over Ethernet (POE), and also forwards POE to the camera.
Power cable installation is only required at the network switch.
OUTREACH is compatible with all IEEE-compliant POE devices such
as IP phones and Wireless Access Points and requires no setting-up
on installation, as it configures its power and data forwarding
functions automatically.
In addition, two or more OUTREACH units may be connected in a
chain to extend cable reach beyond 200 metres (656 feet).
Maximum range and POE power can also be increased by installing
an OUTSOURCE power injector, as shown in the diagram below.
EC Declaration of Conformity
In accordance with EN 45014:1998
We, Veracity UK Ltd. of
declare that the equipment
model number
conforms to the essential protection requirements of the EMC Directive 89/336/EEC
as amended. The following EMC standards have been applied:
BS EN 55022:1998 Emissions (Class B Radiated)
BS EN 55024:1998 Immunity (BS EN 61000-4-2:1995 Immunity to ESD, BS EN
61000-4-3:2000 Immunity to Radiated RF Fields (3V/m))
I hereby declare that the equipment named above has been been found to comply
with the relevant sections of the above referenced specifications. The unit complies
with all essential requirements of the EMC Directive.
Responsible Person
Issued 17 th December 2007
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference
at his own expense.
TM
6 Barns Street, Ayr, KA7 1XA
"OUTREACH" Ethernet repeater
VOR-OR01
Mr Alastair McLeod, Director
at Ayr
Installation
network
cable
f rom
power
source
RJ45
connector
Quick installation sequence:
•
Connect the POE IN connector to a POE source (such as a
network switch)
•
Connect the POE OUT connector to a POE powered device (such
as an IP camera)
•
Wait a few seconds for all devices to be enabled
•
Check the status of the LED indicators

LED indicators

Connector LED
POWER GOOD
POE IN
LINK / ACTIVITY
POE ENABLED
POE OUT
LINK / ACTIVITY
In nearly all installations both green power LEDs will light solidly and
both yellow network LEDs will light or blink, and no further action
needs to be taken.
If either green LED blinks, or any LED fails to light, consult the
detailed FAQ / troubleshooting section overleaf.
Range
Max device 13 Watts
power: (Class 3)
Range with
N/A
POE switch:
Range with 300m
OUTSOURCE: 984ft
The maximum distances above are typical for installations using
24AWG Cat5 cable or better. Actual limits depend on cable and
device characteristics and may not necessarily be multiples of 100
metres.
When designing your network installation, use the table above and
locate an OUTREACH every 100 metres (328 feet) from the POE
source.
If extra power or range is required post-installation, it is very
straightforward to upgrade the link by fitting an OUTSOURCE.

Technical specification

Power Typical: 1 Watt, Maximum: 2.2 Watts
POE IEEE 802.3af Class 0 device (0 – 13 Watts)
Ethernet 100BASE-TX Full Duplex only
Auto-Negotiation and Auto-Crossover supported
Dimensions 70x34x20mm / 2.8x1.3x0.8"
( WxDxH ) 100x37x20mm / 3.9x1.5x 0.8" inc. screws and tabs
Mounting Two 7mm / 0.28" dia holes, 84mm / 3.3" apart
Weight 85 g / 3 oz
Operating temp -10 to 50°C / 14 to 122°F
Relative humidity Up to 85%, non-condensing
network
cable
RJ45
connector
OFF ON FLASHING
no power power power
good marginal
no Ethernet Ethernet network
link link good activity
no POE POE out insufficient
enabled enabled power / error
no Ethernet Ethernet network
link link good activity
6.5 Watts 3.8 Watts 0 Watts
(Class 2) (Class 1) (no POE)
300m 400m 700m
984ft 1310ft 2300ft
500m 700m 1000m
1640ft 2300ft 3280ft
to
powered
dev ice
