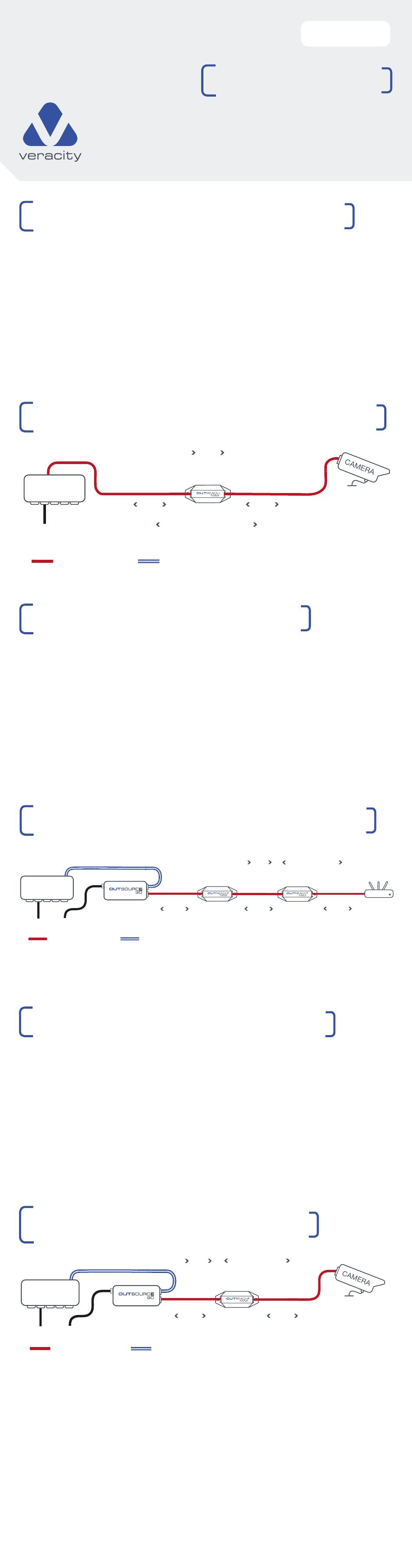

Veracity OUTREACH MAX VOR-ORM Quick Start Manual

EXTEND ETHERNET WITH POE TO 200M
| To extend Ethernet with POE,
use OUTREACH Max to connect
additional cable sections of up
to 100m.
| OUTREACH devices use standard
Cat 5e/6 type Ethernet cable and
RJ45 connectors, with auto detect
rate and crossover.
APPLICATION | EXTEND TO 200M WITH POE
POE NETWORK
SWITCH
POWER
ETHERNET WITH POE
INCREASING RANGE ABOVE 200M
| Multiple OUTREACH Max devices
may be used to create connections
longer than 200 metres, by joining
multiple cable sections of up to
100m each.
APPLICATION | EXTENSION BEYOND 200M
NETWORK DATA ONLY
NETWORK
SWITCH
POWER
ETHERNET WITH POE
INCREASE POWER WITH OUTSOURCE
| For all configurations shown,
OUTSOURCE POE injectors may
be connected after the network
switch for maximum POE power.
APPLICATION | USE OUTSOURCE FOR
MAXIMUM POWER
NETWORK DATA ONLY
NETWORK
SWITCH
POWER
ETHERNET WITH POE
This Device Complies with Part 15 of the
FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful
100M
NETWORK DATA WITH POE
ETHERNET DATA ONLY
VOR-OS-30
100M
ETHERNET DATA ONLY
VOR-OS-90
100M
ETHERNET DATA ONLY
QUICKSTART GUIDE
ETHERNET AND POE EXTENDER
OUT
| OUTREACH Max should ONLY
be connected to POE-compatible
equipment.
| OUTREACH Max is transparent
to POE and POE signatures, and
will power up when both the POE
source and powered device are
connected.
POE
VOR-ORM
100M
| For extension to non-POE
devices, the last OUTREACH
device in the chain should be an
OUTREACH Lite.
POE
VOR-ORM
100M
| OUTSOURCE 30 and OUTSOURCE
90 are IEEE-compliant (802.3at,
802.3bt) injectors specified for
maximum power delivery.
POE NETWORK DATA
VOR-ORM
interference in which case the user will be required to correct
the interference at their own expense.
Surge Protection
All Veracity products have been independently tested to verify
their resilience to the stringent immunity levels of international
standards.
Users should note that no electronic equipment can be guaranteed
to be completely protected at levels beyond the defined standard;
therefore product warranty cannot include damage to products
which has been caused by surges exceeding those of the
standards specified, for example lightning strike activity.
It is the user's responsibility to implement relevant surge
protection measures, as appropriate to the installation. This
may include the fitting of additional surge protection devices
where required.
VOR-ORM
REACH
MAX
NETWORK DATA
VOR-ORM
100M
IEEE 802.3BT DEVICE
100M
®
IP DEVICE
