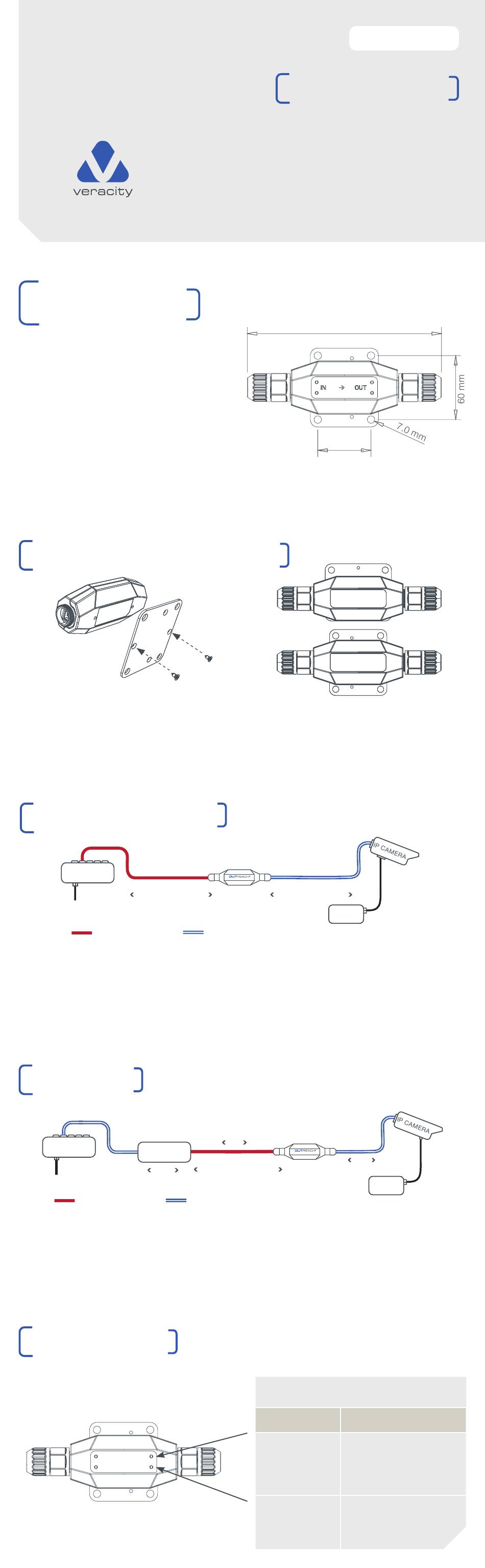

Veracity OUTREACH Lite GXT Quick Start Manual

DIMENSIONS AND
MOUNTING HOLES
| The mounting plate is 64mm x 74mm x 2mm.
The enclosure is 100mm x 50mm x 30mm.
WARNING | Exposure to strong direct sunlight
may heat the product beyond its operating
specification, shade where possible.
WARNING | Do not mount the product within
a second outdoor enclosure. Thermal insulation
combined with solar heating may result in
high internal temperatures.
FITTING THE MOUNTING PLATE
| Attach the product to the mounting plate
using the two screws supplied.
| The plate can be attached in two different
orientations to suit the installation.
EXTERNAL ETHERNET APPLICATION DIAGRAM
ETHERNET EXTENSION
POE NETWORK
SWITCH
POWER
POWER OVER ETHERNET
| To extend Gigabit Ethernet, use OUTREACH
Lite G XT to connect cable sections up to 100m.
| OUTREACH devices use standard Cat 5e/6
type Ethernet cable and RJ45 connectors,
with auto-detect rate and crossover.
EXTERNAL ETHERNET APPLICATION DIAGRAM
ADDING POE
NETWORK
SWITCH
POWER
POWER OVER ETHERNET
| Veracity's OUTSOURCE 30 POE
injector may be used to provide POE
when the network switch is non-POE.
LED INDICATORS
VOR-ORL-GXT
POE & NETWORK DATA
ETHERNET DATA ONLY
VOR-OS-30
OUT SOURCE SOURCE
GIGABIT NETWORK DATA
100M
ETHERNET DATA ONLY
QUICKSTART GUIDE
NB Ensure nothing can push on the connectors
and that the cables are supported and not in
tension. Mount the product horizontally
where possible.
LITE GXT
ETHERNET DATA ONLY
| OUTREACH Lite G XT is powered by POE
but does not forward POE. Therefore Lite
is used to extend Ethernet to non-POE or
locally powered devices.
VOR-ORL-GXT
POE
LITE G XT
OUTREACH LITE G XT
LED
RJ45 Green
Blink =
Flash =
On =
RJ45 Yellow
On =
Flash =
VOR-ORL-GXT
EXTERIOR GIGABIT EXTENDER
OUT
REACH
LITE G XT
182.4 mm
50 mm
POWER
SUPPLY
LOCAL POWER
DATA ONLY
100M
POWER
SUPPLY
LOCAL POWER
FUNCTION
Power / Speed
Power good
10/100Base-T
1000Base-T
Link / Activity
Link Established
Network Activity
®
