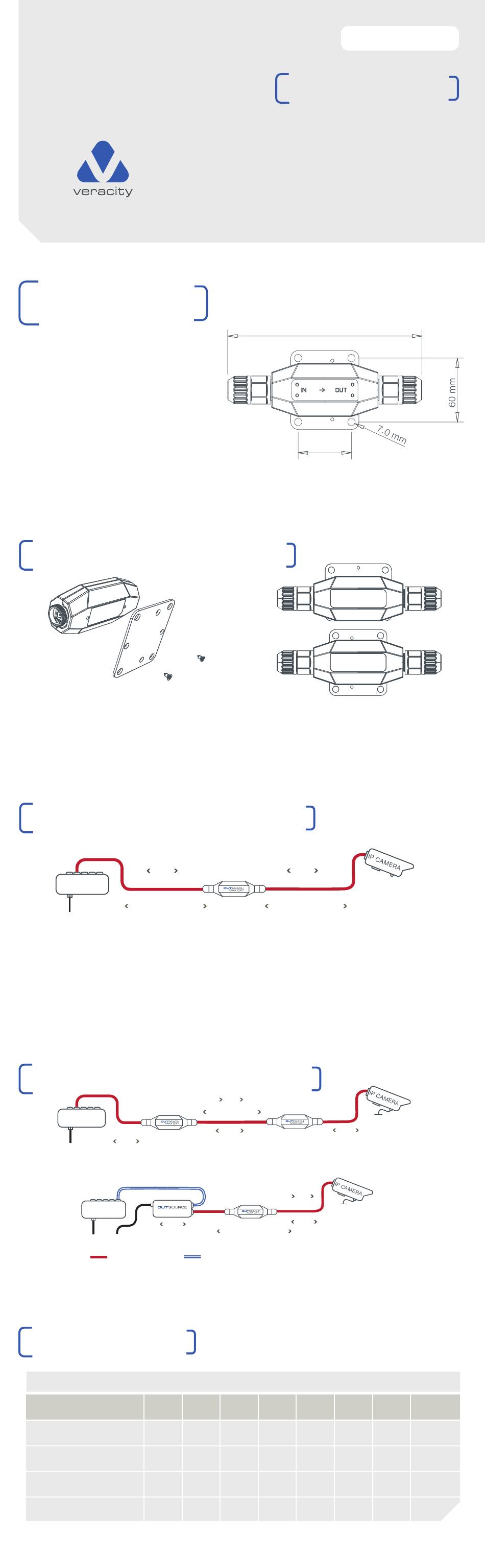

Veracity OUTREACH MAX G XT Quick Start Manual

DIMENSIONS AND
MOUNTING HOLES
| Mounting plate is 64mm x 74mm x 2mm.
Enclosure is 100mm x 50mm x 30mm.
WARNING | Exposure to strong direct
sunlight may heat the product beyond
its operating specification, shade where
possible.
WARNING | Do not mount the product within
a second outdoor enclosure. Thermal insulation
combined with solar heating may result in
high internal temperatures.
FITTING THE MOUNTING PLATE
| Attach the product to the mounting plate
using the two screws supplied.
| The plate can be attached in two different
orientations to suit the installation.
ETHERNET AND POE EXTENSION
POE NETWORK
SWITCH
POWER
| To extend Gigabit Ethernet with POE, use
OUTREACH Max G XT to connect cable
sections of up to 100 metres.
| OUTREACH devices use standard Cat 5e/6
type Ethernet cable and RJ45 connectors,
with auto-detect rate and crossover.
INCREASING RANGE AND POWER
POE NETWORK
SWITCH
POWER
| Two or more OUTREACH Max G XT devices may be used to create full-bandwidth connections
over 200m, by joining multiple cable sections of up to 100 metres each.
NETWORK
SWITCH
POWER
POWER OVER ETHERNET
| OUTSOURCE and OUTSOURCE Plus are 802.3af/at-compliant injectors and may be
connected to add or increase power for maximum power and range extension.
MAXIMUM RANGE
POE SOURCE
IEEE 802.3af switch
IEEE 802.3at switch
OUTSOURCE 30
OUTSOURCE 90
Ranges shown in italics can be higher using additional OUTREACH devices, but for ranges longer than 300m we recommend
the use of Veracity LONGSPAN devices instead.
VOR-ORM-GXT
100M
ETHERNET AND POE
VOR-ORM-GXT
NETWORK DATA
100M
NETWORK DATA ONLY
VOR-OS-30
30 30
100M
ETHERNET DATA ONLY
MAXIMUM RANGE FOR CAMERA POWER UP TO (WATTS)
4W 7W
300m 300m
300m 300m
300m 300m
300m 300m
QUICKSTART GUIDE
182.4 mm
50 mm
NB Ensure nothing can push on the
connectors and that the cables are supported
and not in tension. Mount the product
horizontally where possible.
100M
ETHERNET AND POE
| OUTREACH Max G XT should be connected
to POE-compatible equipment only.
POE
VOR-ORM-GXT
100M
VOR-ORM-GXT
POE
100M
GIGABIT NETWORK DATA
13W 25W 40W
200m n/a n/a
300m 300m n/a
n/a
300m 300m
300m
300m 300m
VOR-ORM-GXT
EXTERIOR GIGABIT POE EXTENDER
OUT
REACH
MAX G XT
100M
51W 62W 71W
n/a n/a n/a
n/a n/a n/a
n/a n/a n/a
250m 200m 200m
®
