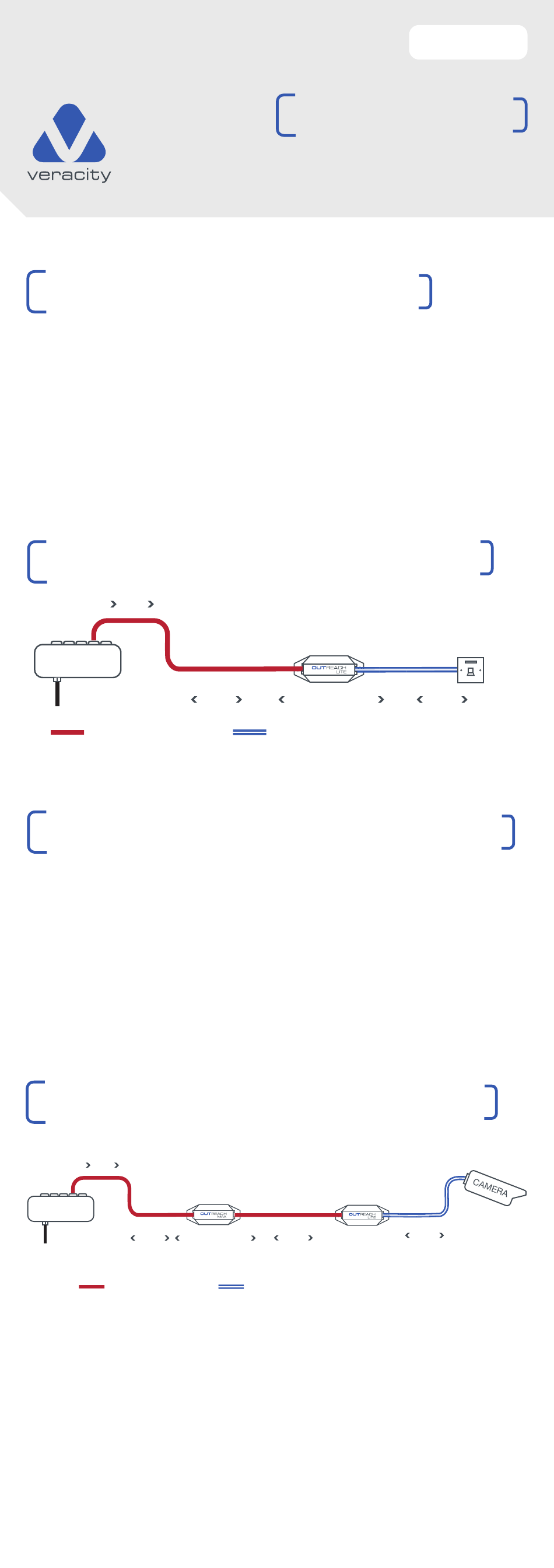

Veracity OUTREACH LITE VOR-ORL Quick Start Manual

EXTEND ETHERNET TO 200 METRES
| To extend Ethernet to a non-POE
device, use OUTREACH Lite to add
another 100m of network distance.
|
OUTREACH devices use standard
Cat 5e/6 type Ethernet cable
and RJ45 connectors, with auto
detect rate and crossover.

APPLICATION | EXTEND TO 200 METRES

POE
POE NETWORK
SWITCH
POWER
POWER OVER ETHERNET
INCREASING RANGE BEYOND 200 METRES
|
To increase range beyond 200
Metres use OUTREACH Max
extenders in conjunction with an
OUTREACH Lite at the end of
the chain.
APPLICATION
POE
POE NETWORK
SWITCH
POWER
POWER OVER ETHERNET
Surge Protection
All Veracity products have been independently
tested to verify their resilience to the stringent
immunity levels of international standards.
Users should note that no electronic equipment can
be guaranteed to be completely protected at levels
beyond the defined standard; therefore product
warranty cannot include damage to products which
100M
| EXTENSION BEYOND 200M
VOR-ORM
100M NETWORK DATA
QUICKSTART GUIDE
OUT
| OUTREACH Lite is powered by
POE but does not forward POE.
This allows network extension to
non-POE devices.
| OUTREACH Lite must be powered
by POE compatible equipment only.
VOR-ORL
NETWORK DATA
ETHERNET DATA ONLY
| For longer network extension to
distances beyond 300 Metres we
recommend use of the Veracity
LONGSPAN series of long range
point-to-point network adaptors.
VOR-ORL
100M
ETHERNET DATA ONLY
has been caused by surges exceeding those of
the standards specified, for example lightning
strike activity.
It is the user's responsibility to implement relevant
surge protection measures, as appropriate to the
installation. This may include the fitting of additional
surge protection devices where required.
VOR-ORL
ETHERNET EXTENDER
REACH
LITE
NETWORK OUTLET
100M
100M
®
