Controls
22769
34

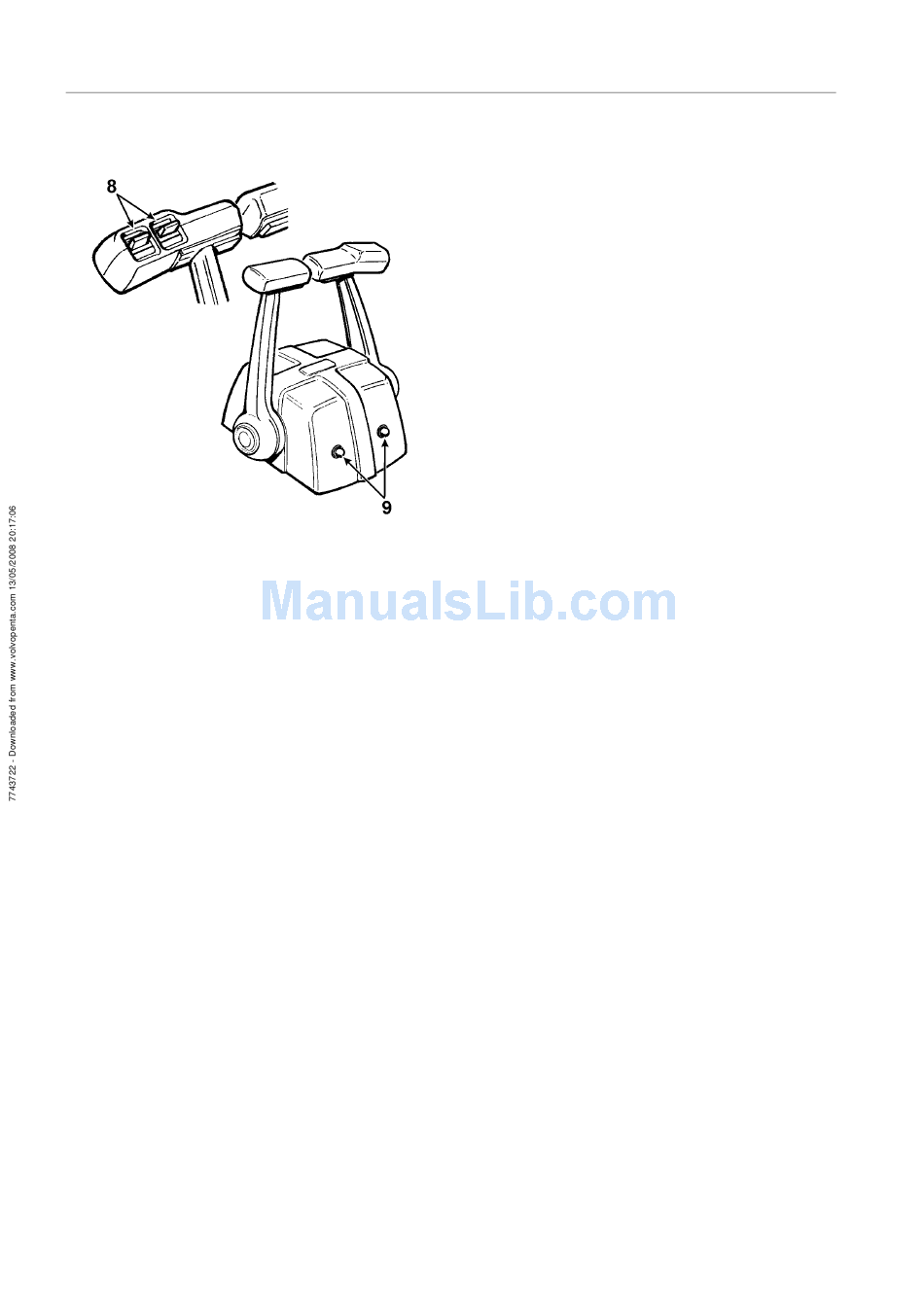

Control Lever with Catch Button (Dual)

There are two switches on the port control lever (8),
which gives you the capability of individual adjustment
of the drive trim.
•
Pressing the switches up moves the drive trim
out while raising the boat's bow.
•
Pressing the switches down moves the drive
trim in while lowering the boat's bow.
•
The catch buttons (9–optional) disconnect a
"catch" so that the drives can be trimmed into
the BEACH and LIFT positions.
VPA 7743722 English 10-2004
