Trim Controls

Trimming (raising and lowering the drive) can be per-
formed by using:
•

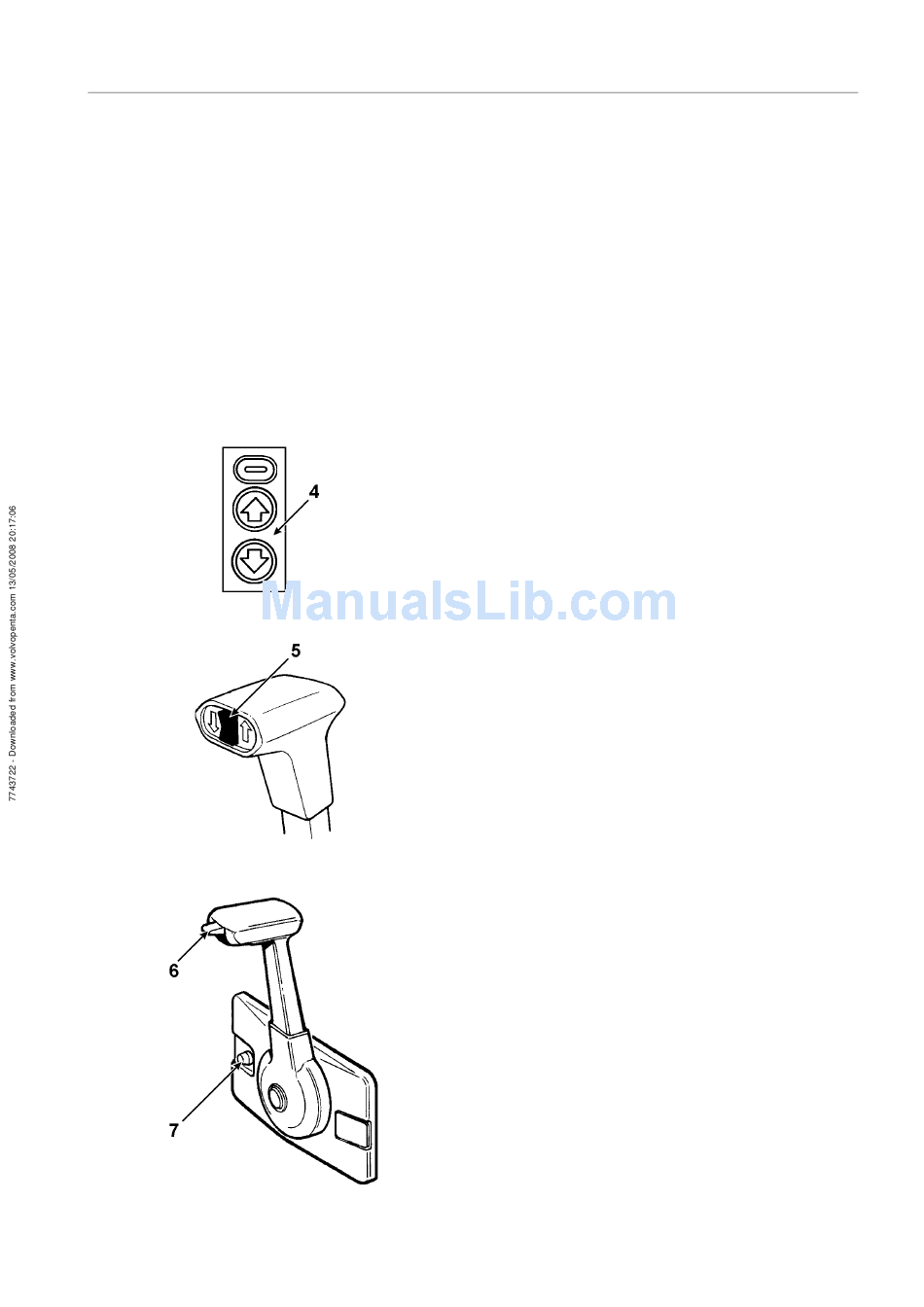

A separate control panel (4) on the instrument
panel.
•
A control button (5) on the remote control lever.
•
The control buttons on the port control lever in a
twin installation.
The current trim position is indicated on a trim gauge
located on the instrument panel or elsewhere on the
dashboard.

Operating Trim Controls

Control Panel

The control panel has two standard buttons for tilt con-
trol with a third (optional) button:
•
The center button moves the drive trim out while
raising the boat's bow.
•
The lower button moves the drive trim in while
lowering the boat's bow.
•
The top button (optional) disconnects a "catch"
so that the drive can be trimmed into the BEACH
and LIFT positions. (Press this button and the
center button at the same time.)

Remote Control Lever

The control button on the control lever has two func-
tions:
•
Pressing the top half of the button moves the
drive trim out while raising the boat's bow.
•
Pressing the bottom half of the button moves the
drive trim in while lowering the boat's bow.
You must press a separate switch on the instrument
panel to disconnect the "catch" (optional) so that the
drive can be trimmed into the BEACH and LIFT posi-
tions.

Control Lever with Catch Button (Single)

A switch on the control lever (6) allows you to trim the
drive as follows:
•
Pressing the switch up moves the drive trim out
while raising the boat's bow.
•
Pressing the switch down moves the drive trim in
while lowering the boat's bow.
•
The catch button (7–optional) disconnects a
"catch" so that the drive can be trimmed into the
BEACH and LIFT positions.
