Optional Digital Trim Instrument

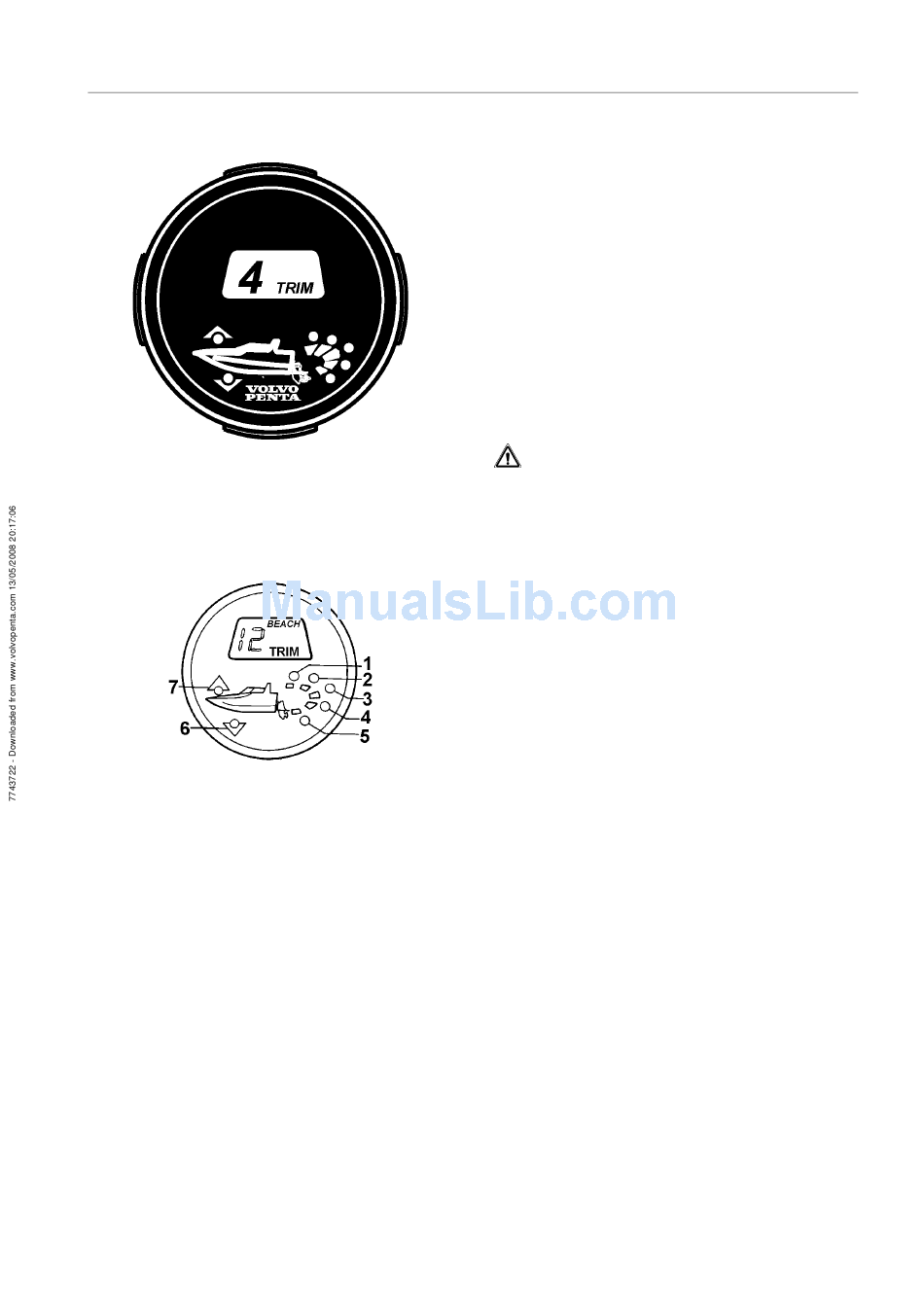

This instrument displays a figure (the angle of the
drive to a stationary boat) within a range.
•
Trim Range–Use trim range for maximum com-
fort, under normal operation, from start to maxi-
mum speed (maximum range up to 5).
•
Beach Range–Use beach range for operating at
idle speed in shallow water, where water depth
is uncertain. Also use this range when you
launch and take your boat out of water onto a
trailer ramp. Boat speed should always be low
(range from 5 to 40).
•
Lift Range–Flashing red warning light. Drive up
completely (range from 41 to 51).
CAUTION! Operating in beach range or lift
range will cause significant loss of maneu-
verability. Operating in beach range above
idle speed, or for prolonged periods of time,
may cause serious drive damage.

LED Display

Certain LEDs display at certain times for the digital
trim instrument:
1 Flashes red within the range above 41.
2 Constant red within the range of 6 to 40.
3 Constant green within the range of 2 to 5.
4 Constant green within the range of 0 to 2.
5 Constant green in trimmed range up to 0.
6 Constant yellow in maximum trimmed position
up to 0; flashes yellow when above 0 (drive
moves, bow is lowered).
7 Constant yellow light within range of 2 to 5;
flashes yellow when drive moves within trim
range and bow is raised.

Other Instruments

See your Volvo Penta dealer for additional accesso-
ries specifically designed for your Volvo Penta prod-
uct.
