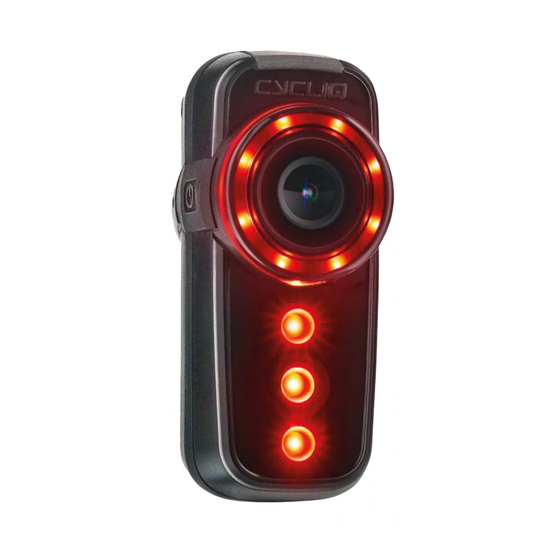

Rear cycle light with hd video camera
Hide thumbs Also See for Fly 6:

Advertisement

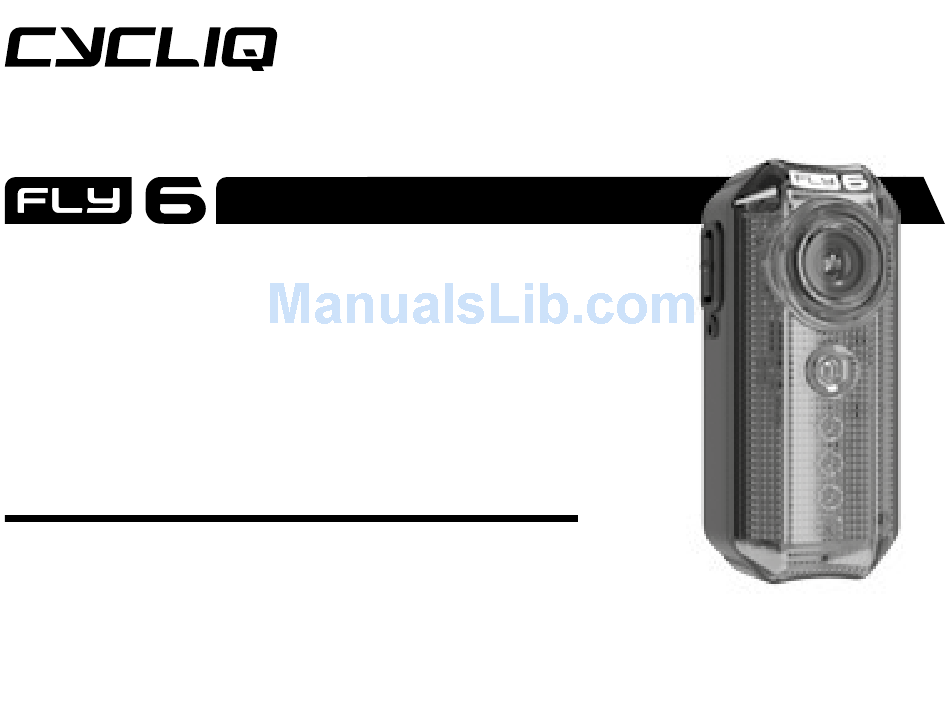

INSTRUCTION
MANUAL
REAR CYCLE LIGHT WITH
HD VIDEO CAMERA
WWW.CYCLIQ.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fly 6 and is the answer not in the manual?

Questions and answers

Summary of Contents for cycliq Fly 6

  • Page 1 INSTRUCTION MANUAL REAR CYCLE LIGHT WITH HD VIDEO CAMERA WWW.CYCLIQ.COM...
  • Page 2: Additional Features

    Using your footage Parts list Access footage Product Layout Viewing footage Technical Data Access footage Minimum Requirements Viewing footage Setting up your Fly6 Additional Features Charging the battery Looping Function Battery Level Indication Incident Protection Function Setting the date & time WWW.CYCLIQ.COM...
  • Page 3: Getting Started

    GETTING STARTED Congratulations on your purchase of Fly6, which captures 130 degrees of High Definition vision behind you during your ride. It also incorporates latest technology strobe and LED lighting to maintain high visibility during your ride.
  • Page 4: What's Included

    ∙ 2x Seat Post Mount ∙ 1x USB Cable ∙ 1x Quick Guide Manual Functions: ∙ 100° HD video recording ∙ Looping record to capture important footage ∙ Audio Recording ∙ Rechargeable Lithium Ion battery ∙ Strobe light ∙ LED lights WWW.CYCLIQ.COM...
  • Page 5: Read This First

    READ THIS FIRST...
  • Page 6: Disclaimer

    WWW.CYCLIQ.COM...
  • Page 7: Warning Against Copyright

    SAFETY, OPERATING AND CARE INFORMATION As safety and customer satisfaction are most important to us, there are a number of safety, operating and care points we would like to bring to your attention. For more information, please visit: www.cycliq.com WWW.CYCLIQ.COM...
  • Page 8 ∙ No liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling ∙ The device has a Lithium Ion battery. When disposing of this, it should be done in compliance with the rules and regulations appropriate to you WWW.CYCLIQ.COM...
  • Page 9: Parts List

    3 — Standard Alignment Spacer (x2) 4 — 5° Angled Alignment Spacer 5 — 10° Angled Alignment Spacer 6 — Aero Spacer 7 — Standard Straps (x4) 8 — Long Straps (x2) 9 — MicroSD card (installed in device) WWW.CYCLIQ.COM...
  • Page 10: Product Layout: Front

    PRODUCT LAYOUT - FRONT Camera Strobe Light LED 1 LED 2 LED 3 Charge Indicating Light WWW.CYCLIQ.COM...
  • Page 11: Product Layout

    PRODUCT LAYOUT - BACK Mounting Spine Speaker WWW.CYCLIQ.COM...
  • Page 12 PRODUCT LAYOUT - SIDE On/Off (Hold) Flashing Modes (Quick Press) WWW.CYCLIQ.COM...
  • Page 13 PRODUCT LAYOUT - SIDE Courtesy Dimmer MicroSD and Micro USB port WWW.CYCLIQ.COM...
  • Page 14: Technical Data

    Bicycle Rear HD Camera & tail light IP55 MODEL OPERATING TEMPERATURE/HUMIDITY Fly6 0 to 45 degrees RATING STORAGE TEMPERATURE/ HUMIDITY 230mA@4V (max) 32–113°F (0-45°C) POWER SOURCE WEIGHT Rechargeable Lithium Ion Battery approx. 4oz (113 grams) BATTERY SIZE 2600mAh (approx. 5 hours) WWW.CYCLIQ.COM...
  • Page 15: Minimum Requirements

    MINIMUM REQUIREMENTS PROCESSOR Pentium 4 or later, or equivalent OPERATING SYSTEM Windows (XP, Vista, 7, 8 or later), Macintosh (OS X v10.0 or later) 256MB USB INPUT 2.0 or later WWW.CYCLIQ.COM...
  • Page 16 SETTING UP YOUR FLY6...
  • Page 17: Charging The Battery

    The time to charge from flat to fully charged varies from 3 to 6 hours depending on method of charging i.e. mains power USB (not supplied) or computer USB. For maximum Battery life, fully discharge the Battery before re-charging. Battery life diminishes over time. WWW.CYCLIQ.COM...
  • Page 18: Battery Level Indication

    This indicates your camera has turned off, however the 3 Long Beeps: flashing of the tail light will continue for a further 1.5 hrs (approx.) so as to keep Under 5% Charged you visible for the remainder of your journey. 3 Long Beeps: Under 5% Charged WWW.CYCLIQ.COM...
  • Page 19: Setting The Date & Time

    ∙ Modify date to suit the following format; Sep 24 2014 12:56:00 ∙ Save the file ∙ Safely remove your Fly6 from your computer ∙ Turn on to have the settings take effect NOTE Should you need to adjust Date/Time settings again, download a new CONFIG.TXT file from www.cycliq.com WWW.CYCLIQ.COM...
  • Page 20: Mounting Fly6 To Bicycle

    3 — Peel off backing from adhesive tape to affix selected spacer to seat post mount 4 — Attach provided straps to seat post mount 5 — Hold unit onto seat post (stem) and wrap straps around to fasten WWW.CYCLIQ.COM...
  • Page 21 3 — Peel off backing from adhesive tape to affix selected spacer to seat post mount 4 — Attach provided straps to seat post mount 5 — Fit aero spacer onto seat post 6 — Hold unit onto seat post (stem) and wrap straps around to fasten WWW.CYCLIQ.COM...
  • Page 22 USING YOUR FLY6...
  • Page 23: Turn On The Fly

    ∙ Power level ‘beeps’ signal remaining battery SWITCH OFF THE FLY6 ∙ Press and hold Power Button until lights turn off ∙ Power level ‘beeps’ signal remaining battery NOTE Before operating, ensure the USB cover is firmly depressed & seated fully WWW.CYCLIQ.COM...
  • Page 24: Flash Sequences

    Rotating bezel lights are always on when the camera is recording. To maximise battery life select a dimmer flashing illumination and turn off your Fly6 when not in use. Your light settings will be remembered when the device is turned OFF/ON WWW.CYCLIQ.COM...
  • Page 25: Using Your Footage

    USING YOUR FOOTAGE...
  • Page 26: Access Footage

    Footage is saved in chronological order in 10 minute (around 800mb) files sizes in .AVI format VIEWING FOOTAGE ∙ Select the file you want to view and play the .AVI file via your preferred video viewing software. ∙ Cycliq recommend using VLC Media Player (www.videolan.org) WWW.CYCLIQ.COM...
  • Page 27 EDITING FOOTAGE ∙ Cycliq recommend editing your footage with VideoPAD (www.nchsoftware.com/videopad/index.html) CONVERTING FOOTAGE ∙ Cyclic recommend converting your footage with the free Smart Converter (www.shedworx.com/smartconverter) WWW.CYCLIQ.COM...
  • Page 28 ADDITIONAL FEATURES...
  • Page 29: Looping Function

    (up to 32Gb is compatible - this should give you up to 8 hours of recording capacity before the looping function kicks in). Alternatively you can remove the microSD card when the capacity is reached and replace with a new microSD card. WWW.CYCLIQ.COM...
  • Page 30: Incident Protection Function

    ∙ Turn off, then turn on your device and use normally; or ∙ When the 3 long beeps sound (indicating your device is shutting down) you should turn your device back on and use normally WWW.CYCLIQ.COM...
  • Page 31 PO Box 130, Leederville, T: +61 418 937 888 WA 6903, Australia E: info@cycliq.com WWW.CYCLIQ.COM...
