- Page 1 QUICK START GUIDE...
-
Page 3: What's In The Box
WHAT’S IN THE BOX Fly6 microUSB MicroSD Seat post unit cable mount Standard Longer 0 degree 5 degree Strap x 4 Strap x 2 spacer x 2 spacer 10 degree Aero post Quick start SD card spacer spacer guide adapter... -
Page 4: Features And Functions

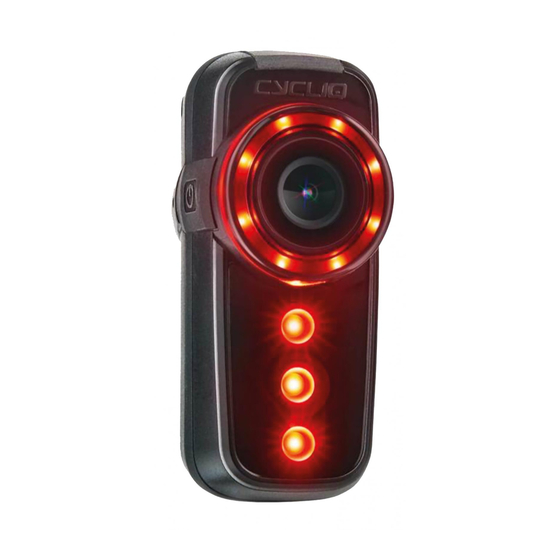

FEATURES & FUNCTIONS Courtesy dimmer Power button HD camera LED strobe light microUSB port LED lights MicroSD slot Charging light The MicroSD card has already been installed... -
Page 5: Connect And Charge
CONNECT & CHARGE With the supplied USB cable connect your Fly6 to a PC or Mac. The bottom LED will light until charged. Your Fly6 will now be visible on your computer... -
Page 6: Setting Time And Date
SETTING TIME & DATE Keeping your Fly6 connected select the icon on your computer desktop Open the new directory called “Fly6” in your file explorer Using the application ‘Textedit’ on Mac or ‘Notepad’ on Windows, open “ CONFIG.TXT” Modify from a ‘0‘ to a ‘1’ in the 1st row Modify date to suit the following 24 hour format;... - Page 7 ATTACHING FLY6 TO YOUR BIKE Click Seat Post Mount Slide seat post mount onto your Fly6, you should hear a click Use provided spacers to ensure Fly6 is at 90º to the ground Hold Fly6 against seat post to check unit orientation Now attach straps to seat post mount hooks...
- Page 8 ATTACHING FLY6 TO YOUR BIKE Hold against seat post and wrap straps around post affixing straps to hooks Ensure unit is securely fixed avoiding any excessive movement or tilt...
- Page 9 OPERATING YOUR FLY6 Important: Before operating, ensure the USB cover is firmly depressed and seated Power button - Turn On/Off (depress for 1 second) - Toggle through flashing sequences (depress briefly) Courtesy dimmer Use this button to cycle through dimming modes Fly6 will remember your last settings...
- Page 10 OPERATING YOUR FLY6 Incident Capture Mode If device is tilted more than 30º from horizontal for 5 seconds, incident capture mode will activate and 3 quick beeps will sound. Fly6 will continue to record for 1 hour and then turn off (with 3 loud beeps) Using your Fly6 video files To view your footage use VLC Media Player...
- Page 11 3 long beeps will sound, audio and video function will turn off, and light will continue to operate with remaining power (approx. 1.5 hours) 3 Beeps For additional instructions, visit www.cycliq.com to Under 5% Charged download a complete instruction manual...
- Page 12 SPECS AND REFERENCES Video: 1280 x 720 Frame rate: 30fps Video format: .AVI Video compression format: H.264 File size: 10 minutes (~400-900MB) Battery Life: Up to 6 hrs Max Lumens: Up to 30 Max supported memory card: 32GB Recommended MicroSD card: Class 10 Weight: 4 oz (113g)
-
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Powering Idle mode prevents battery from depleting if you have down forgotten to turn off your Fly6 and it remains stationary for 15 minutes by turning off Incident capture mode will engage if the bike with a Fly6 Records is leaned over more than 30 degrees from horizontal for only... - Page 14 Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio or TV technician for help. Cycliq, PO Box 130, Leederville, Western Australia, 6903...
- Page 15 www.cycliq.com...
