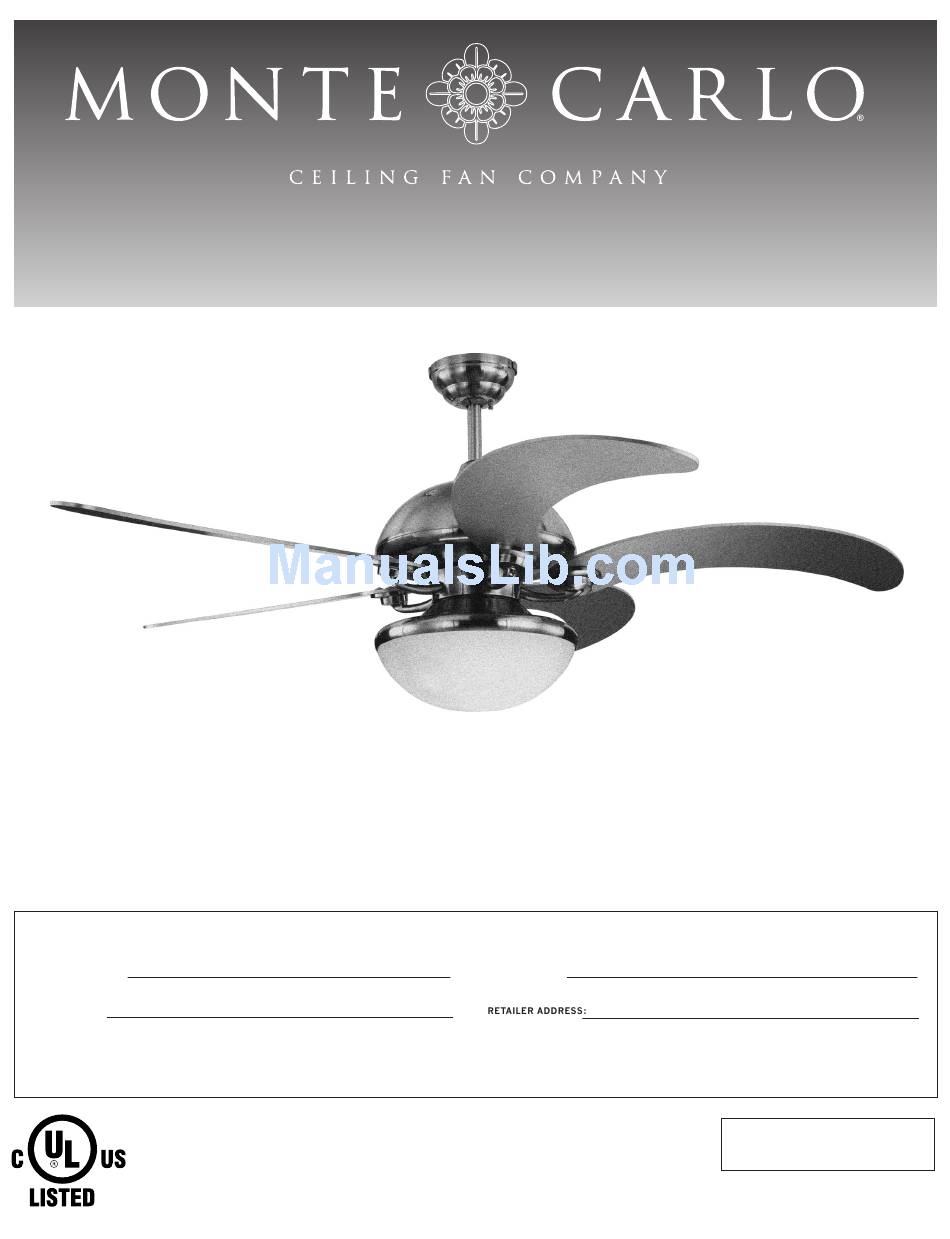

Owner's Guide and Installation Manual
5CNR52XXD-L Series Fan
UL Model No. : 5CNR52
Attach sales receipt to this card and retain as your proof of purchase
RETAILER NAME:
DATE OF PURCHASE:
MODEL NUMBER:
To register your fixture, please visit our website www.montecarlofans.com
11.5 kgs
25.3 lbs
Total fan weight with light kit
Advertisement
Related Manuals for Monte Carlo Fan Company 5CNR52
Summary of Contents for Monte Carlo Fan Company 5CNR52
- Page 1 Owner’s Guide and Installation Manual 5CNR52XXD-L Series Fan UL Model No. : 5CNR52 Attach sales receipt to this card and retain as your proof of purchase RETAILER NAME: DATE OF PURCHASE: MODEL NUMBER: To register your fixture, please visit our website www.montecarlofans.com 11.5 kgs...
- Page 2 All set screws must be checked and tightened where necessary before installation. Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses, Stepladder and Wire Strippers. Customer Service 800-969-3347 Customer Service Center 7400 Linder Ave. Skokie, IL 60077 www.montecarlofans.com © 2011 Monte Carlo Fan Company 1/16/2012...
- Page 3 Align the hole in the Downrod with the hole in once the downrod is in place. Body. the Yoke. Insert the Pin through the Yoke and Downrod until the point appears on the other side. Install the Keeper Pin © 2011 Monte Carlo Fan Company 1/16/2012...
- Page 4 The canopy should adjust for side of the outlet box and ungrounded conductor on the any irregularity in the ceiling or Outlet box. other side of the outlet box. © 2011 Monte Carlo Fan Company 1/16/2012...
- Page 5 Turn the fan clockwise to lock ward. in position. Install the other two screws and tighten securely. © 2011 Monte Carlo Fan Company 1/16/2012...
- Page 6 Attach cover of remote by placing over 4 ing over buttons and snap the battery cover in pins and snaping into place. place. Attach front cover to wall control with screws provided. Snap battery cover in place. © 2011 Monte Carlo Fan Company 1/16/2012...
-
Page 7: Fan Speed
The light will cycle from bright to dim to bright until button is released. Light will maintain last setting if turned off. FORWARD/REVERSE Depress rev button allow a few seconds for remote to change rotation direction with fan running. © 2011 Monte Carlo Fan Company 1/16/2012... - Page 8 Trouble Shooting Blade Arms If fan makes noise check to make sure the screws that attach blade holders to motor are tight. If fan wobbles check that all blade holders are tighened securely to the motor. © 2011 Monte Carlo Fan Company 1/16/2012...
-
Page 9: Troubleshooting
(Fuse is inside the canopy on the blue wire to remote receiver, push and twist the cap to open the fuse case) Push and twist to reassemble fuse. Risk of fire. Replace fuse only with 3 amp, 125 volt fuse. © 2011 Monte Carlo Fan Company 1/16/2012... - Page 10 Jan.2012 New format May.2013 Update for CUL regulation...
