1. Overview
1. Control Board
2. Channel Fuse
3. Channel Output
4. Power Cable
5. DMX Out
6. DMX In
DM X O UT
3
Control this unit via these function buttons.
F6.3A 250V 5x20mm
1.5 A/CH., Total 6 A max.(CE)
Connect to an appropriate power outlet.
This connector sends DMX signal.
This connector receives DMX signal.
2

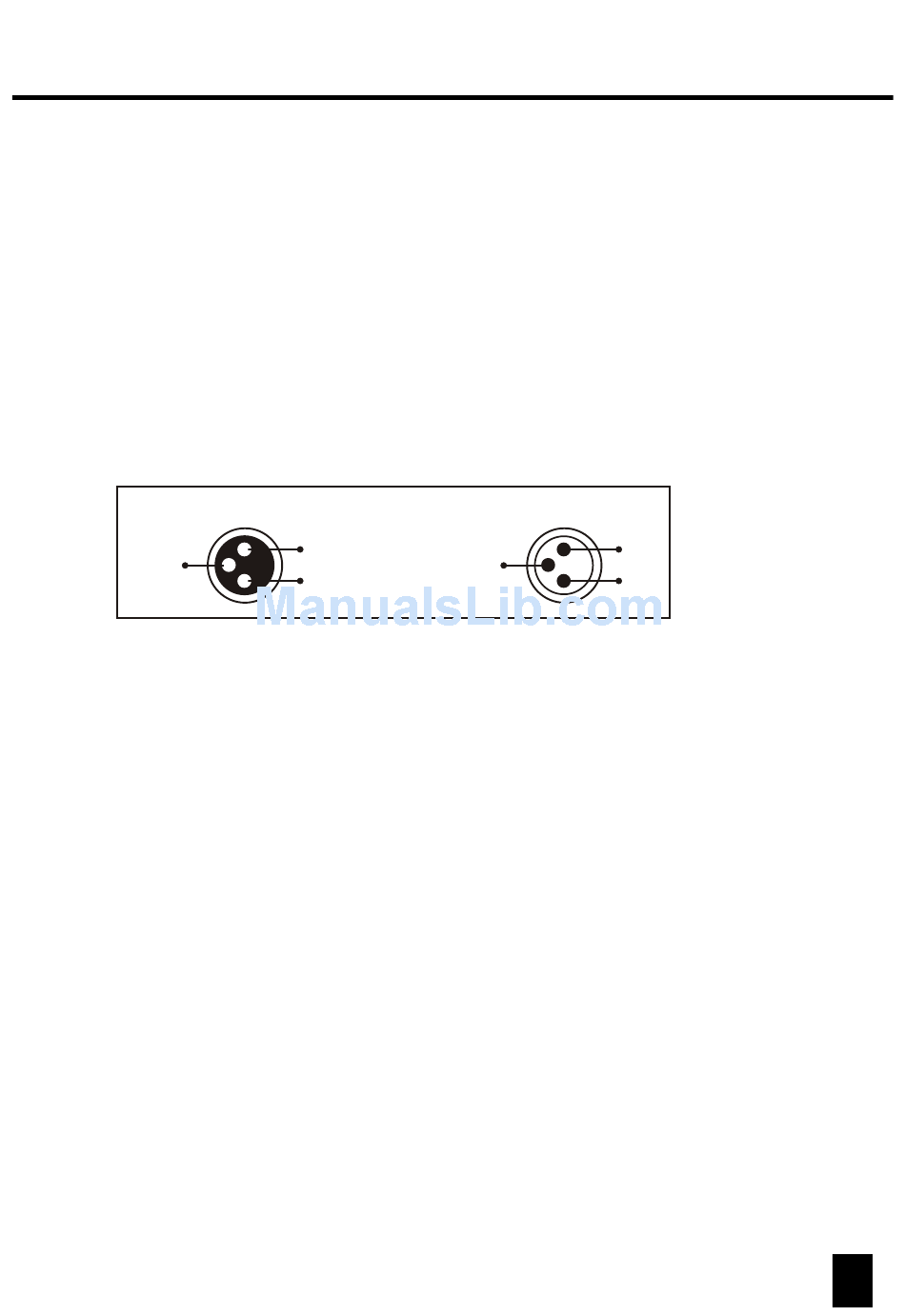

1 = Gr ound
2= Dat a-
3= Data+
1
DM X I N
1
3
2
