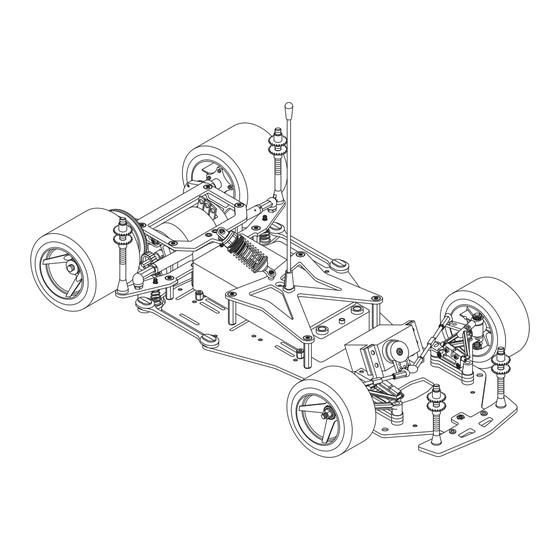

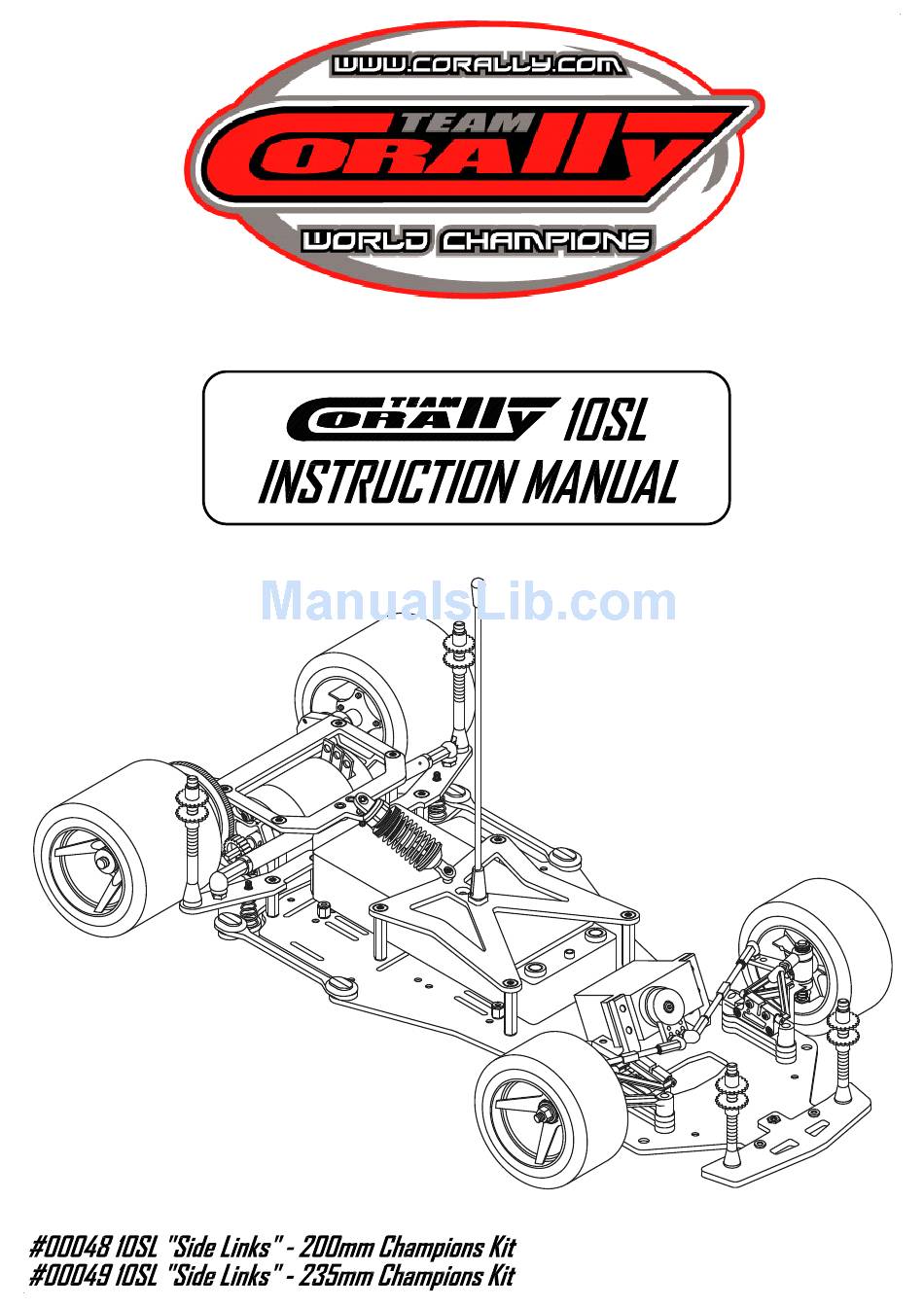

Summary of Contents for Corally 10SL
-
Page 16: Radio Installation
Motor installation and gear meshing. Bolt your chosen motor in place as shown and fit the appropriate pinion gear to the shaft of the motor. The 10SL is designed for use with long boss pinions which are available from Corally in a wide variety of sizes in 48 dp and 64 dp. Use a 1.5 mm setscrew driver and ensure that you tighten the 3 mm set screw onto the flat on the motor shaft. - Page 17 Periodically check that the movement of these dampers is even and smooth in all directions. To change the damper action (stiffness) the damper syrup has to be replaced by another type. Corally offers 3 different grades as following: #80000 – Damper Syrup, Soft #80001 –...
- Page 18 Ball pivot servicing. The 10SL utilises simple, but highly effective ball pivots on the Side Links and Base Pivot. It is important that the movement of these pivots is free and smooth. To service the ball pivots simply remove the large rubber O-ring and the Side Links or Base Pivot Plate can be lift away. The plastic socket can then be removed in two pieces.
- Page 19 The more steering you need, the more additive you use on your front tires. * Repeated use of the same set of tires with additive can make them very soft. These tires can easily be damaged, they wear more quickly and have higher rolling resistance.
- Page 22 DRIVER DATE EVENT TRACK TRACK SETUP #00048: #00049: SPRINGS .020 .022 .024 FRONT STEERING SYRUP (Soft) (Med.) (Hard) UPPER ARM MOUNT UPPER ARM MOUNT (0˚) (0˚) (5˚) (5˚) (10˚) (10˚) (FRONT) (REAR) CASTER CAMBER SERVO POSITION (CENTRE) (2-Pivot) UPSTOP DOWNSTOP TRACK RODS (4,0 mm) (5,0 mm)
