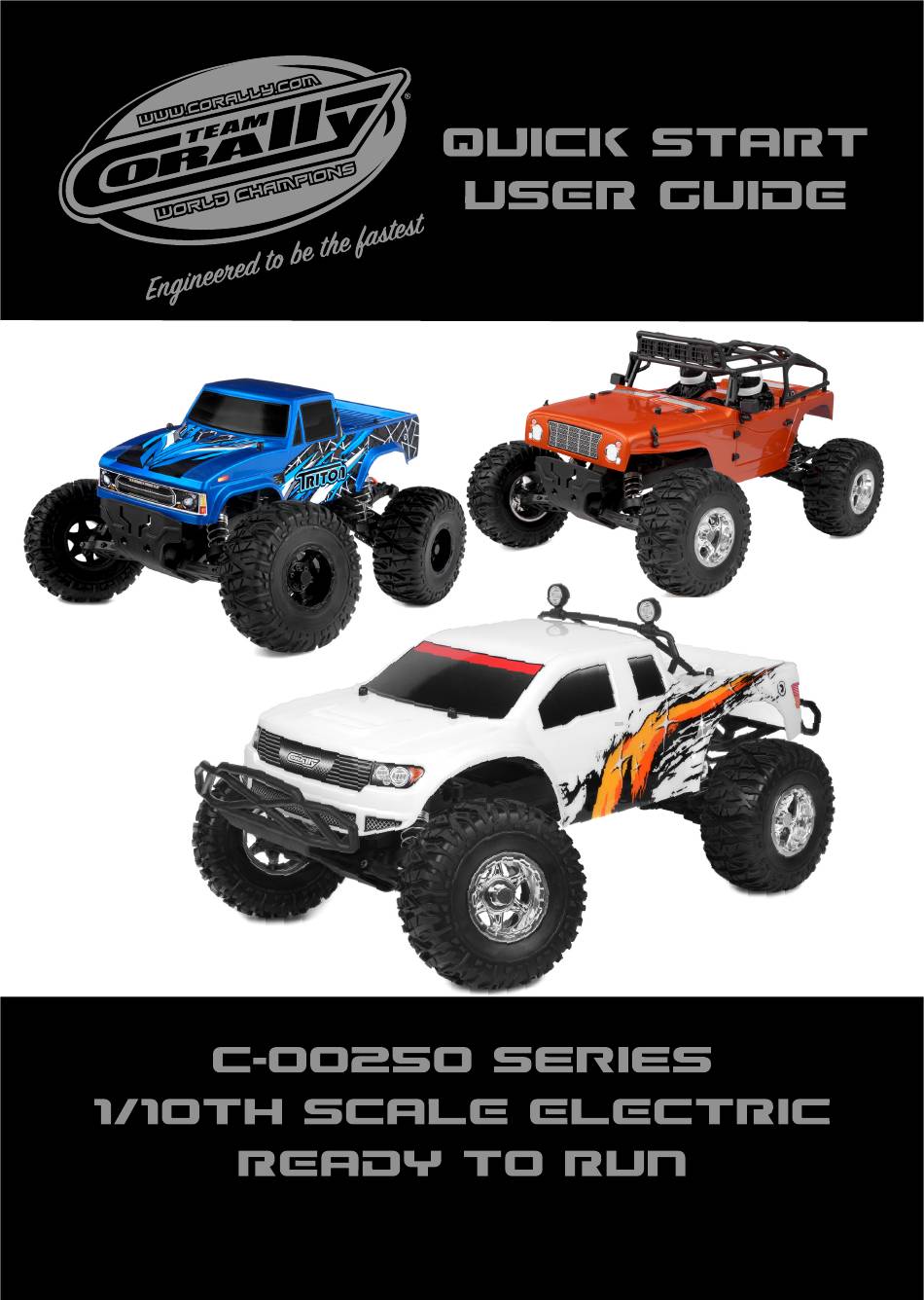

- Page 1 C-00250>C-00257_manual-V2...
-
Page 2: Read First
Team Corally. Always take the time to read the instructions carefully in order to follow all the procedures to use your RC model safely for you and for other people and property in the area. -
Page 3: Use Precautions
Always take all necessary precautions when handling products (silicone oil, grease, thread lock, cyanolyte glue, fuel) for the operation of the model. (Refer to the manufacturer’s instructions) For your safety, to keep the warranty and obtain the best performance, always use original CORALLY genuine parts. Contains: LEAD (CAS 7439-92-1) ANTIMONY (CAS 7440-36-0) WARNING: This product contains a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. -
Page 4: Warranty
He must send the defective goods to our local rep- resentatives or directly to Team Corally / JSP Group Intl bvba, Geelseweg 80, 2250 Olen, Belgium at his own risk and cost. - Page 5 LIPO BATTERY SAFETY PRECAUTIONS • Follow and respect the manufacturer’s instructions for use • It is important to check that your ESC is set to LIPO if you are using a LIPO battery. Failure to comply with this instruc- tion will result in increased battery discharge and may cause fire and damage to persons and property. •...
-
Page 6: Car Components
CAR COMPONENTS Front Suspension Arm C-Hub Wheel Hex Adapter Steering Knuckle Steering Link Steering Servo Speed Controller (ESC) Battery compartment Receiver Box Power Switch Rear Shock Absorber Wheel Hub Rear Upright Rear Suspension Arm Brushless Motor Spur Gear & Slipper... - Page 7 QUICK START GUIDE READ THE INSTRUCTIONS CHARGE THE BATTERY INSTALL 4x AA BATTERY CHARGER BATTERY MAKE SURE THAT ALL SCREWS AND NUTS ARE INSTALL THE BATTERY TURN ON THE TRANSMITTER (Always First) TIGHTENED PROPERLY. CONNECT THE BATTERY TO THE ESC CHECK THE FUNCTIONS CHECK THE RADIO SYSTEM RANGE SWITCH ON THE ESC...
-
Page 8: Maintenance
MAINTENANCE SLIPPER PAD REPLACEMENT It may be necessary to replace the slipper pad every 25 runs. It depends on how you drive and the type of terrain you drive on. If after consecutive adjustments you have motor problems, it is necessary to change the PADS. Remove the cover Loosen the Nylstop nut. - Page 9 MAINTENANCE DIFFERENTIAL MAINTENANCE It may be necessary to replace the silicone oil every 50 runs. https://corally.com/Chemicals/Silicone-Oils/ It depends on how you drive and the type of terrain you drive on. Remove the gearbox from the chassis. Open the differential. Remove the silicone oil.
-
Page 10: Exploded View
EXPLODED VIEW... - Page 11 EXPLODED VIEW C-3611-2-05-10-04 C-3611-4-10-15-04 Ball Bearing - Abec 3 Ball Bearing - Abec 3 5x10x4mm - 2 pcs 10x15x4mm - 2 pcs...
-
Page 12: Spare Parts
SPARE PARTS C-00250-001 C-00250-002 C-00250-004 C-00250-005 C-00250-006 Chassis - 2WD - Long Wheel- Chassis Covers - Composite Chassis - 2WD - Short Wheel- Battery Brace Screw - 2 pcs Battery Brace - 2S/3S - base - Composite base - Composite Composite - 1 Set C-00250-007 C-00250-008... - Page 13 SPARE PARTS C-00250-059 C-00250-060 C-00250-061 C-00250-062 C-00250-063 Motor Guard - Rear - Composite Gear Cover - Composite Motor Mount Plate - Aluminium Input Shaft - Slipper Shaft - Drive Gear 13T - Metal Steel C-00250-065 C-00250-066 C-00250-068 C-00250-069 C-00250-070 Idler Gear 19T - Metal Stub Axle Pin - for input shaft Hub - Rear - Composite - 2 Pcs Wheel Shaft - Rear - Steel -...
-
Page 14: Declaration Of Conformity
NOTE DECLARATION OF CONFORMITY EU-Konformitätserklärung/ Déclaration de Conformité UE (in accordance with ISO/IEC 17050-1) / (in Übereinstimmung mit ISO/IEC 17050-1) / (Conformément à la norme ISO/IEC 17050-1) Description : 1/10 Monter Truck 2WD - RTR Item Number: C-00250, C-00251, C-00252, C-00253, C-00254, C-00255, C-00256, C-00257 This declaration is issued under the sole responsibility of the manufacturer. - Page 15 Team Corally / JSP Group Intl bvba is not responsible for product changes. The products of dangerous nature show in this manual are submissive to special handling and storage specifications.
- Page 16 WWW.CORALLY.COM Team Corally is a registered trademark licensed to JSP Group Intl bvba Geelseweg 80 B-2250 OLEN Belgium • • • Tel: +32 14 25 92 94 info@corally.com •...
