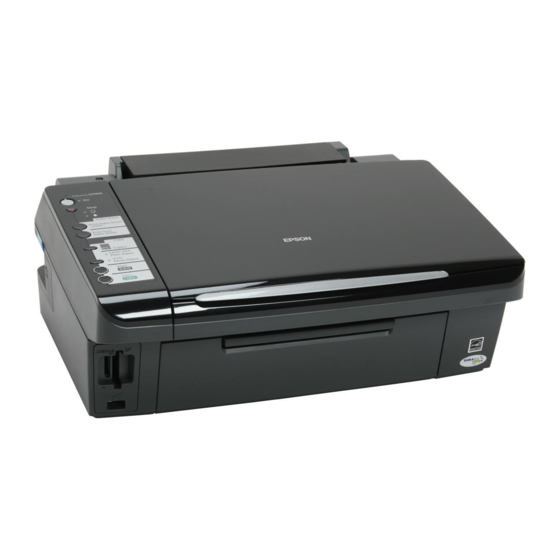

Epson Stylus CX7300 Instruction Manual

All in one printer epson stylus cx7300
Hide thumbs Also See for Stylus CX7300:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual See also: Basic Operation Manual, Service Manual
You are welcomed to use continue Ink Supply System which will greatly reduce your cost. And
it is the ideal products suiting for Color Inkjet Printer. Pls Please look over the instruction
carefully before using it, which will make you use this system easily, safely and stably.

1. General Guide

1、Components
a、CIS System
1set
d、Standby Refill Kit
2、Opening box inspection
a、Check whether all the accessories are ready before installing.
b、Check whether there's the leakage of the CISS, whether some tubes have been separated from the CISS
2. Printer Testing
1) Check whether the printer is in normal condition, like mechanical status, lubrication status etc.
2) Print testing lines to ensure the printing head is good condition.
3) Print pictures to see whether the printing image is good or not..
Please use this CIS System easily, it will not reduce or raise the accurateness of the printer. If the testing result is
abnormal, please consult the local dealer for this products.

3. Installation Procedures

Step 1: Preparation
Put the CISS on the right side of the printer. Pull out the small rubber plug from the
and place all the tubes at correct position.
Step 2: Take out the original cartridges
Instruction for EPSON CX7300
b、Air Filters
6pcs
e、Instruction CD 1pc
air hole as picture shown above.
6pcs
c、Support Arm
1set
Place 6pcs of air filters into air holes,

Advertisement

loading

Related Manuals for Epson Stylus CX7300

Summary of Contents for Epson Stylus CX7300

  • Page 1: General Guide

    Instruction for EPSON CX7300 You are welcomed to use continue Ink Supply System which will greatly reduce your cost. And it is the ideal products suiting for Color Inkjet Printer. Pls Please look over the instruction carefully before using it, which will make you use this system easily, safely and stably.
  • Page 2 Press the ink-changing button Carriage move out Pull out the power line of the printer and move the carriage to the right side. Step 3: Remove the cartridge cover Open the cartridge cover Take out the original cartridges prize the cover lightly along with the gap with screwdriver Take one side first.
  • Page 3 Put in the special cartridge of CISS according to A sound Da will heard when the clip locks the cartridge completely the color mark and lock the cartridge. Step 5: Fix the Support Arm and Tube line Fit the support arm like the picture shown Fix the balance arm on the support arm.

  • Page 4: Chip Reset

    Too long Twist Perfect Step 7: Connect the power cord. Turn on the power and check whether the printer can work well. Step 9: Check the nozzle Nozzle is ok Print test lines. If it is OK, then you can begin using. Broken Lines If there is broken lines, then pls clean the printer head.
  • Page 5 If ink-lacking light of the printer is flashing, it is aimed to remand you to change the cartridges. Press ink-changing button Carriage move out Take out cartridges Press the ink-changing button again, then you will find the cartridges are full of ink. And you can print again. Another reset method is: turn down the printer for one minute and then turn it on.
  • Page 6 2. Try to keep at least 1/2 inch of ink in the bottles. 3. Don’t place the Reservoir Bottles too much higher or lower than the printer. 4. Suggested using in a dry place between 15 and 35 degree. Avoid exposure to direct sunlight. 5.
