Mazda CX-9 2007 Installation Instructions Manual

Advanced keyless entry system
Hide thumbs Also See for CX-9 2007:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Quick Tips
PART NUMBER:
0000-8F-N03
NOTE: NOT COMPATIBLE WITH REMOTE START SYSTEM,
PART# 0000-8F-N02
CONTROL MODULE
0000-8F-D11A
SECURITY L.E.D.
0000-8F-D19
LONG WIRE TIE
(QTY 3)
EMERGENCY OVERRIDE BUTTON
0000-8F-Z03
SHOCK SENSOR
HARNESS
0

TOOLS REQUIRED

SAFETY GLASSES
FIBER STICK
#2 PHILLIPS SCREWDRIVER
SMALL FLAT TIP SCREWDRIVER
1/4" DRIVE RATCHET
1/4" DRIVE 10 MM SOCKET
1/4" DRIVE TORQUE WRENCH
PLIERS
WIRE CUTTERS
CENTER PUNCH
POWER DRILL
9/32" DRILL BIT
UTILITY KNIFE
GENUINE ACCESSORIES
INSTALLATION INSTRUCTIONS

SECURITY SYSTEM

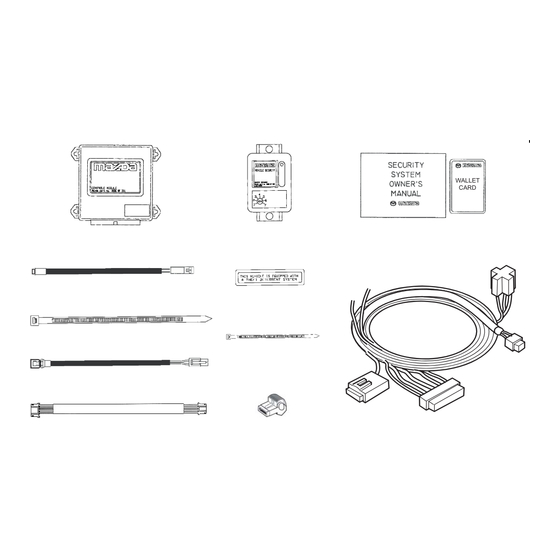

KIT CONTENTS

SHOCK SENSOR
WINDOW DECAL (QTY 2)
0
VEHICLE PREPARATION
1. CLEAN HANDS
2. OPEN DRIVER'S DOOR WINDOW
3. RECORD RADIO STATION PRESETS
4. SET PARKING BRAKE
5. SLIDE DRIVER SEAT TO REAR MOST POSITION
6. VEHICLE MUST BE AT ROOM TEMPERATURE
0000-8F-D15
0000-8F-D16
SHORT WIRE TIE
(QTY 10)
IDC WIRE TAP
(QTY 6)
1
APPLICABLE MODELS:
2007>MAZDA CX-9
WITHOUT ADVANCED

KEYLESS ENTRY SYSTEM

WALLET
CARD
OWNER'S MANUAL & WALLET CARD
(QTY 1)
WIRE HARNESS
0000-8F-N19
1031989 Rev. A 5/07
