PART NUMBER:
0000-8F-D10
CONTROL MODULE
0000-8F-D11A
SECURITY L.E.D.
0000-8F-D19
LONG WIRE TIE
(QTY 2)
EMERGENCY OVERRIDE BUTTON
0000-8F-Z03
SHOCK SENSOR
HARNESS
0

TOOLS REQUIRED

SAFETY GLASSES
FIBER STICK
#2 PHILLIPS SCREWDRIVER
10 mm NUT DRIVER
PLIERS
SIDE CUTTERS
CENTER PUNCH
DRILL MOTOR
9/32" DRILL BITS
GENUINE ACCESSORIES
INSTALLATION INSTRUCTIONS

SECURITY SYSTEM

KIT CONTENTS

SHOCK SENSOR
WINDOW DECAL (QTY 2)
0
VEHICLE PREPARATION
1. CLEAN HANDS
2. OPEN DRIVER'S DOOR WINDOW
3. RECORD RADIO STATION PRESETS
4. SET PARKING BRAKE
5. DISCONNECT AND ISOLATE NEGATIVE BATTERY TERMINAL
6. VEHICLE MUST BE AT ROOM TEMPERATURE
0000-8F-D15
0000-8F-D16
SHORT WIRE TIE
(QTY 5)
IDC WIRE TAP
(QTY 3)
1
APPLICABLE MODELS:
2006 > MX-5
ALL MODELS
WALLET
CARD
OWNER'S MANUAL & WALLET CARD
(QTY 1)
WIRE HARNESS
0000-8F-D18
1031733 Rev. A 05/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mazda MX-5

Summary of Contents for Mazda MX-5

  • Page 1: Security System

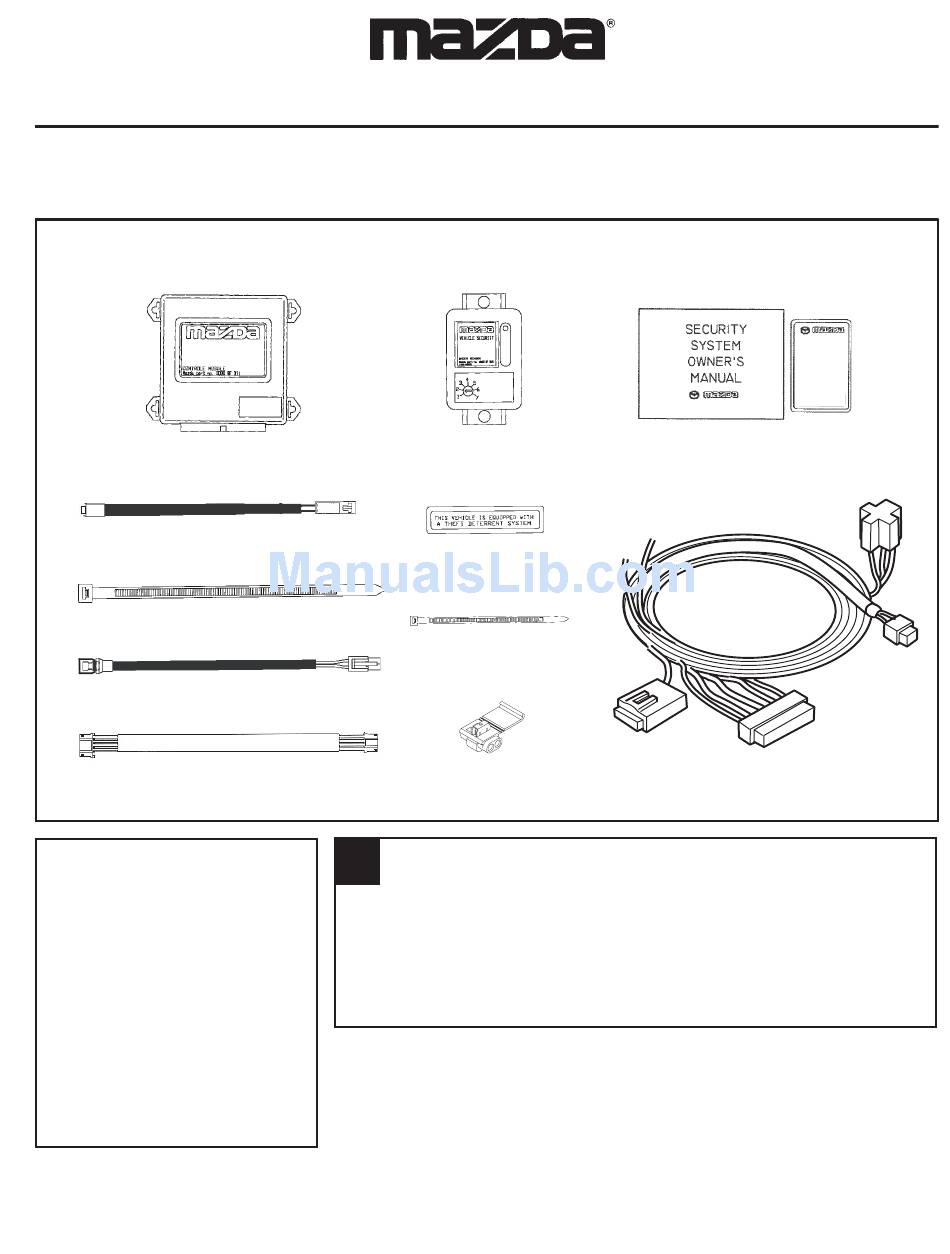

    GENUINE ACCESSORIES INSTALLATION INSTRUCTIONS PART NUMBER: APPLICABLE MODELS: SECURITY SYSTEM 0000-8F-D10 2006 > MX-5 ALL MODELS KIT CONTENTS WALLET CARD SHOCK SENSOR OWNER’S MANUAL & WALLET CARD CONTROL MODULE (QTY 1) 0000-8F-D11A 0000-8F-D15 SECURITY L.E.D. 0000-8F-D19 WINDOW DECAL (QTY 2)
