Sunbeam SGDJ901 User Manual

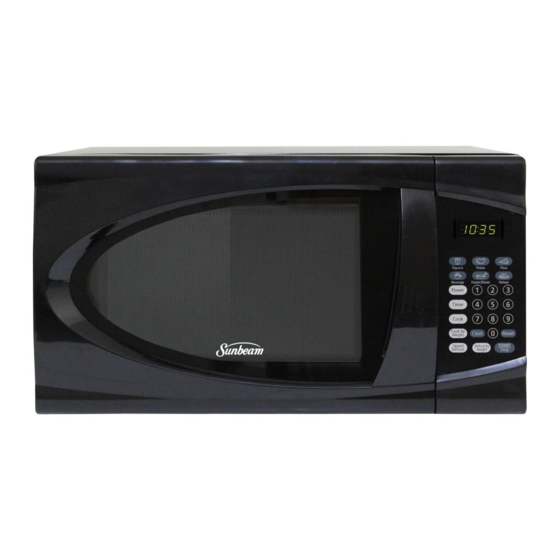

0.9 cu. ft. countertop microwave
Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual
0.9 Cu. Ft. Countertop Microwave
Model: SGDJ901/ SGDJ902
GLN092413
TABLE OF CONTENTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGDJ901 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunbeam SGDJ901

Summary of Contents for Sunbeam SGDJ901

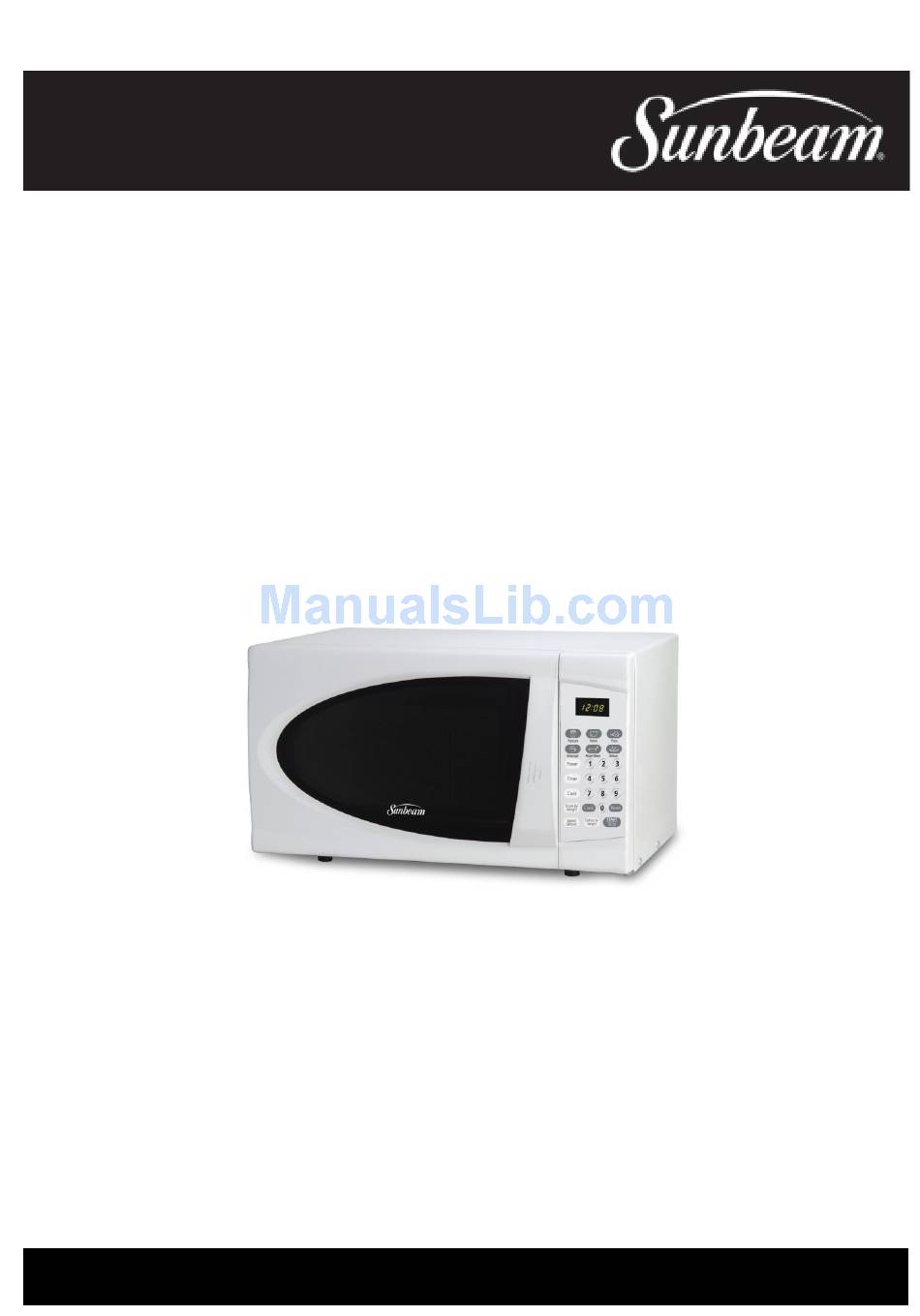

  • Page 1 User’s Manual 0.9 Cu. Ft. Countertop Microwave Model: SGDJ901/ SGDJ902 GLN092413 TABLE OF CONTENTS...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY INSTALLATION GUIDE GROUNDING INSTRUCTIONS PRODUCT DIAGRAM CONTROL PANEL INSTALLING THE TURNTABLE OPERATION INSTRUCTIONS SETTING THE CLOCK SETTING THE TIMER SETTING THE MICROWAVE SPEED DEFROST COOK BY WEIGHT DEFROST BY WEIGHT QUICK COOK SETTINGS POPCORN POTATO...

  • Page 3: Important Safety Instructions

    READ ALL SAFETY INSTRUCTIONS BEFORE USING THIS MICROWAVE WARNING - to reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy, basic safety precautions should be followed, including the following: 1. Read all instructions before using the microwave. 2.

  • Page 4: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    17. Use only thermometers specifically designed for microwaves. 18. Do not operate any heating or cooking under this microwave. 19. Be certain the glass tray and roller rings are in place when using the microwave. 20. Read and follow the specific “Precautions to Avoid Possible Exposure to Excessive Microwave Energy” section found below.

  • Page 5: Grounding Instructions

    6. Do not cover or block any openings on the microwave. Do not remove microwave feet. Do not operate the oven without the glass tray, roller support, and shaft in their proper positions. Make sure the power supply cord is undamaged and does not run under the microwave or over any hot or sharp surface.

  • Page 6: Control Panel

    Door Lock System Oven Window Roller Ring 4. Shaft Control Panel Wave Guide (Do not remove) 7. Glass Tray CONTROL PANEL  DISPLAY Cooking time, power, indicators and present time are displayed.  QUICK COOK BUTTONS Instant settings to cook popular foods. ...

  • Page 7: Operation Instructions

     Never place the glass tray upside down.  The glass tray should never be restricted.  Both the glass tray and turntable ring assembly must always be used during cooking.  All food and containers of food should always be placed on the glass tray for cooking.

  • Page 8: Speed Defrost

    B. Two-stage Cooking Some recipes require different stages of cooking at different temperatures. 1. SET STAGE 1: Follow steps 1 and 2 in “One-stage Cooking”. DO NOT TOUCH START/STOP 2. SET STAGE 2: Touch COOK then enter proper cooking time and (lower) power level. (Most 2-stage recipes use lower power for second stage.) 3.

  • Page 9: Defrost By Weight

    WEIGHT Beef 5 lb. 16 oz. Mutton 5 lb. 16 oz. Pork 5 lb. 4 oz. NOTE: ·Meat must be defrosted and at refrigerated temperature. ·Weight must be in pounds and ounces. ·Ounce weights less than 10 must be preceded by a 0. If label gives weight in pounds only, change the fraction of a pound to ounces using the following chart.

  • Page 10: Quick Cook Settings

    QUICK COOK SETTINGS For The QUICK COOK settings allow you to cook or reheat food automatically without entering power level or time. For smaller portions, simply touch the applicable pad and start. For larger portions, push the pad twice. FROZEN DINNER, BAKED POTATO and BEVERAGE allow you to cook multiple amounts of the same food. Simply touch pad once, and ENTER AMT appears in the display.

  • Page 11: Frozen Dinner

    2. Enter number of mugs by touching number pads from 1 to 4. 3. Touch START/STOP. FROZEN DINNER For one or two small (7-9 oz.) frozen dinners: Touch FROZEN DINNER once. For 1 entrée or 2 entrees, touch the number pad”1”or “2”. Touch START/STOP.

  • Page 12: Cooking Techniques

    Wax paper -- Use as a cover to prevent splattering. Thermometers -- Use only those labeled “Microwave Safe” and follow all directions. Check the food in several places. Conventional thermometers may be used on microwaved food once the food has been removed from the microwave. LIMITED USE Aluminum foil -- Use narrow strips of foil to prevent overcooking exposed areas.

  • Page 13: Cleaning And Care

     Use only small amounts of aluminum foil, as larger amounts may damage your microwave. TURNING  Turn foods over midway through cooking to expose all parts to microwave energy.  This is especially important when cooking large foods such as roasts. STANDING ...

  • Page 14: Before Calling For Service

    microwave in a clean condition could lead to deterioration of surfaces that could adversely affect the life of the unit and could possibly result in a hazardous situation. 12. Please do not dispose of this appliance into a regular garbage receptacle. Please check to see where you can dispose such appliances.
  • Page 15 © 2013 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. ® Sunbeam logo is a registered trademark of Sunbeam Products, Inc. used under license. Distributed by Guangdong Galanz Microwave Oven and Electrical Appliances Manufacturing Co., Ltd., Shunde, Foshan, Guangdong, 528305, China.

This manual is also suitable for:

Sgdj902
